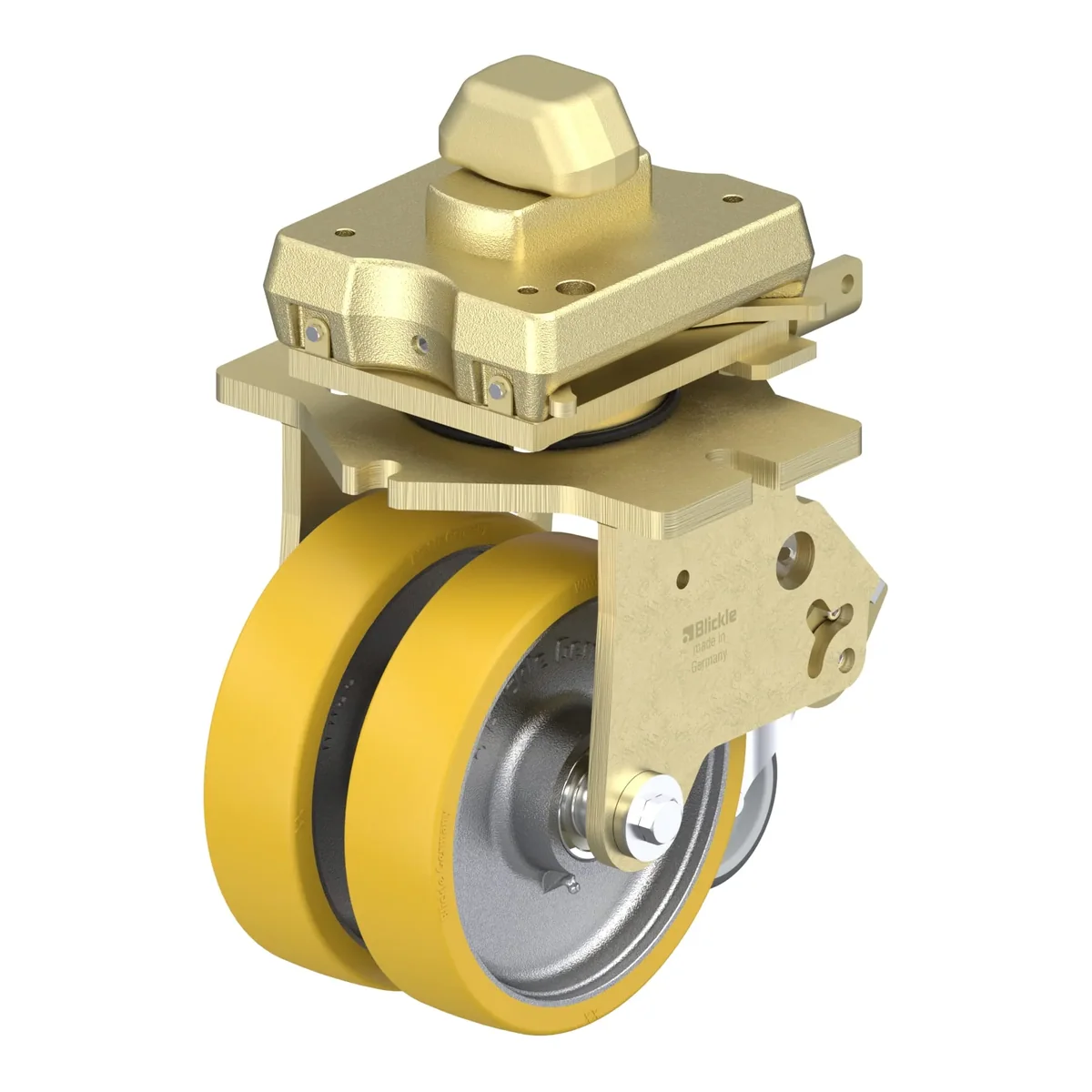

LSDC-GTH 250x60K-RI4-SU – dvostruki točkić Blickle

Šifra 1005182

LSDC-GTH 250x60K-RI4-SU

Dvostruki točkić, Blickle, Made in Germany

Ukratko: LSDC-GTH 250x60K-RI4-SU je dvostruki točkić Blickle promjera 250 mm, širine 60 mm, nosivosti 2700 kg pri 4 km/h (statički 6750 kg). Cijena je na upit.

Welded steel heavy-duty twin wheel swivel castor, heavy-duty swivel head, with Twistlock, with directional lock, with support castor, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre

Cijena na upit

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla1005182
EAN4047526444822
Promjer točka250 mm
Širina točka60 mm
Nosivost pri 4 km/h2700 kg
Statička nosivost6750 kg
Offset50 mm
Ne ostavlja tragoveda

Nosač

  • particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
  • axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
  • bolted and secured welded central kingpin, extremely strong
  • dust and splash-proof
  • Grease nipple
  • with Twistlock, suitable for ISO 1611 container corner fittings

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
  • wheel centre: rugged grey cast iron
  • with grease nipple, lacquered, colour silver

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
