Šifra 1005294

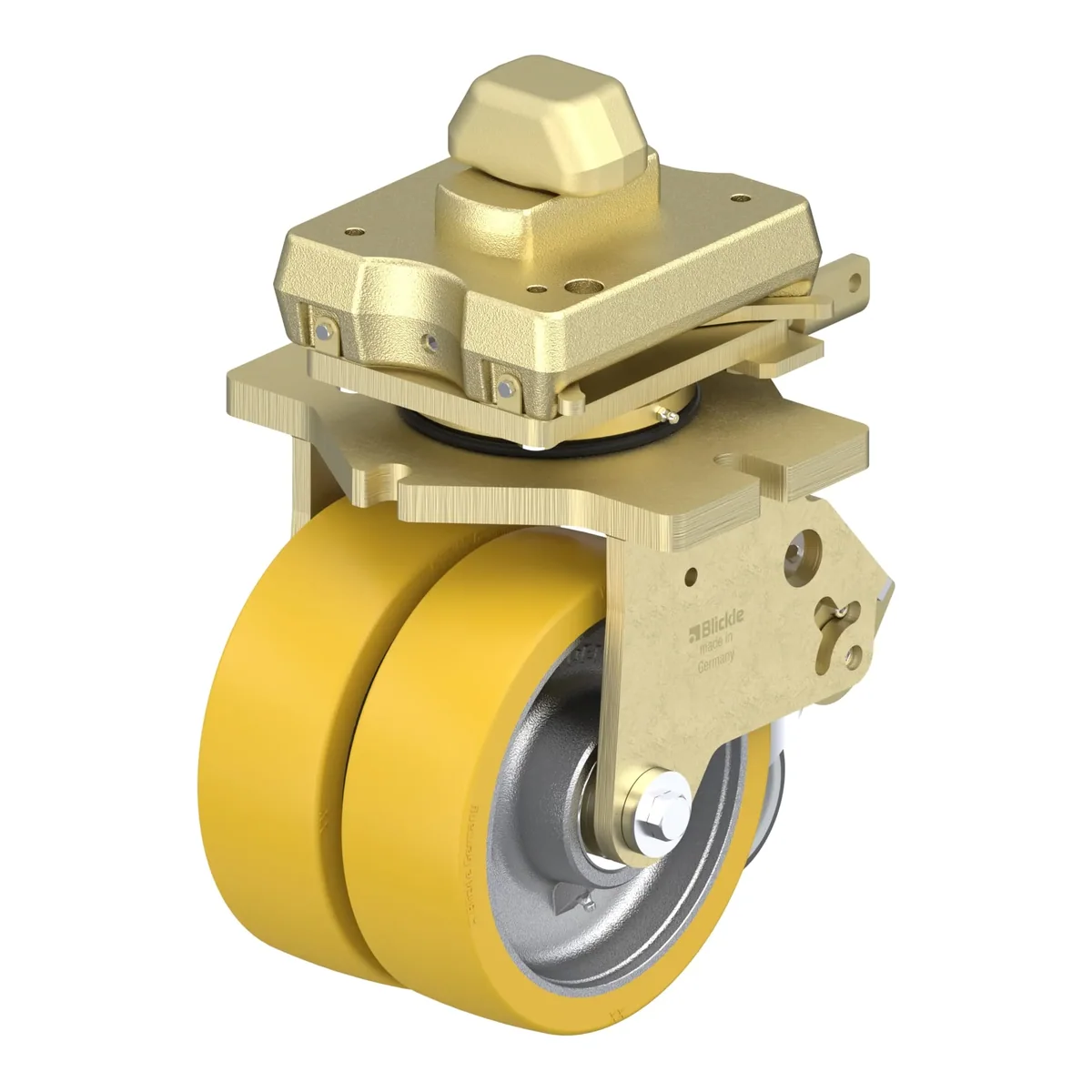

LSDC-GTH 250x80K-RI4-SU-02
Dvostruki točkić, Blickle, Made in Germany
Ukratko: LSDC-GTH 250x80K-RI4-SU-02 je dvostruki točkić Blickle promjera 250 mm, širine 80 mm, nosivosti 3700 kg pri 4 km/h (statički 9250 kg). Cijena je na upit.
Welded steel heavy-duty twin wheel swivel castor, heavy-duty swivel head, with Twistlock, with directional lock, with support castor, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with cast iron wheel centre
Cijena na upit
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 1005294 |
|---|---|
| EAN | 4047526444839 |
| Promjer točka | 250 mm |
| Širina točka | 80 mm |
| Nosivost pri 4 km/h | 3700 kg |
| Statička nosivost | 9250 kg |
| Offset | 50 mm |
| Ne ostavlja tragove | da |
Nosač
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- Grease nipple
- with Twistlock, suitable for ISO 1611 container corner fittings
Točak
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
- wheel centre: rugged grey cast iron
- with grease nipple, lacquered, colour silver
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
