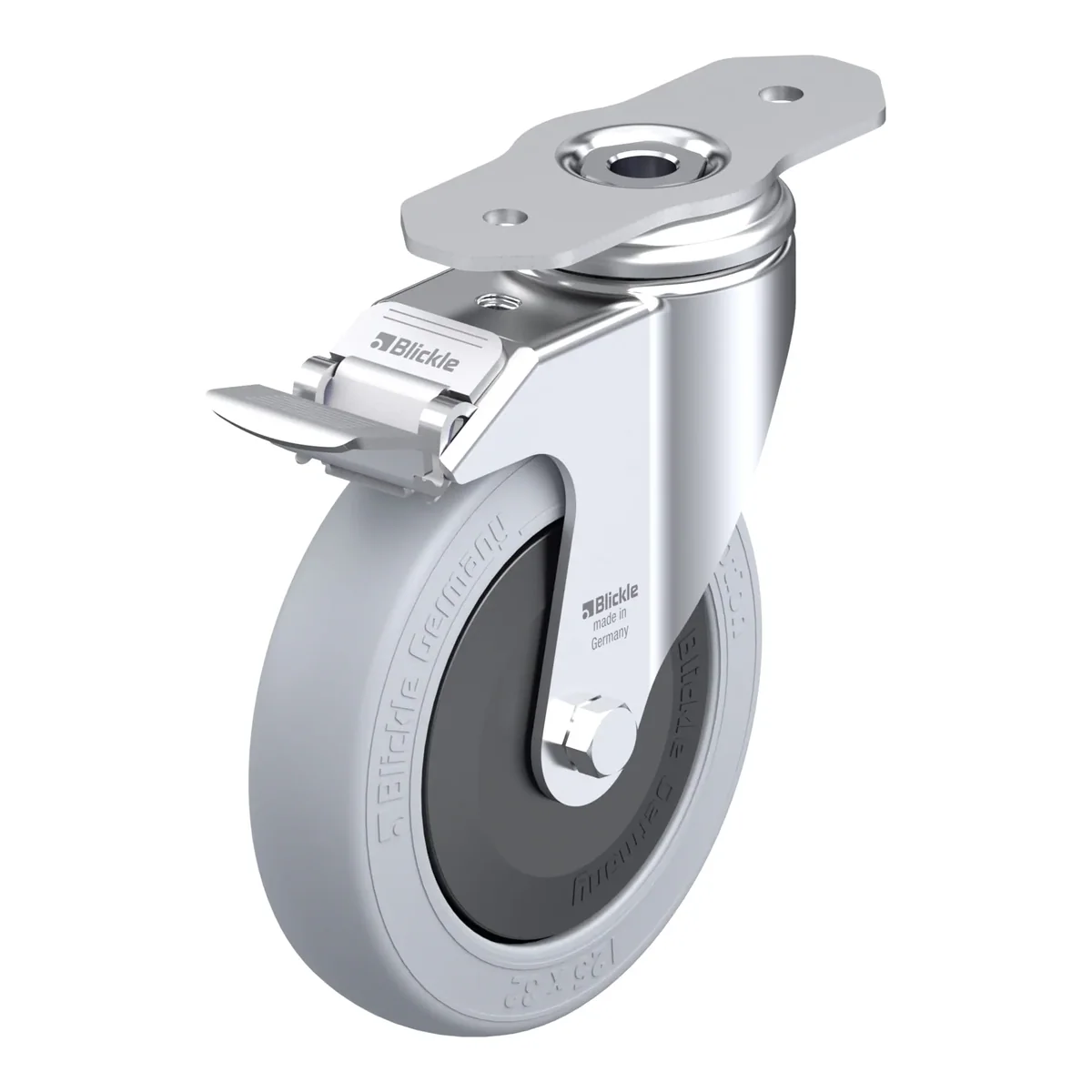

LKPA-POES 127KF-29-FI-SG – okretni točkić Blickle

Šifra 978690

LKPA-POES 127KF-29-FI-SG

Okretni točkić, Blickle, Made in Germany

Ukratko: LKPA-POES 127KF-29-FI-SG je okretni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 161 mm. Cijena je 72.29 KM s PDV-om.

Light duty swivel caster, with top plate fitting, with brake system 'stop-fix', plate suitable for standard aluminium profiles,wheel with “Blickle SoftMotion” soft rubber tire, with nylon wheel center, non-marking, gray, with synthetic thread guard, large

72.29 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla978690
EAN4047526428143
Promjer točka125 mm
Širina točka32 mm
Ukupna visina161 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Veličina ploče120 x 40 mm
Razmak rupa85.0 x 10.0 mm
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber "Blickle SoftMotion", hardness 55 Shore A, colour grey, non-marking
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • with synthetic thread guard, large
  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
