Šifra 977256

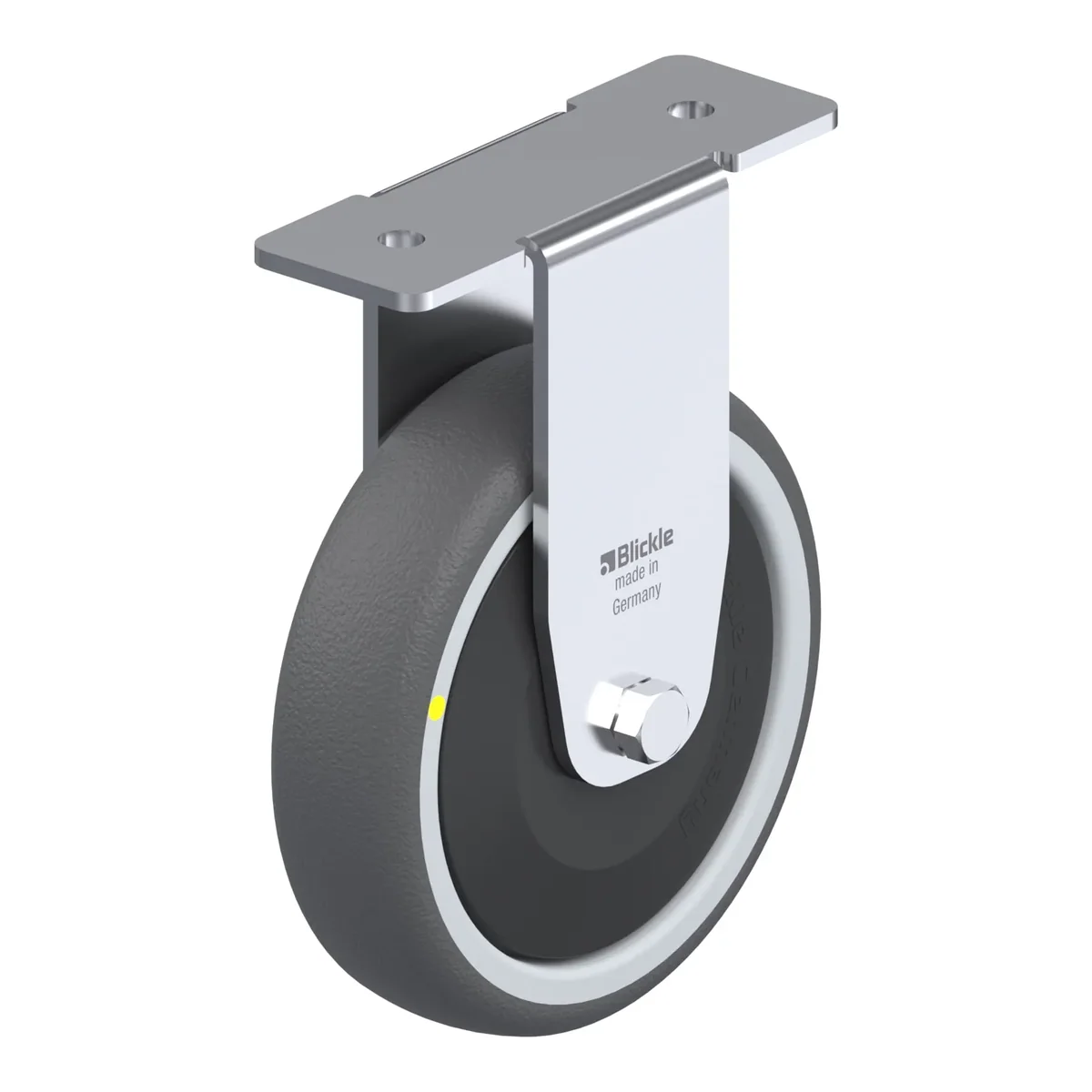

BKPA-PATH 126KF-29-ELS
Fiksni točkić, Blickle, Made in Germany
Ukratko: BKPA-PATH 126KF-29-ELS je fiksni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 161 mm. Cijena je 86.40 KM s PDV-om.
Light duty fixed caster, with top plate fitting, plate suitable for standard aluminium profiles, wheel with thermoplastic polyurethane tread, with nylon wheel center, with synthetic thread guard, large, electrically conductive, N on-marking
86.40 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 977256 |
|---|---|
| EAN | 4047526427788 |
| Promjer točka | 125 mm |
| Širina točka | 32 mm |
| Ukupna visina | 161 mm |
| Nosivost pri 4 km/h | 120 kg |
| Statička nosivost | 300 kg |
| Veličina ploče | 120 x 40 mm |
| Razmak rupa | 85.0 x 10.0 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour silver grey
Dodatne karakteristike
- with synthetic thread guard, large
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
