LKRXA-PATH 101KFD – okretni točkić Blickle

Šifra 760886

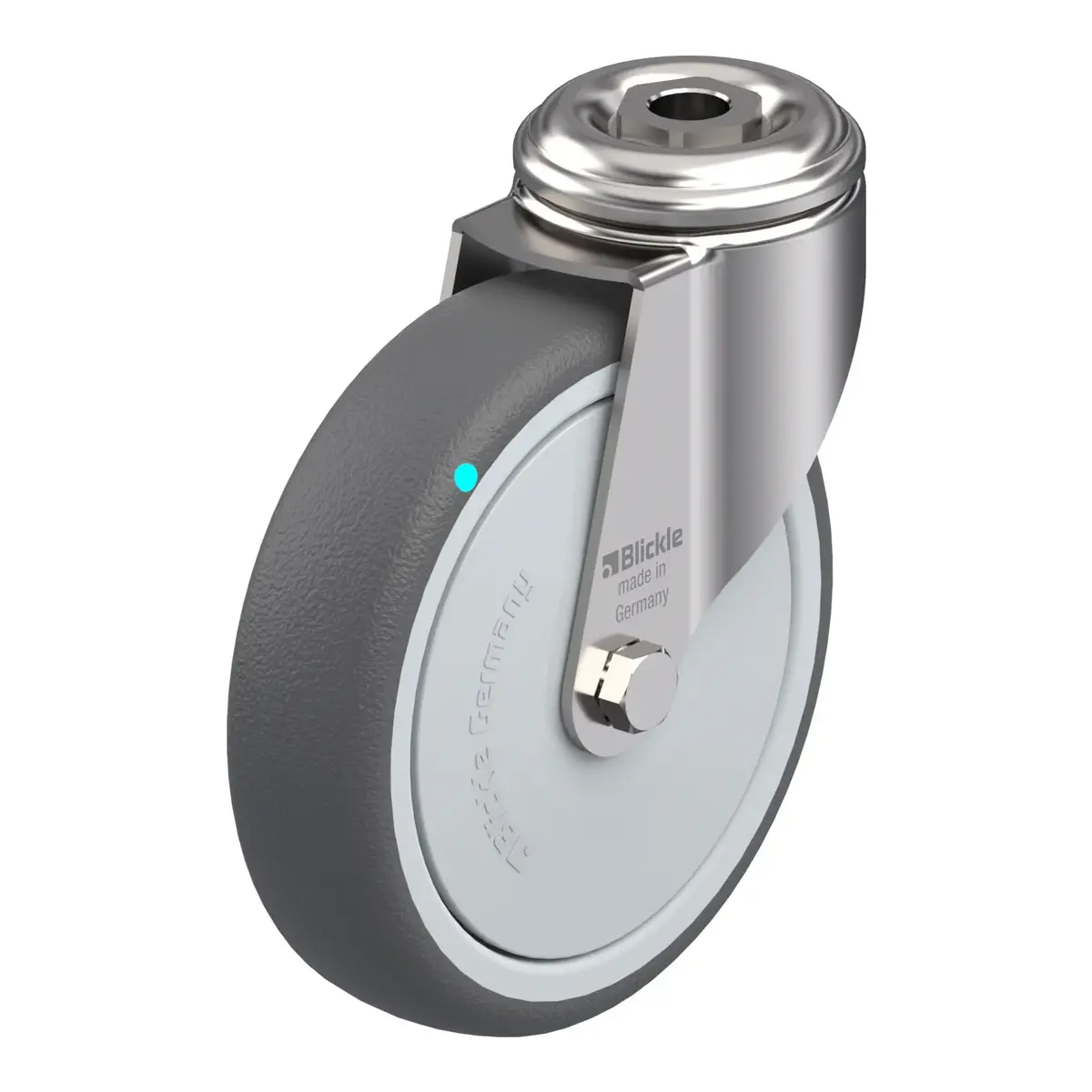

LKRXA-PATH 101KFD

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRXA-PATH 101KFD je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 133 mm. Cijena je 81.70 KM s PDV-om.

Stainless steel light duty swivel castor, with bolt hole, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals

81.70 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla760886
EAN4047526119669
Promjer točka100 mm
Širina točka32 mm
Ukupna visina133 mm
Nosivost pri 4 km/h120 kg
Statička nosivost300 kg
Offset40 mm
Ne ostavlja tragoveda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
