Šifra 946653
LER-PO 160G-FI-ELS-FA

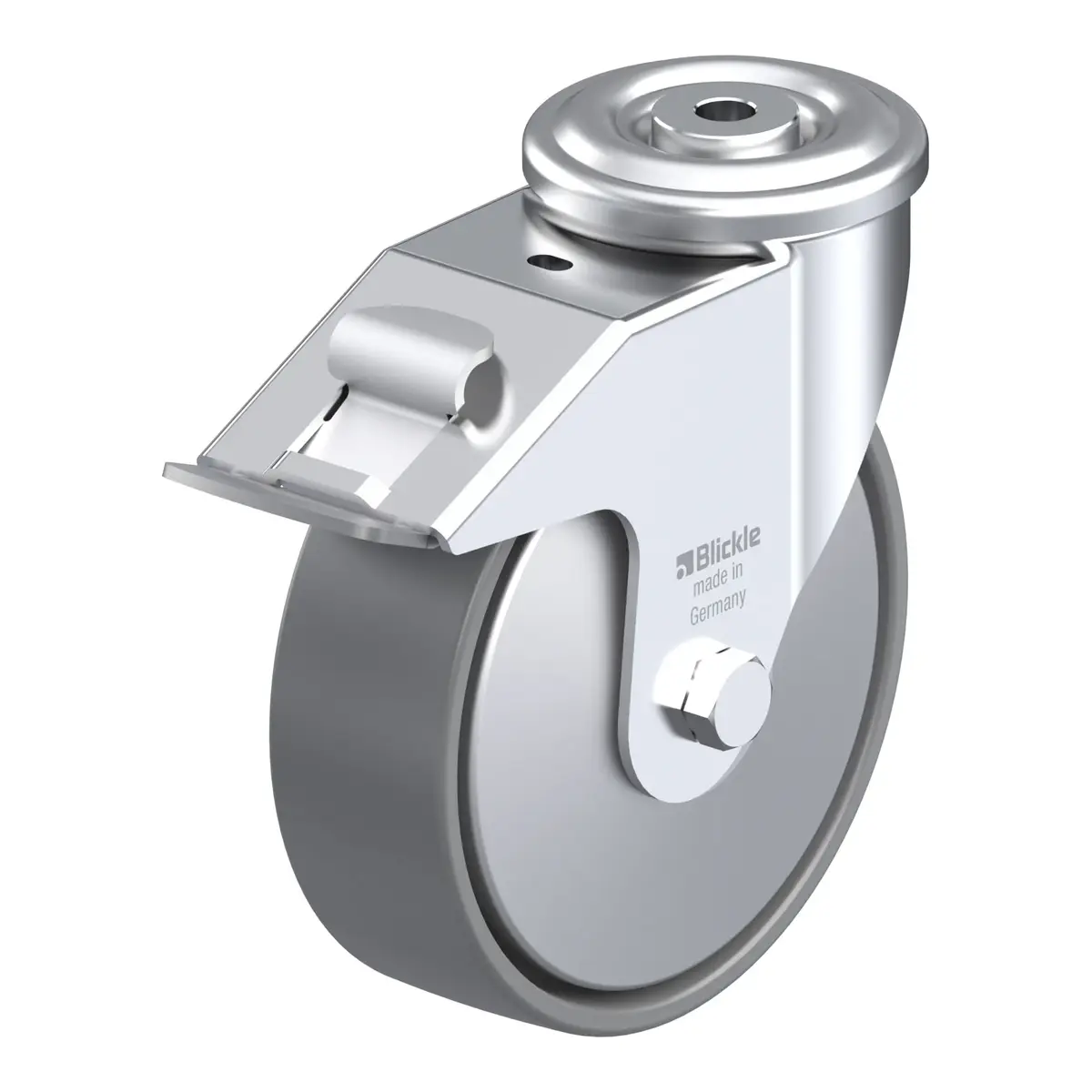

Okretni točkić, Blickle, Made in Germany
Ukratko: LER-PO 160G-FI-ELS-FA je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 195 mm. Cijena je 171.19 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, with brake system 'stop-fix', nylon wheel, with steel thread guard, electrically conductive, non-marking
171.19 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 946653 |
|---|---|
| EAN | 4047526370633 |
| Promjer točka | 160 mm |
| Širina točka | 50 mm |
| Ukupna visina | 195 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Offset | 46 mm |
| Ne ostavlja tragove | da |
| ESD zaštita | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
