Šifra 224360
LKRXA-VPA 125G

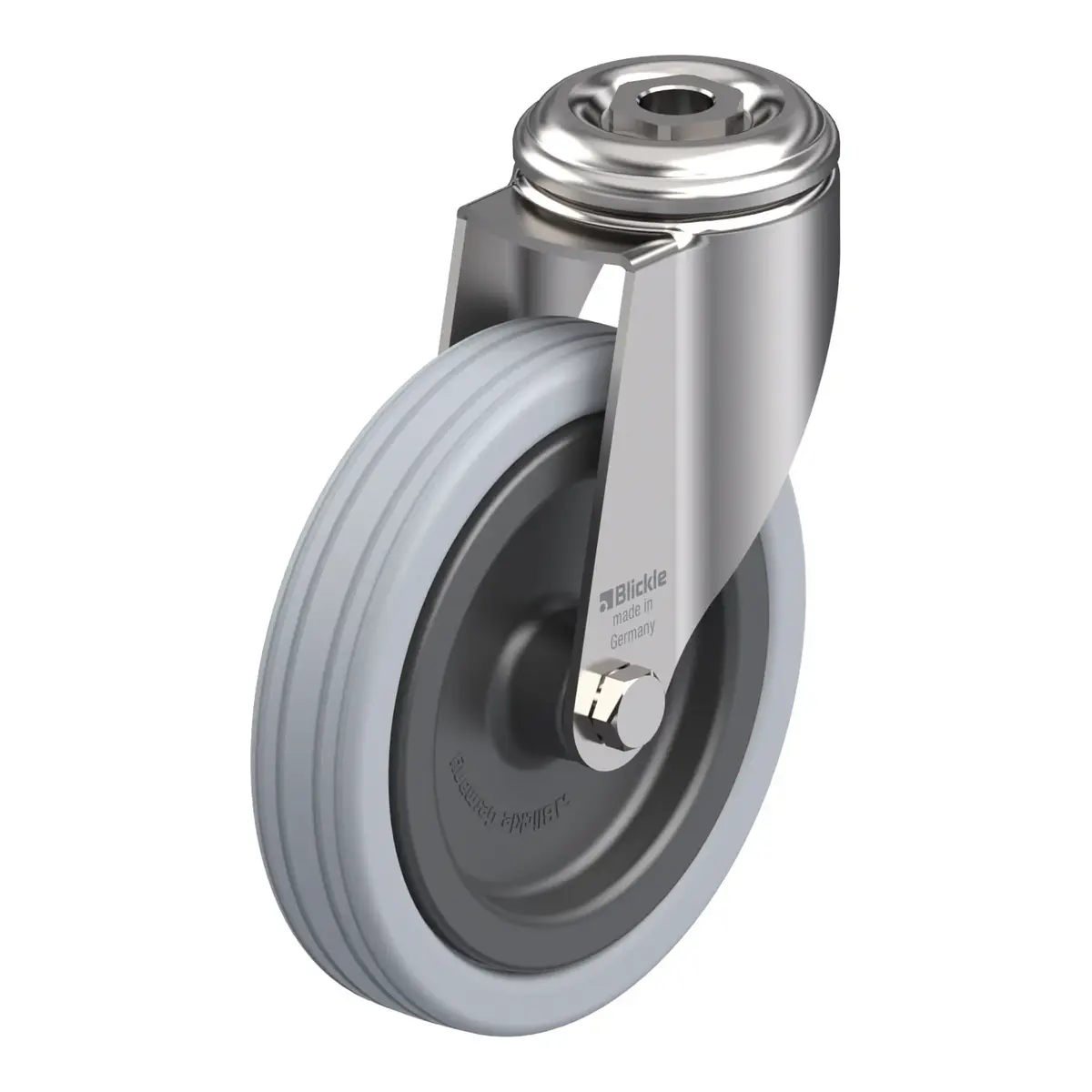

Okretni točkić, Blickle, Made in Germany
Ukratko: LKRXA-VPA 125G je okretni točkić Blickle promjera 125 mm, širine 25 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 158 mm. Cijena je 77.43 KM s PDV-om.
Stainless steel light duty swivel castor, with bolt hole, wheel, with solid rubber tyres, with synthetic rim
77.43 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 224360 |
|---|---|
| EAN | 4047526224363 |
| Promjer točka | 125 mm |
| Širina točka | 25 mm |
| Ukupna visina | 158 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Offset | 40 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
