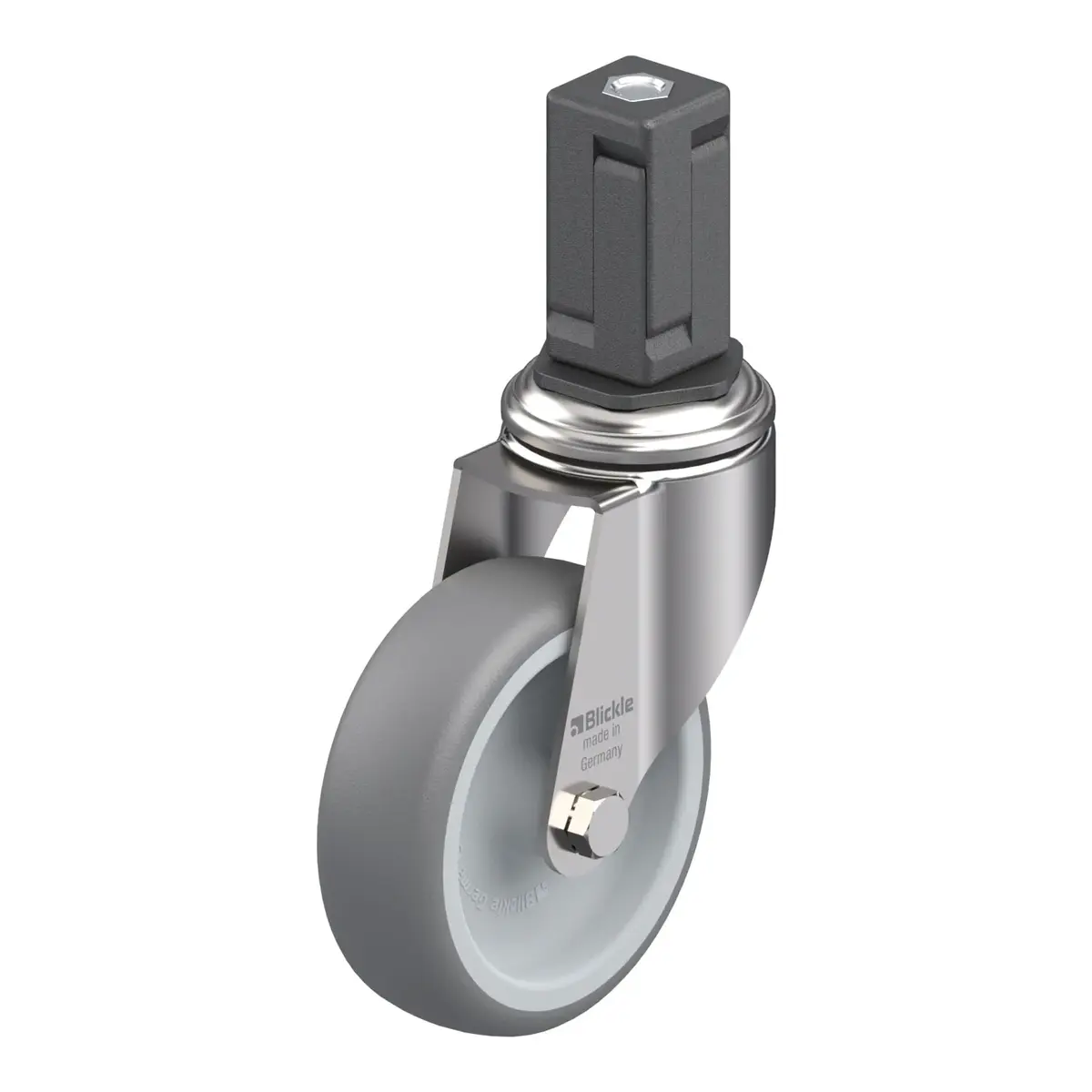

LKRXA-TPA 101G-11-EXV15 – okretni točkić Blickle

Šifra 853164

LKRXA-TPA 101G-11-EXV15

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRXA-TPA 101G-11-EXV15 je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 110 kg pri 4 km/h (statički 275 kg). Ukupna visina je 136 mm. Cijena je 89.05 KM s PDV-om.

Stainless steel light duty swivel castor, with bolt hole, with synthetic expander, wheel, with thermoplastic rubber tread, with polypropylene wheel centre

89.05 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853164
EAN4047526201920
Promjer točka100 mm
Širina točka32 mm
Ukupna visina136 mm
Nosivost pri 4 km/h110 kg
Statička nosivost275 kg
Offset40 mm
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour silver grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
