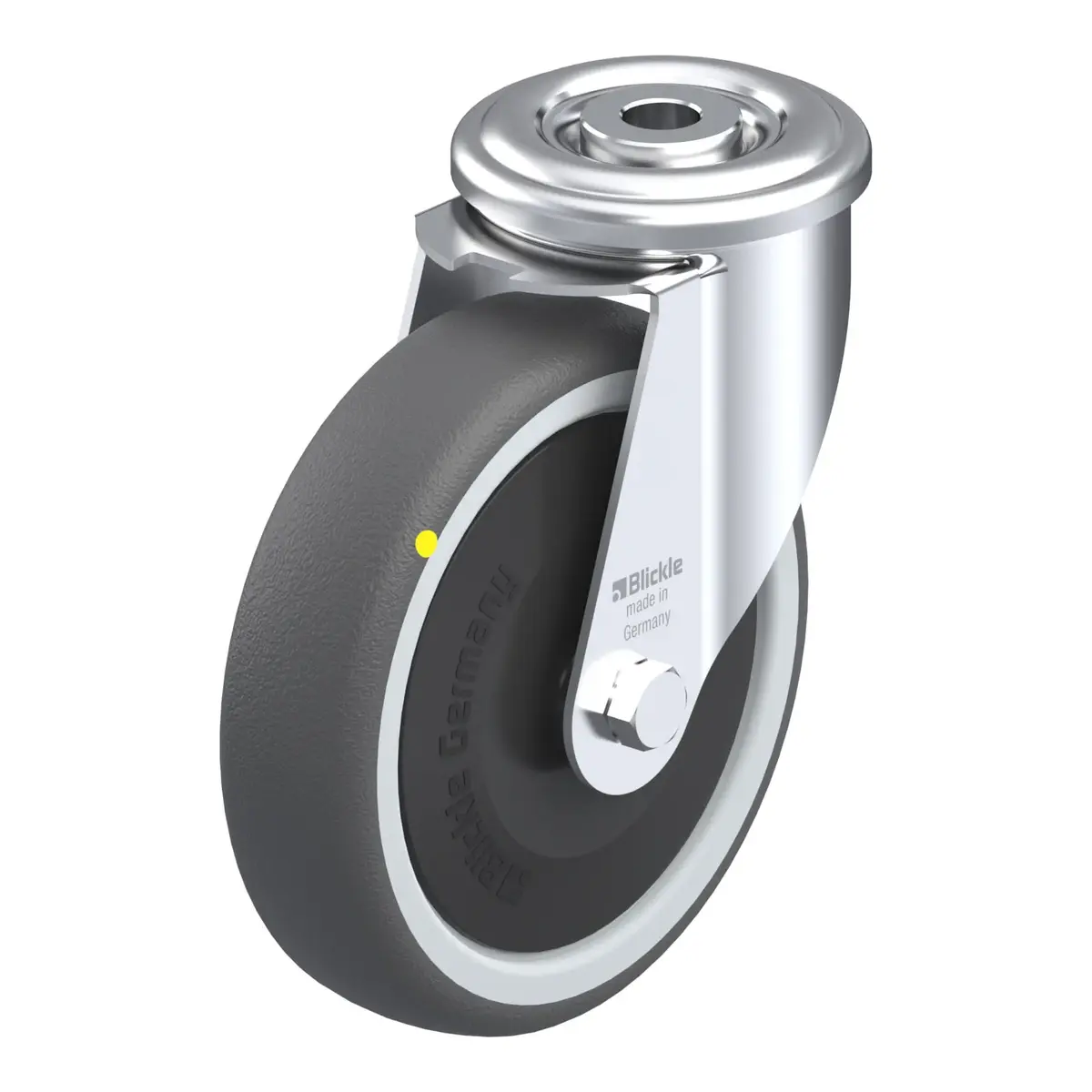

LER-PATH 125KF-ELS – okretni točkić Blickle

Šifra 852184

LER-PATH 125KF-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LER-PATH 125KF-ELS je okretni točkić Blickle promjera 125 mm, širine 32 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 150 mm. Cijena je 80.00 KM s PDV-om.

Pressed steel swivel castor, with bolt hole, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, electrically conductive, non-marking

80.00 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla852184
EAN4047526188856
Promjer točka125 mm
Širina točka32 mm
Ukupna visina150 mm
Nosivost pri 4 km/h150 kg
Statička nosivost375 kg
Offset38 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • with synthetic thread guard, large
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
