Šifra 562512
LER-PATH 80G

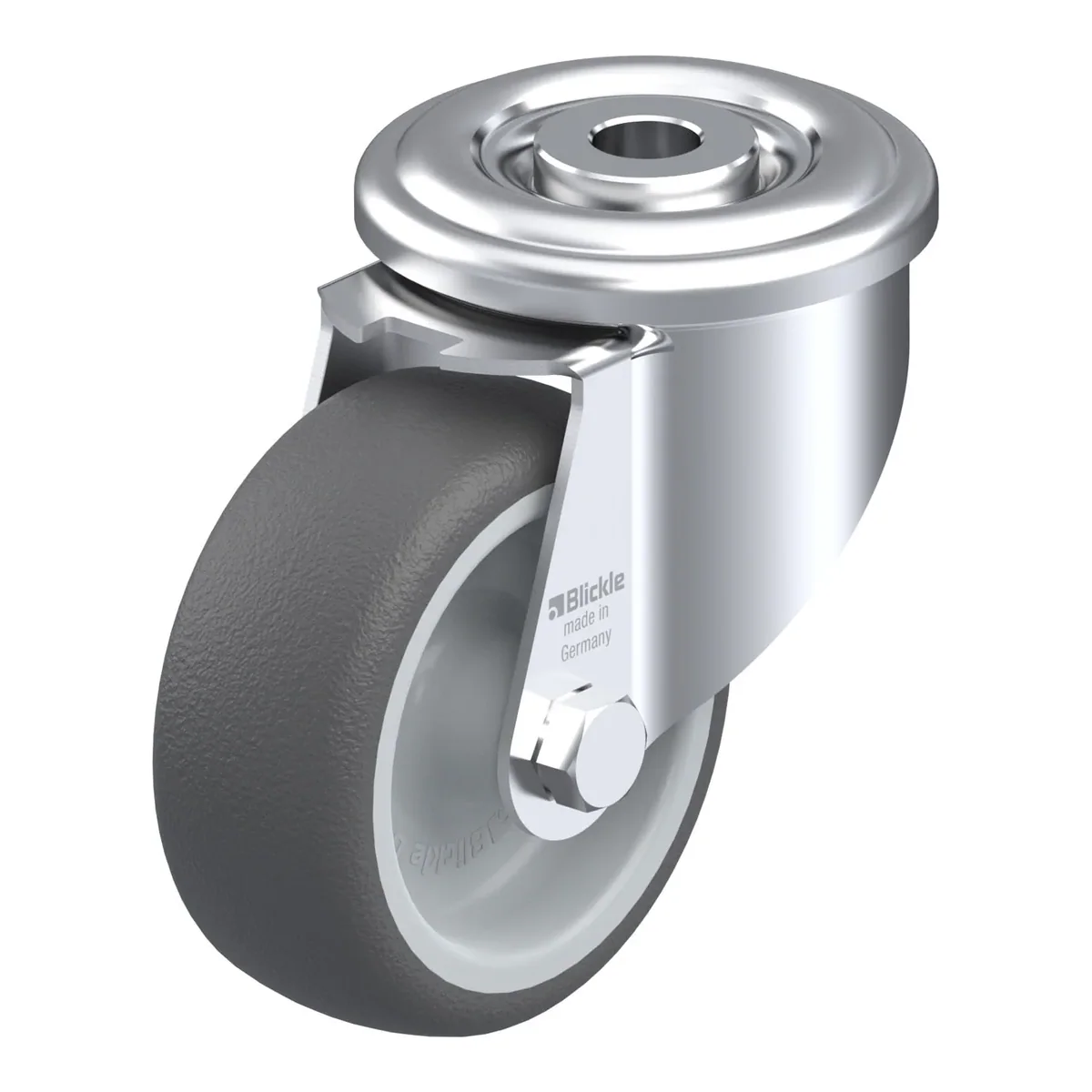

Okretni točkić, Blickle, Made in Germany
Ukratko: LER-PATH 80G je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 102 mm. Cijena je 33.54 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, wheel, with thermoplastic polyurethane tread, with nylon wheel centre
33.54 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 562512 |
|---|---|
| EAN | 4047526562519 |
| Promjer točka | 80 mm |
| Širina točka | 32 mm |
| Ukupna visina | 102 mm |
| Nosivost pri 4 km/h | 150 kg |
| Statička nosivost | 375 kg |
| Offset | 38 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour silver grey
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
