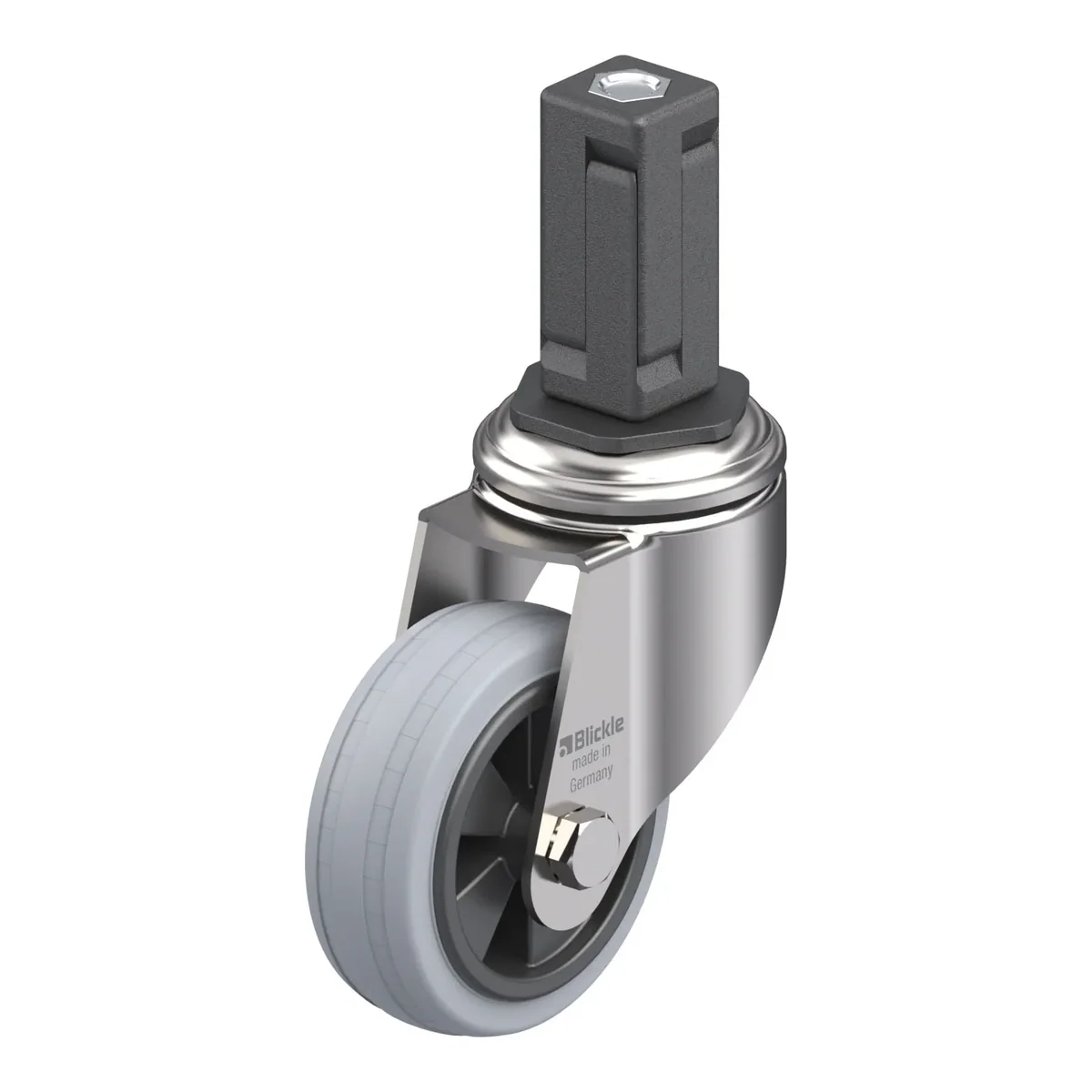

LKRXA-VPA 80G-11-EXV14 – okretni točkić Blickle

Šifra 853253

LKRXA-VPA 80G-11-EXV14

Okretni točkić, Blickle, Made in Germany

Ukratko: LKRXA-VPA 80G-11-EXV14 je okretni točkić Blickle promjera 80 mm, širine 25 mm, nosivosti 80 kg pri 4 km/h (statički 200 kg). Ukupna visina je 111 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 88.28 KM s PDV-om.

Stainless steel light duty swivel castor, with bolt hole, with synthetic expander, wheel, with solid rubber tyres, with synthetic rim

88.28 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853253
EAN4047526203245
Promjer točka80 mm
Širina točka25 mm
Ukupna visina111 mm
Nosivost pri 4 km/h80 kg
Statička nosivost200 kg
Offset40 mm
Tvrdoća gazišta80 Shore A
Radna temperatura-20 °C do 60 °C
Težina0.5 kg
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
  • rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
