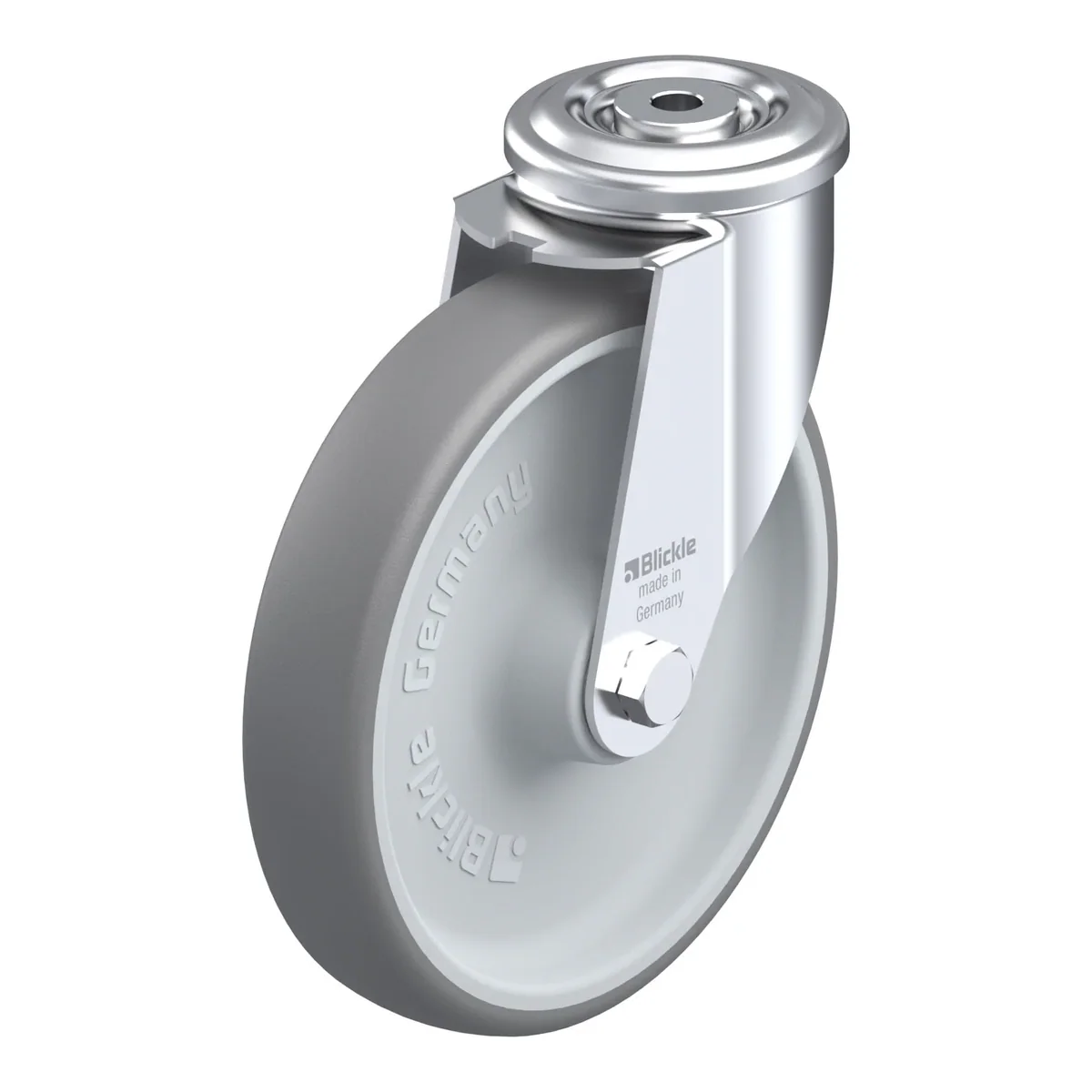

LER-TPA 200R – okretni točkić Blickle

Šifra 757057

LER-TPA 200R

Okretni točkić, Blickle, Made in Germany

Ukratko: LER-TPA 200R je okretni točkić Blickle promjera 200 mm, širine 40 mm, nosivosti 250 kg pri 4 km/h (statički 625 kg). Ukupna visina je 235 mm. Cijena je 109.71 KM s PDV-om.

Pressed steel swivel castor, with bolt hole, wheel, with thermoplastic rubber tread, with polypropylene wheel centre

109.71 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla757057
EAN4047526098919
Promjer točka200 mm
Širina točka40 mm
Ukupna visina235 mm
Nosivost pri 4 km/h250 kg
Statička nosivost625 kg
Offset54 mm
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour silver grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
