Šifra 762920
LER-PPN 80G-FA

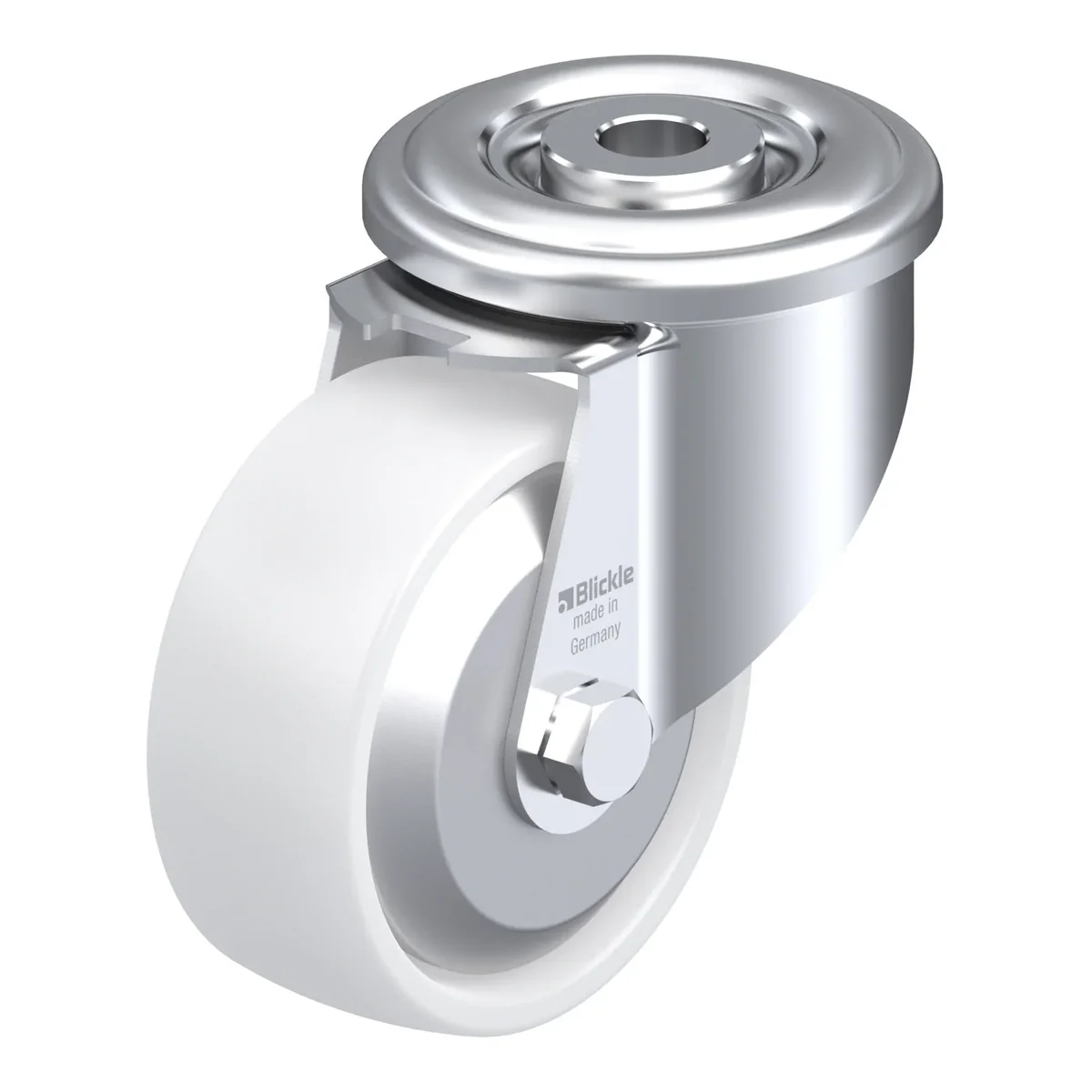

Okretni točkić, Blickle, Made in Germany
Ukratko: LER-PPN 80G-FA je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 120 kg pri 4 km/h (statički 300 kg). Ukupna visina je 102 mm. Cijena je 39.57 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, polypropylene wheel, with steel thread guard
39.57 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 762920 |
|---|---|
| EAN | 4047526121693 |
| Promjer točka | 80 mm |
| Širina točka | 32 mm |
| Ukupna visina | 102 mm |
| Nosivost pri 4 km/h | 120 kg |
| Statička nosivost | 300 kg |
| Offset | 38 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality polypropylene, impact resistant, hardness 60 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
