Šifra 762887
LER-PPN 100G

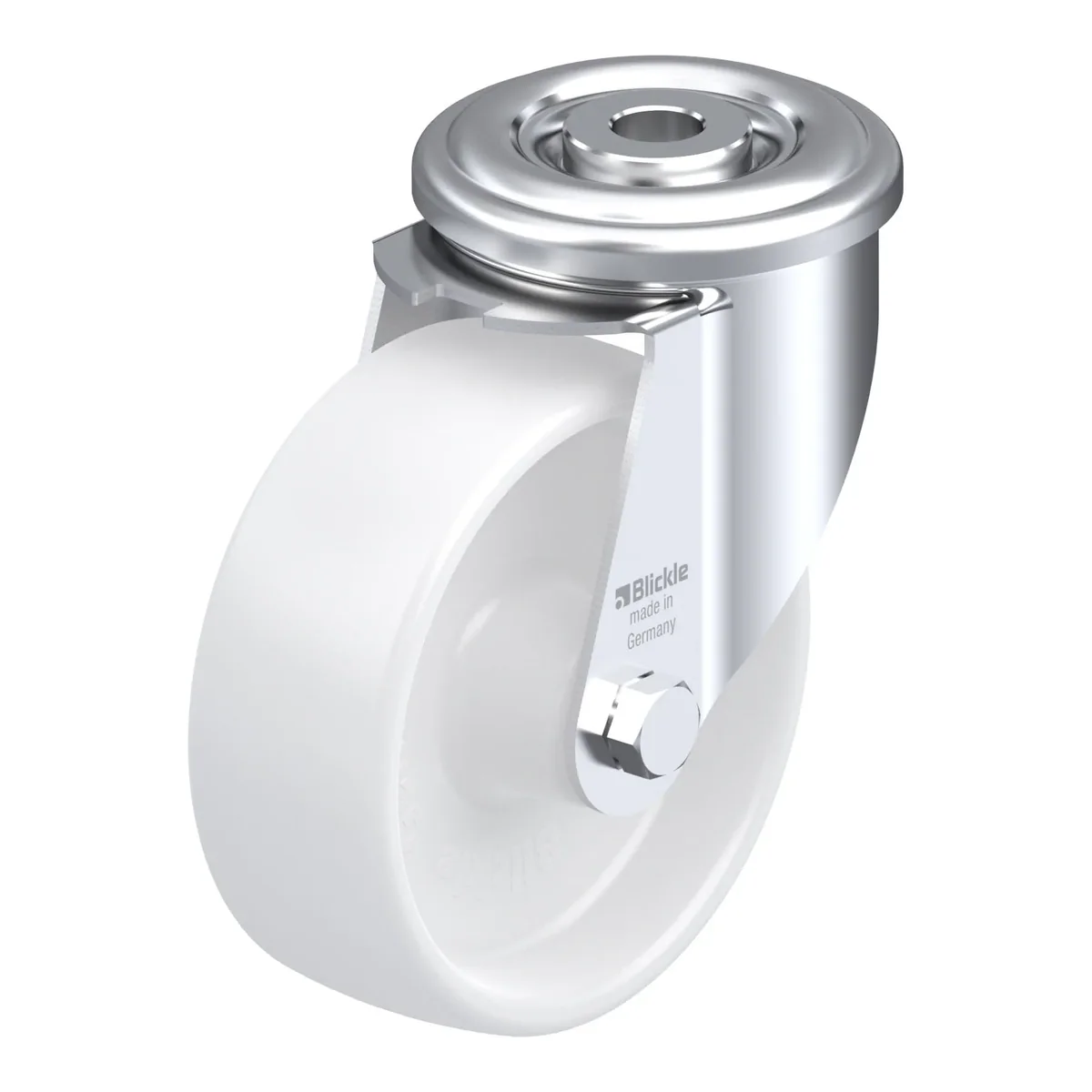

Okretni točkić, Blickle, Made in Germany
Ukratko: LER-PPN 100G je okretni točkić Blickle promjera 100 mm, širine 37 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 125 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 34.13 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, polypropylene wheel
34.13 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 762887 |
|---|---|
| EAN | 4047526098247 |
| Promjer točka | 100 mm |
| Širina točka | 37 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 150 kg |
| Statička nosivost | 375 kg |
| Offset | 36 mm |
| Tvrdoća gazišta | 60 Shore A |
| Radna temperatura | -20 °C do 60 °C |
| Težina | 0.5 kg |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality polypropylene, impact resistant, hardness 60 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
