Šifra 729186

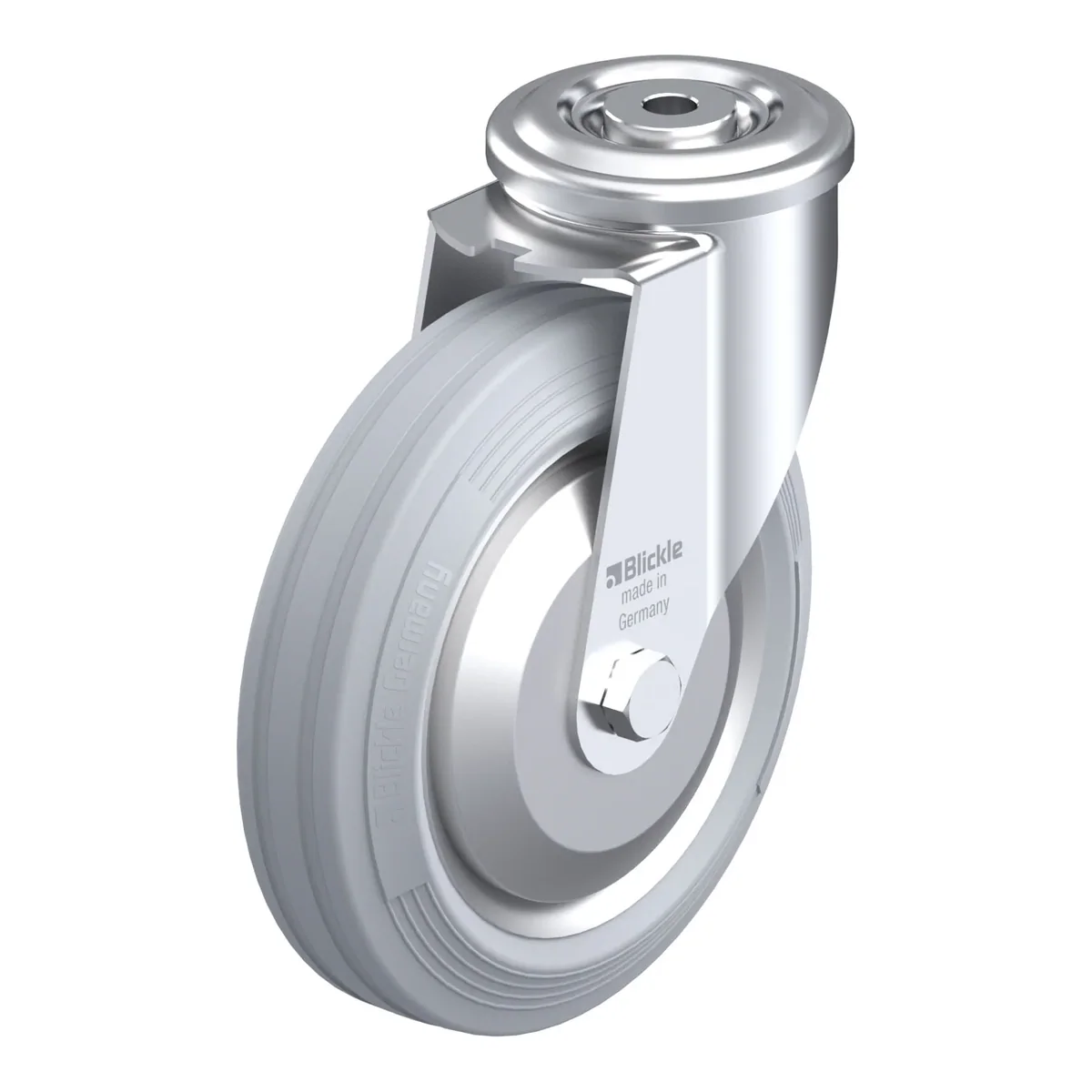

LER-VE 180R-SG-FA
Okretni točkić, Blickle, Made in Germany
Ukratko: LER-VE 180R-SG-FA je okretni točkić Blickle promjera 180 mm, širine 50 mm, nosivosti 170 kg pri 4 km/h (statički 425 kg). Ukupna visina je 215 mm. Cijena je 119.50 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, wheel, with standard solid rubber tyre, with pressed steel rim, non-marking, grey, with steel thread guard
119.50 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 729186 |
|---|---|
| EAN | 4047526729189 |
| Promjer točka | 180 mm |
| Širina točka | 50 mm |
| Ukupna visina | 215 mm |
| Nosivost pri 4 km/h | 170 kg |
| Statička nosivost | 425 kg |
| Offset | 50 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
- rim: pressed steel, zinc-plated, blue-passivated, Cr6-free
Dodatne karakteristike
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
