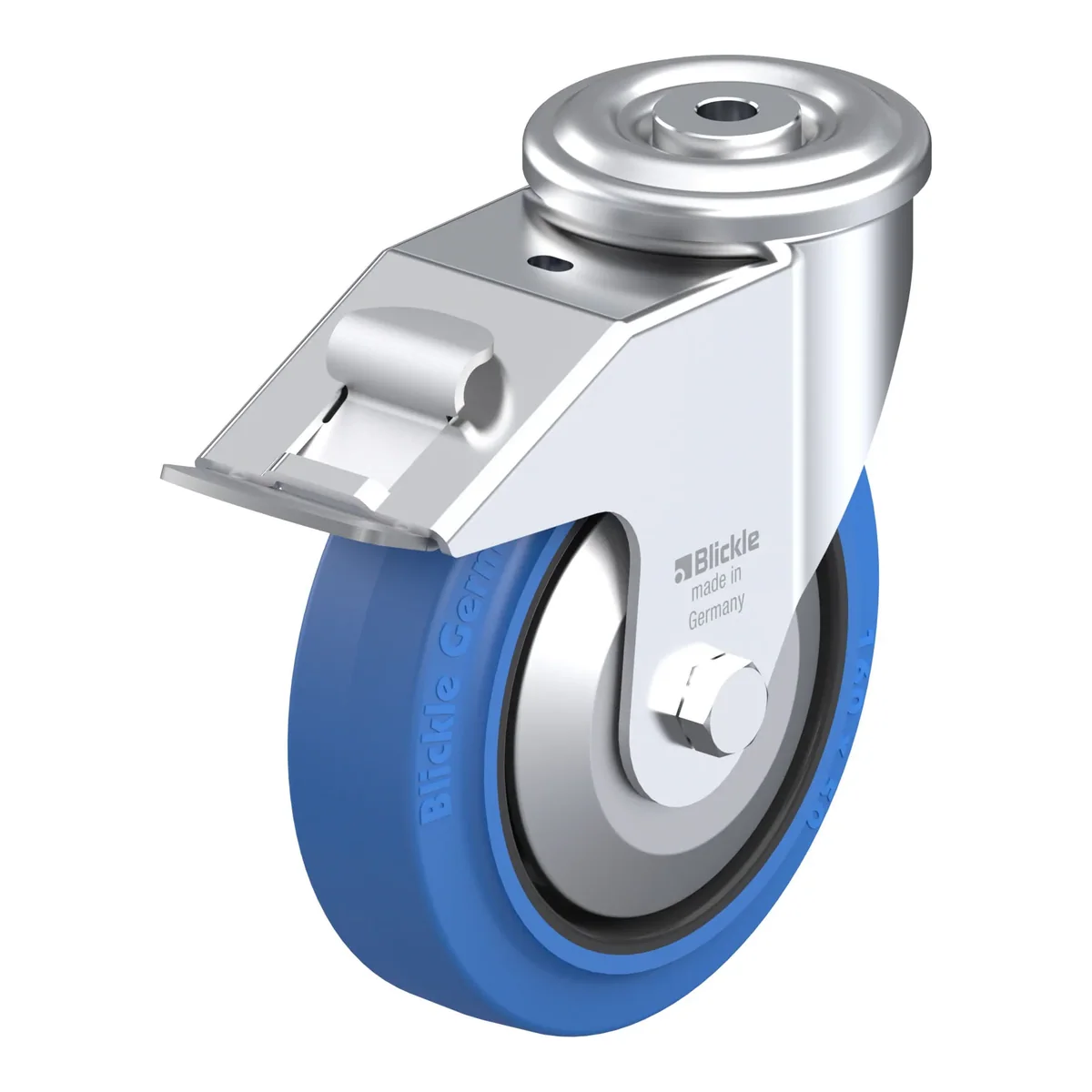

LER-POEV 160R-FI-SB-FA – okretni točkić Blickle

Šifra 941919

LER-POEV 160R-FI-SB-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LER-POEV 160R-FI-SB-FA je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 195 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 158.63 KM s PDV-om.

Pressed steel swivel castor, with bolt hole, with brake system 'stop-fix', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, non-marking, blue, with steel thread guard

158.63 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla941919
EAN4047526420277
Promjer točka160 mm
Širina točka50 mm
Ukupna visina195 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Offset48 mm
Tvrdoća gazišta65 Shore A
Radna temperatura-25 °C do 80 °C
Težina2.3 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour blue, non-marking
  • wheel centre: high-quality nylon 6, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
