Šifra 601773
LER-VPP 180R

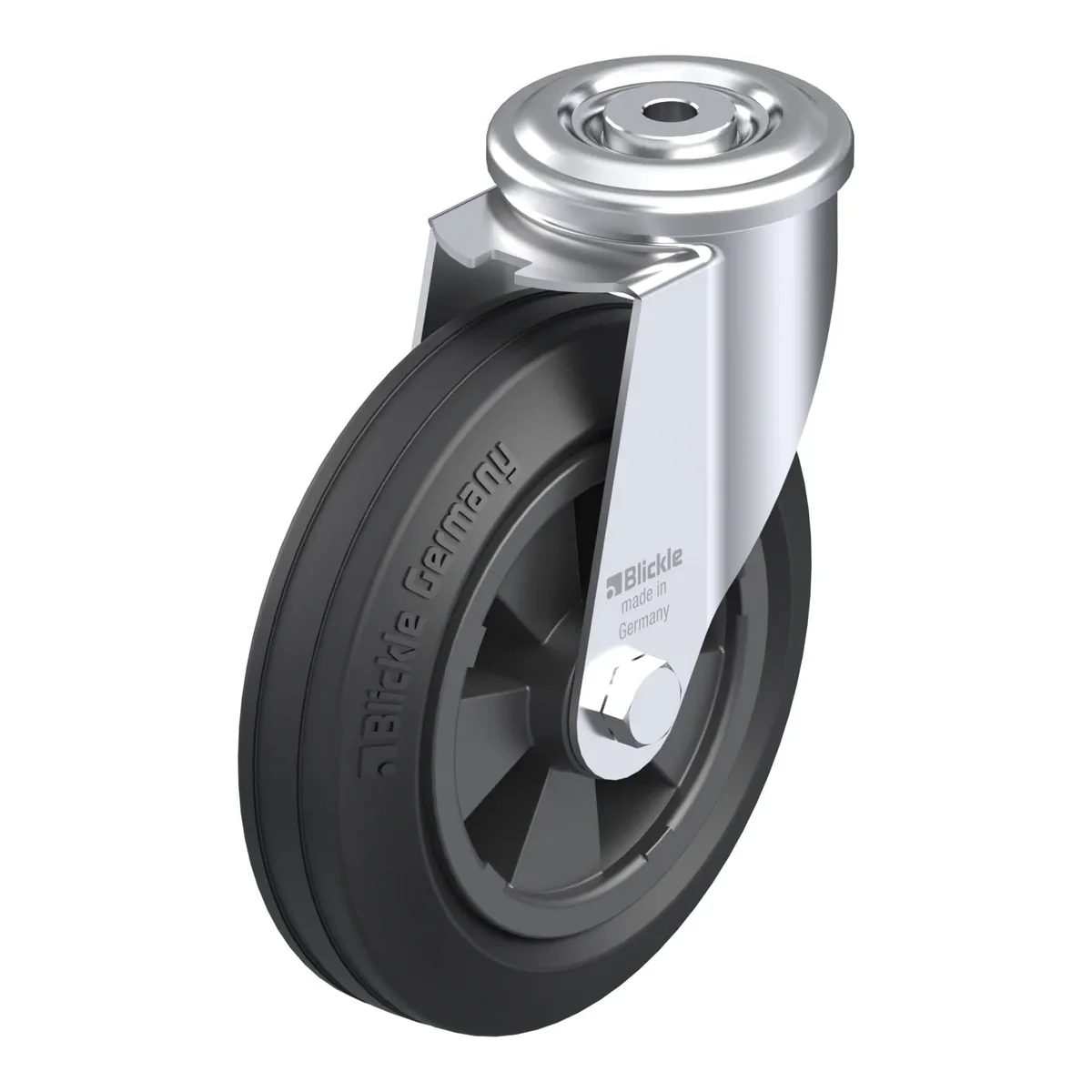

Okretni točkić, Blickle, Made in Germany
Ukratko: LER-VPP 180R je okretni točkić Blickle promjera 180 mm, širine 50 mm, nosivosti 170 kg pri 4 km/h (statički 425 kg). Ukupna visina je 215 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 84.05 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, wheel, with standard solid rubber tyre, with synthetic rim
84.05 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 601773 |
|---|---|
| EAN | 4047526108366 |
| Promjer točka | 180 mm |
| Širina točka | 50 mm |
| Ukupna visina | 215 mm |
| Nosivost pri 4 km/h | 170 kg |
| Statička nosivost | 425 kg |
| Offset | 50 mm |
| Tvrdoća gazišta | 80 Shore A |
| Radna temperatura | -20 °C do 60 °C |
| Težina | 2 kg |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: high-quality polypropylene, impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
