Šifra 942057
LER-POEV 80G-FI-SB

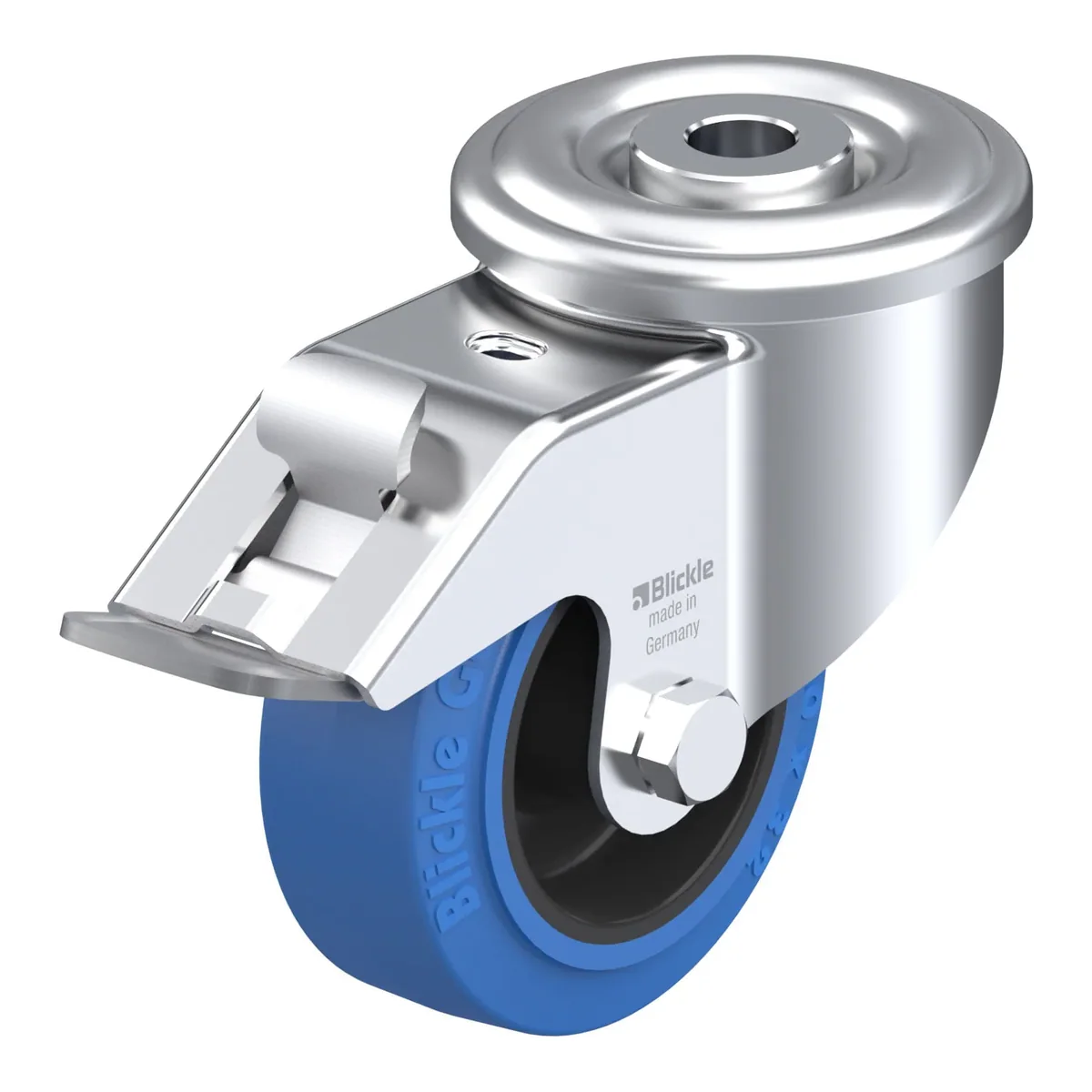

Okretni točkić, Blickle, Made in Germany
Ukratko: LER-POEV 80G-FI-SB je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 140 kg pri 4 km/h (statički 350 kg). Ukupna visina je 102 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 50.71 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, with brake system 'stop-fix', heavy duty wheel, with 'Blickle EasyRoll' elastic solid rubber tyres, with nylon wheel centre, non-marking, blue
50.71 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 942057 |
|---|---|
| EAN | 4047526414979 |
| Promjer točka | 80 mm |
| Širina točka | 32 mm |
| Ukupna visina | 102 mm |
| Nosivost pri 4 km/h | 140 kg |
| Statička nosivost | 350 kg |
| Offset | 38 mm |
| Tvrdoća gazišta | 65 Shore A |
| Radna temperatura | -25 °C do 80 °C |
| Težina | 0.6 kg |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour blue, non-marking
- wheel centre: high-quality nylon 6, impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
