MHC Tradetočkići.ba

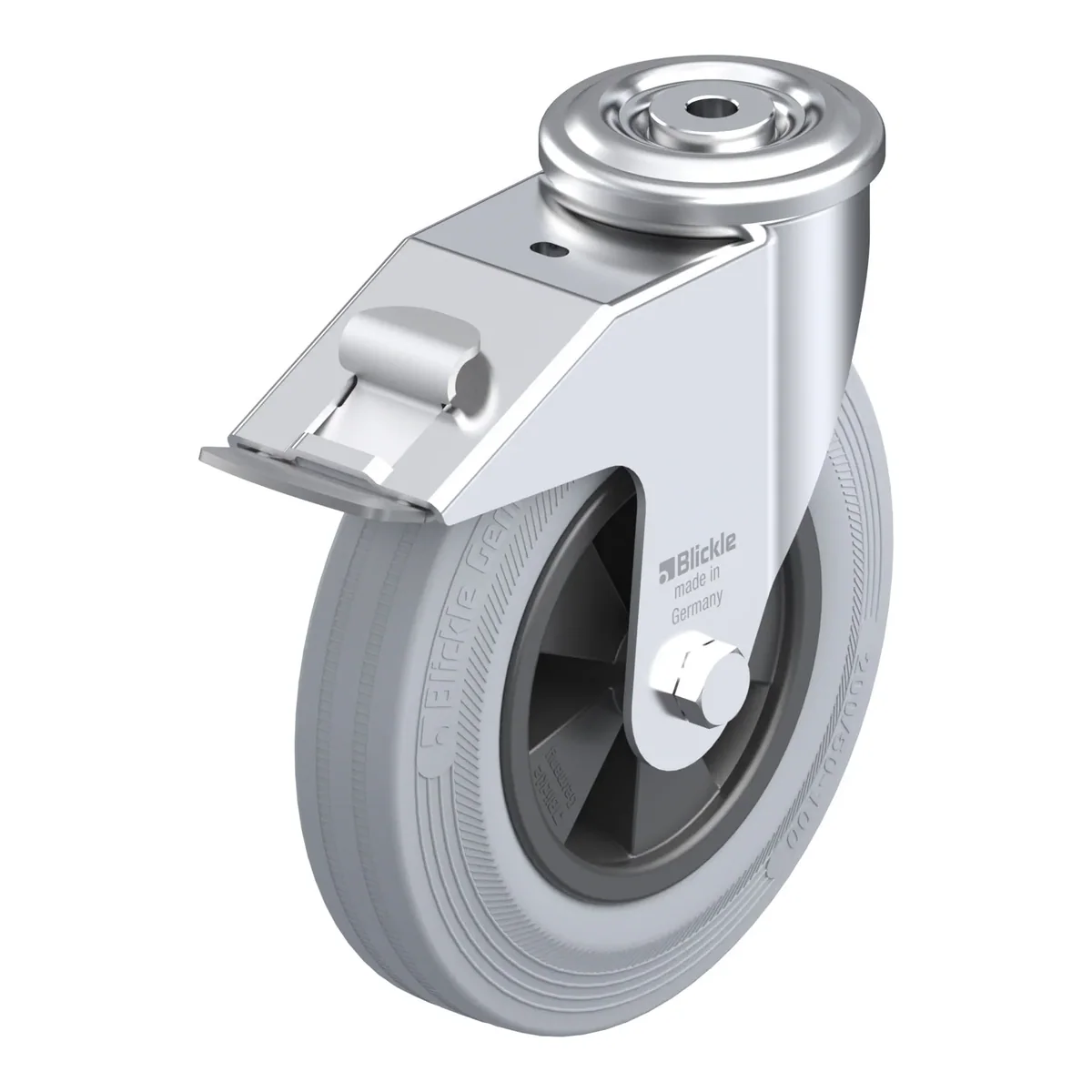

LER-VPP 200G-FI-SG – okretni točkić Blickle

Šifra 658476

LER-VPP 200G-FI-SG

Okretni točkić, Blickle, Made in Germany

Ukratko: LER-VPP 200G-FI-SG je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 205 kg pri 4 km/h (statički 515 kg). Ukupna visina je 235 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 139.34 KM s PDV-om.

Pressed steel swivel castor, with bolt hole, with brake system 'stop-fix', wheel, with standard solid rubber tyre, with synthetic rim, non-marking, grey

139.34 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla658476
EAN4047526658472
Promjer točka200 mm
Širina točka50 mm
Ukupna visina235 mm
Nosivost pri 4 km/h205 kg
Statička nosivost515 kg
Offset48 mm
Tvrdoća gazišta80 Shore A
Radna temperatura-20 °C do 60 °C
Težina2.9 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: standard solid rubber, hardness 80 Shore A, colour grey, non-marking
  • rim: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
