Šifra 945718

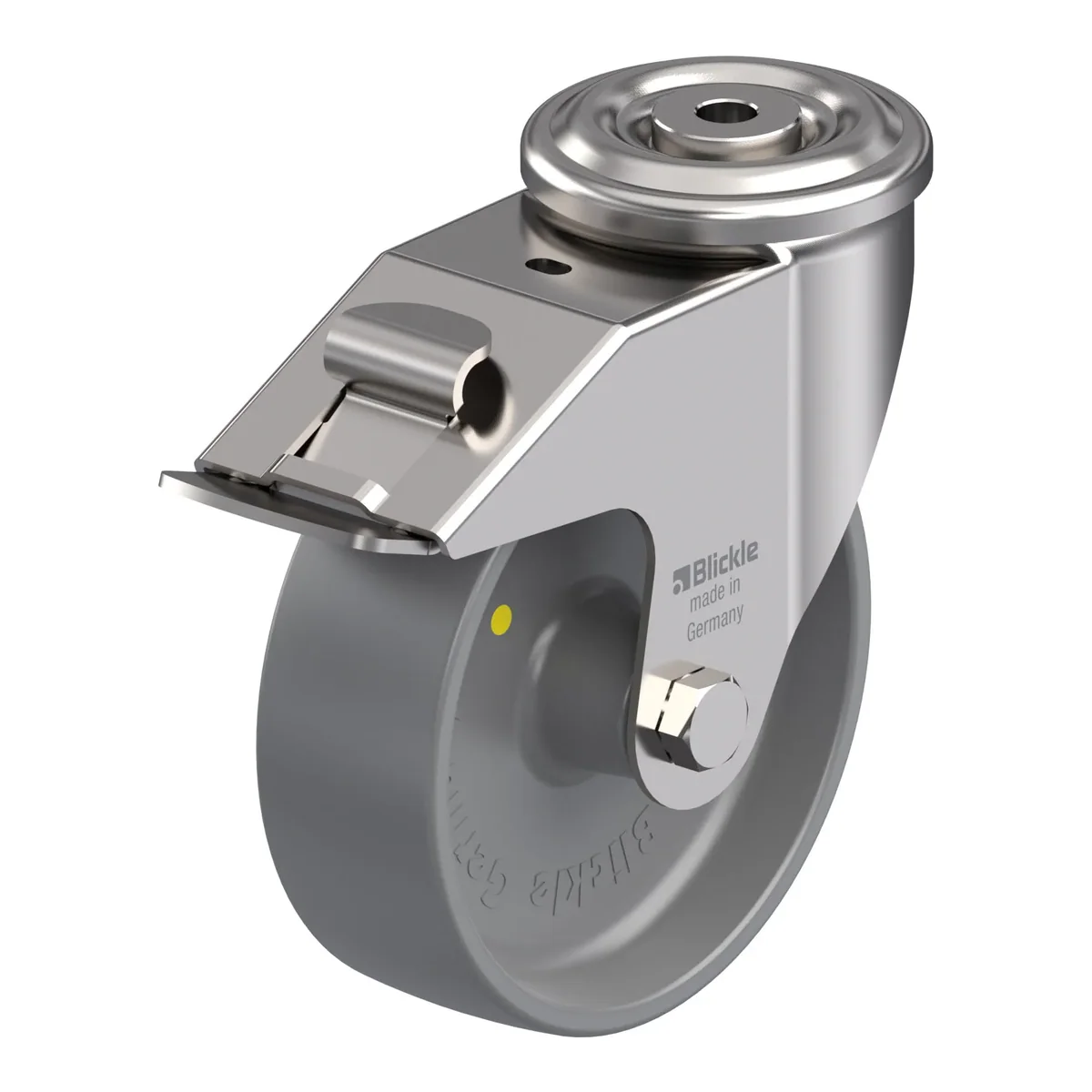

LEXR-PO 150G-FI-ELS
Okretni točkić, Blickle, Made in Germany
Ukratko: LEXR-PO 150G-FI-ELS je okretni točkić Blickle promjera 150 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 190 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 257.89 KM s PDV-om.
Stainless steel swivel castor, with bolt hole fitting, with brake system 'stop-fix', nylon wheel, electrically conductive, non-marking
257.89 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 945718 |
|---|---|
| EAN | 4047526361556 |
| Promjer točka | 150 mm |
| Širina točka | 50 mm |
| Ukupna visina | 190 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Offset | 54 mm |
| Tvrdoća gazišta | 70 Shore A |
| Radna temperatura | -25 °C do 80 °C |
| Težina | 1.7 kg |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
| ESD zaštita | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
- all parts including axle material are corrosion-resistant
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
