LEZ-PO 200G-22-FI-FA – okretni točkić Blickle

Šifra 749842

LEZ-PO 200G-22-FI-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LEZ-PO 200G-22-FI-FA je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 235 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 164.17 KM s PDV-om.

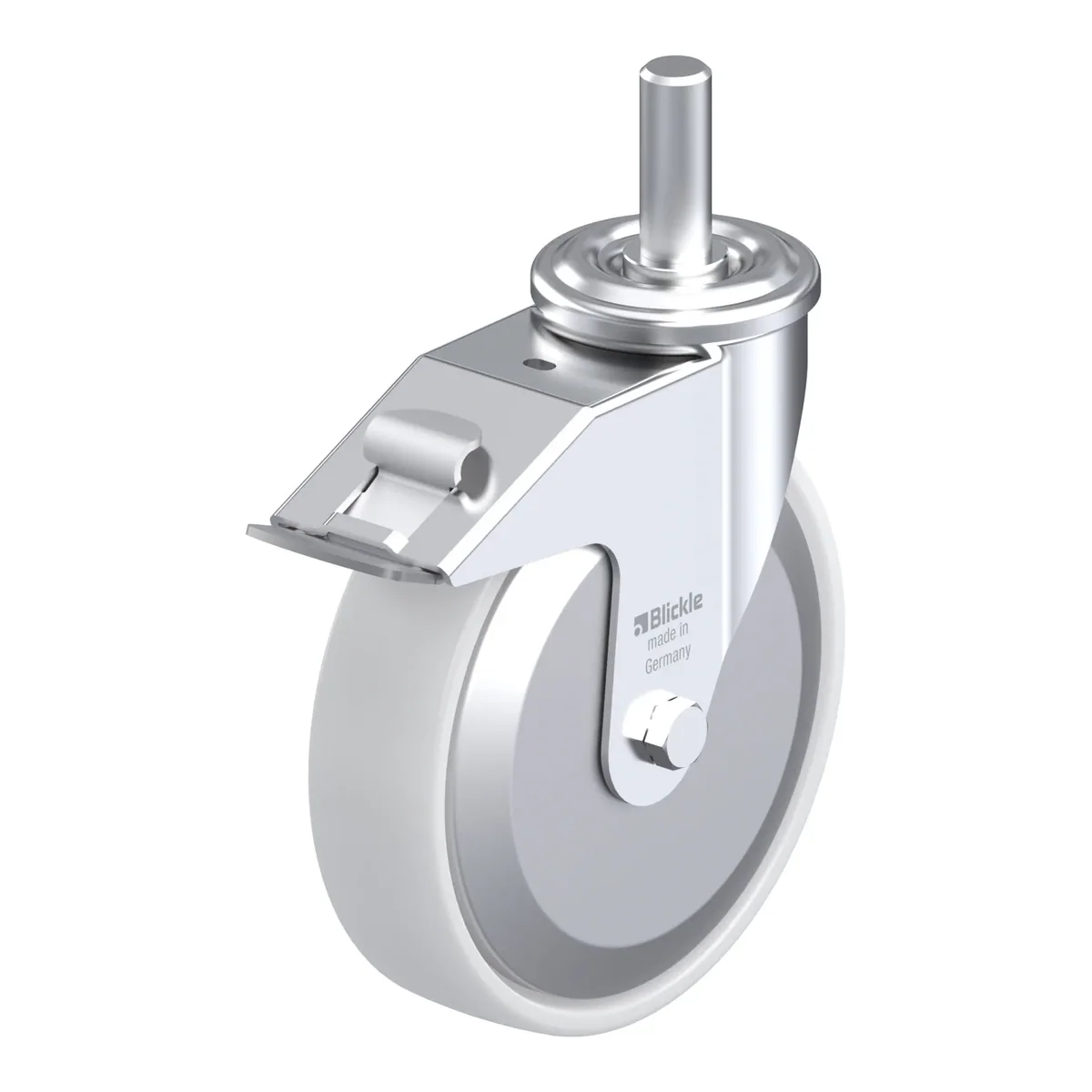

Pressed steel swivel castor, with stem fitting, with brake system 'stop-fix', nylon wheel, with steel thread guard

164.17 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla749842
EAN4047526018580
Promjer točka200 mm
Širina točka50 mm
Ukupna visina235 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Offset46 mm
Tvrdoća gazišta70 Shore A
Radna temperatura-25 °C do 80 °C
Težina2.8 kg
Ne ostavlja tragoveda

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • steel plug-in stem and central kingpin bolted and secured

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
