LEXR-PATH 100KFD-ELS – okretni točkić Blickle

Šifra 853698

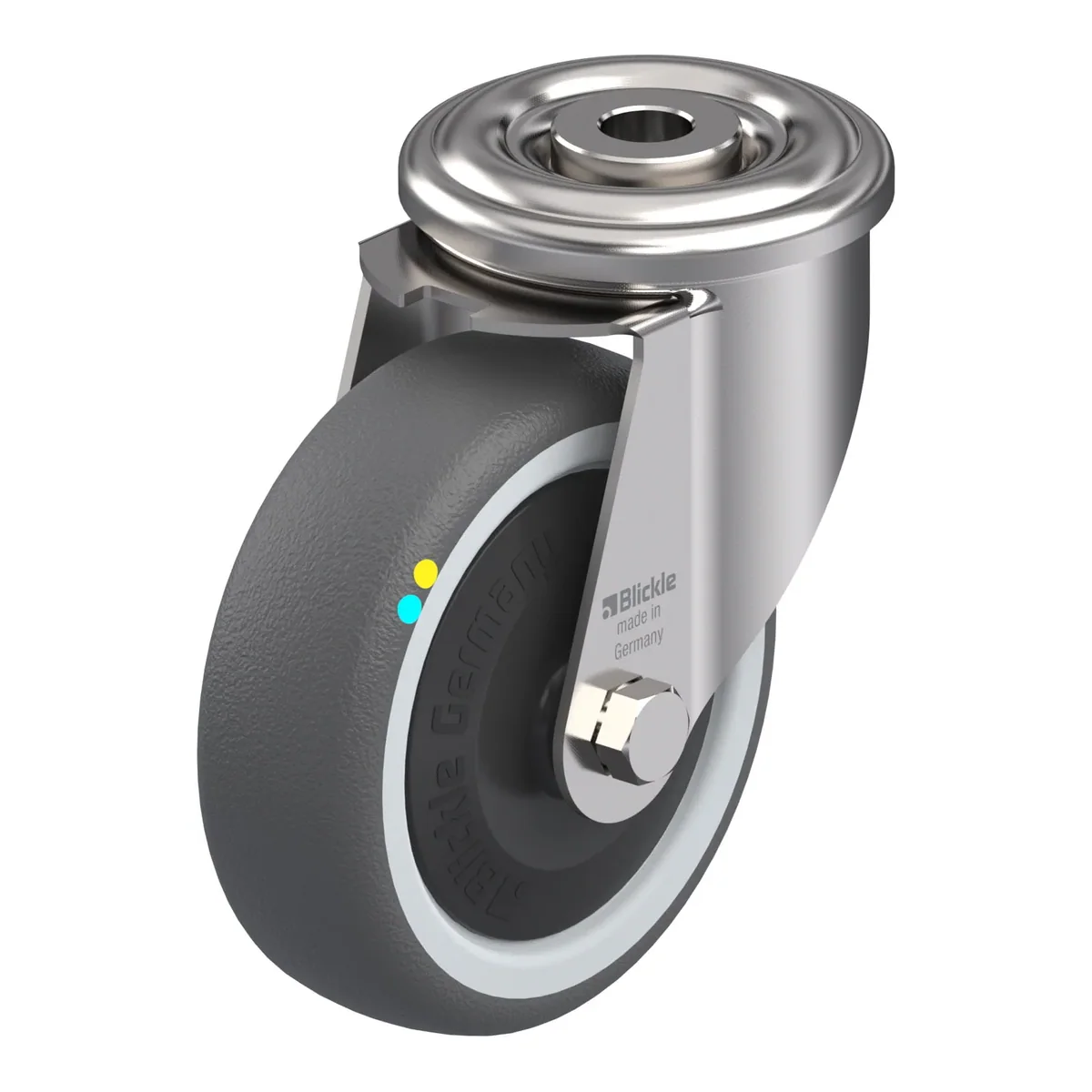

LEXR-PATH 100KFD-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LEXR-PATH 100KFD-ELS je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 130 kg pri 4 km/h (statički 325 kg). Ukupna visina je 125 mm. Radi na temperaturi od -25 °C do 70 °C. Cijena je 110.80 KM s PDV-om.

Stainless steel swivel castor, with bolt hole fitting, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals, electrically conductive, non-marking

110.80 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853698
EAN4047526209797
Promjer točka100 mm
Širina točka32 mm
Ukupna visina125 mm
Nosivost pri 4 km/h130 kg
Statička nosivost325 kg
Offset40 mm
Tvrdoća gazišta94 Shore A
Radna temperatura-25 °C do 70 °C
Težina0.6 kg
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • all parts including axle material are corrosion-resistant

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
