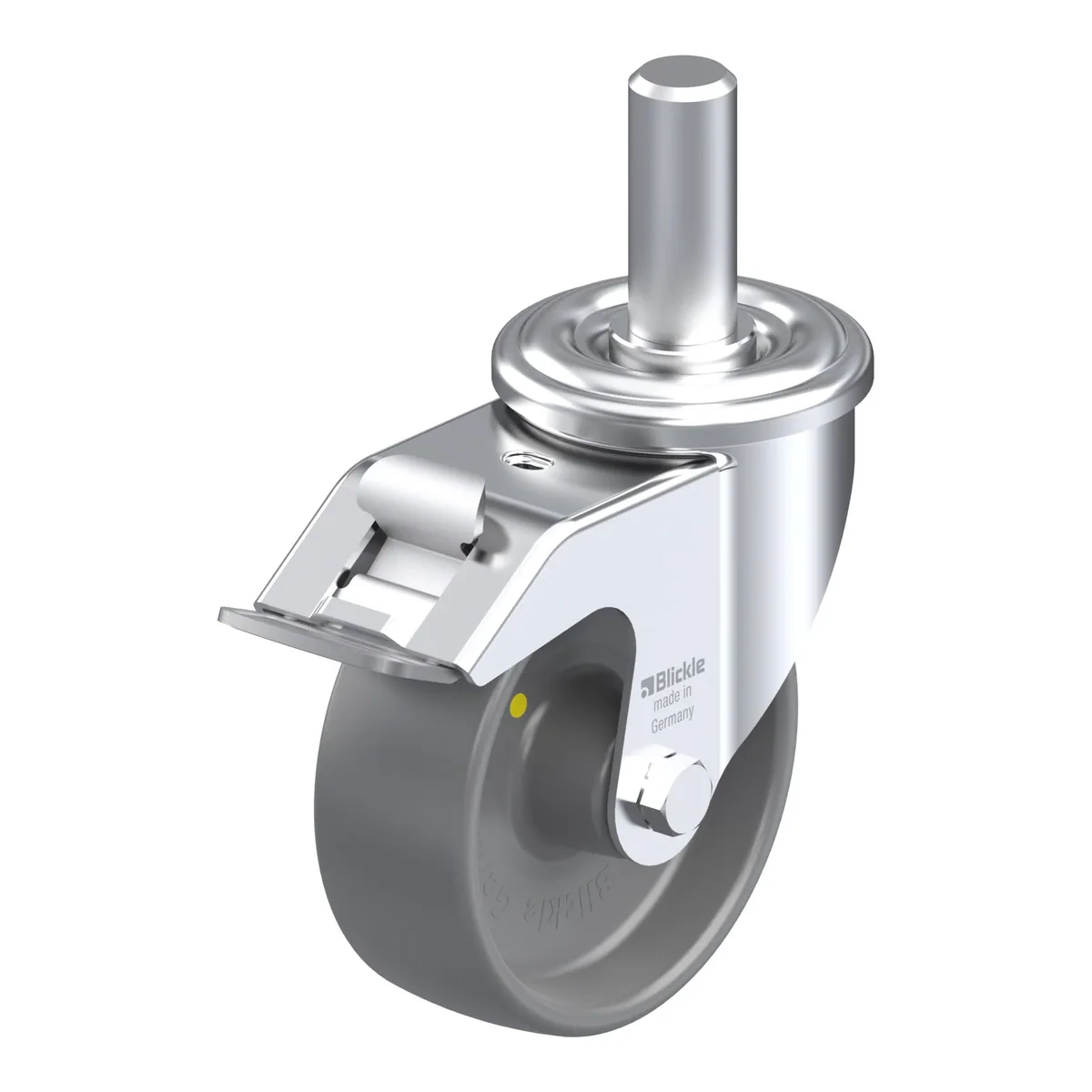

LEZ-PO 100G-FI-ELS – okretni točkić Blickle

Šifra 936891

LEZ-PO 100G-FI-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LEZ-PO 100G-FI-ELS je okretni točkić Blickle promjera 100 mm, širine 37 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 125 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 86.05 KM s PDV-om.

Pressed steel swivel castor, with stem fitting, with brake system 'stop-fix', nylon wheel, electrically conductive, non-marking

86.05 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla936891
EAN4047526366520
Promjer točka100 mm
Širina točka37 mm
Ukupna visina125 mm
Nosivost pri 4 km/h150 kg
Statička nosivost375 kg
Offset36 mm
Tvrdoća gazišta70 Shore A
Radna temperatura-25 °C do 80 °C
Težina0.8 kg
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • steel plug-in stem and central kingpin bolted and secured

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
