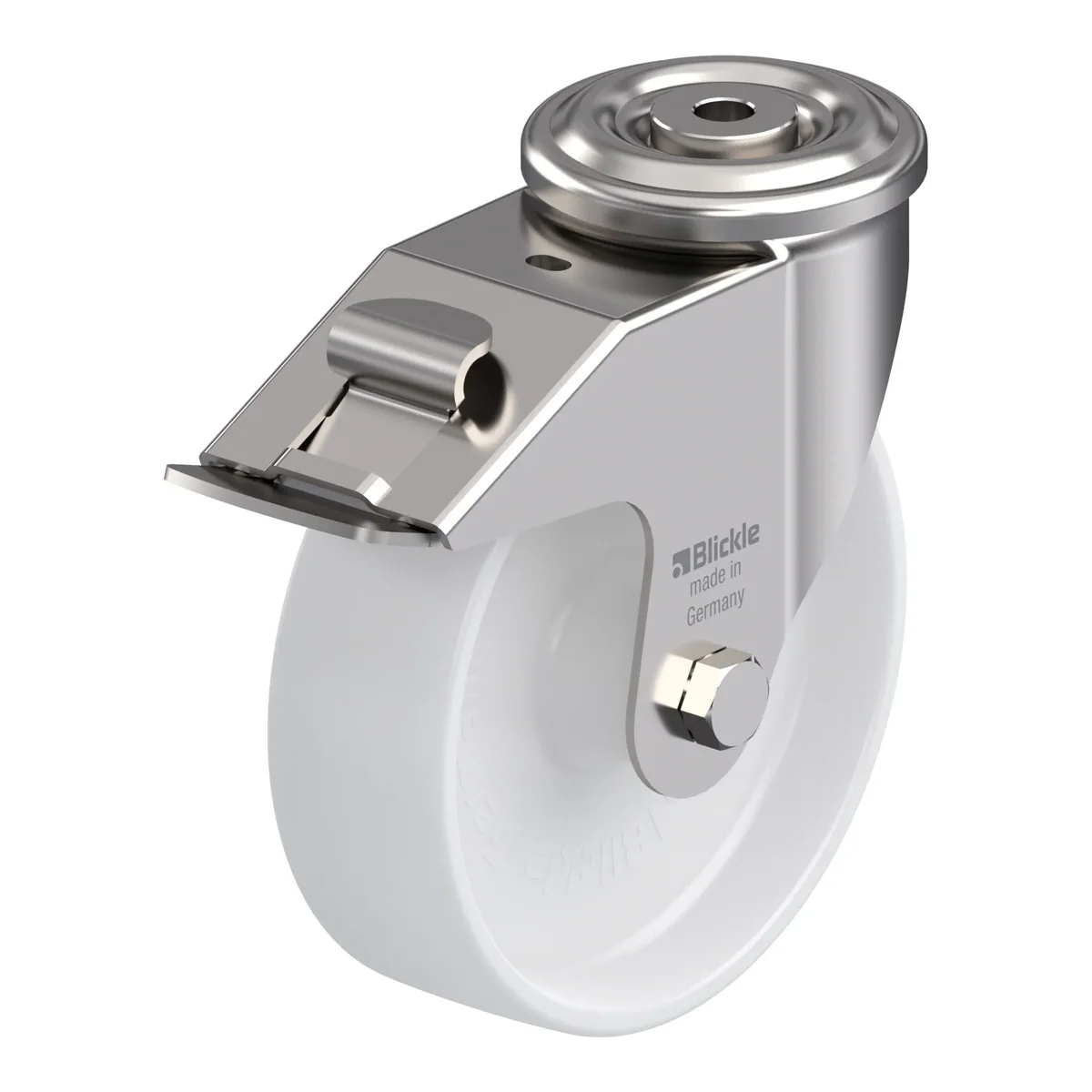

LEXR-PO 160G-FI – okretni točkić Blickle

Šifra 751916

LEXR-PO 160G-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LEXR-PO 160G-FI je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 195 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 221.95 KM s PDV-om.

Stainless steel swivel castor, with bolt hole fitting, with brake system 'stop-fix', nylon wheel

221.95 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla751916
EAN4047526061302
Promjer točka160 mm
Širina točka50 mm
Ukupna visina195 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Offset46 mm
Tvrdoća gazišta70 Shore A
Radna temperatura-25 °C do 80 °C
Težina1.7 kg
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • all parts including axle material are corrosion-resistant

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
