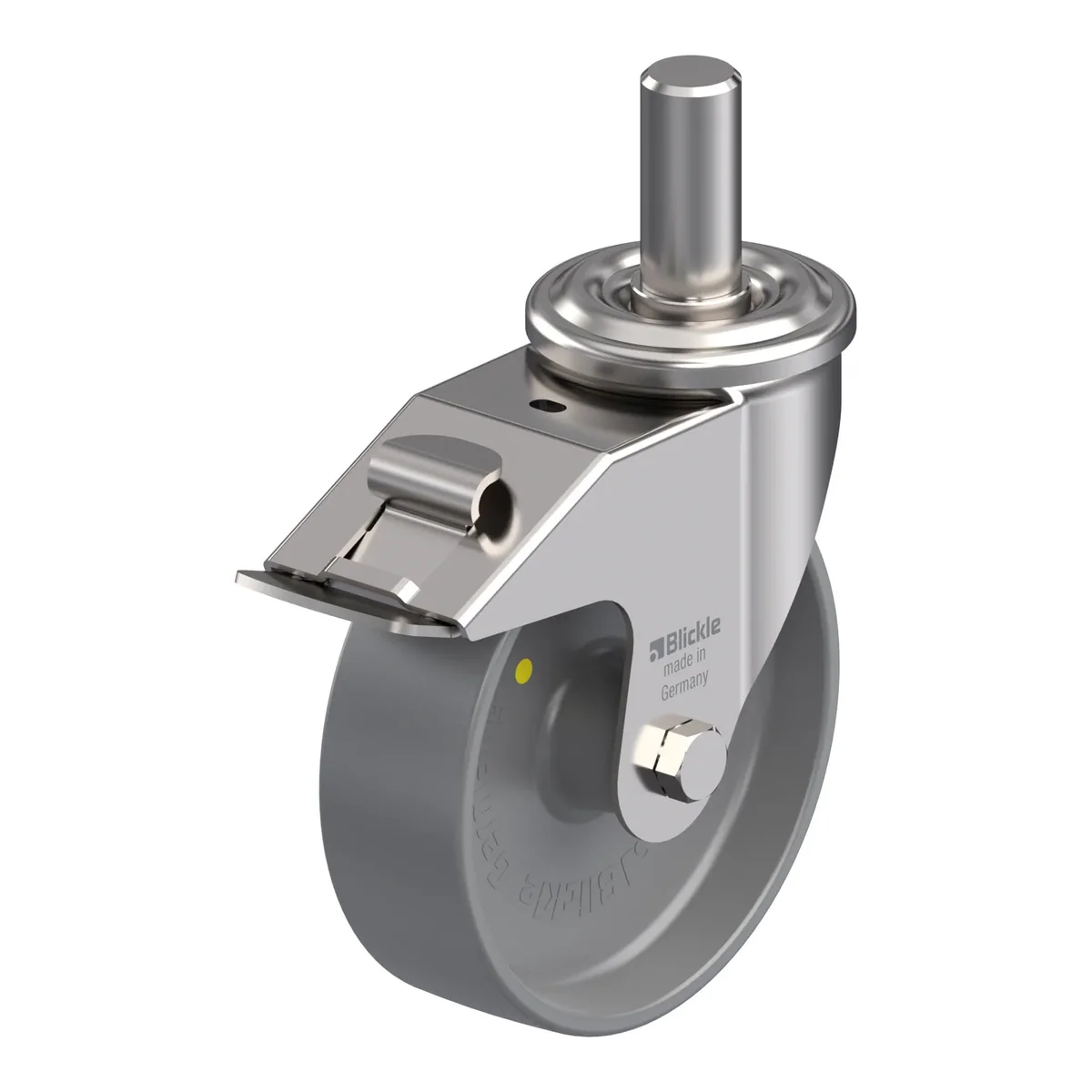

LEXZ-PO 160G-FI-ELS – okretni točkić Blickle

Šifra 945730

LEXZ-PO 160G-FI-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LEXZ-PO 160G-FI-ELS je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 195 mm. Cijena je 301.78 KM s PDV-om.

Stainless steel swivel castor, with stem, with brake system 'stop-fix', nylon wheel, electrically conductive, non-marking

301.78 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla945730
EAN4047526361617
Promjer točka160 mm
Širina točka50 mm
Ukupna visina195 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Offset46 mm
Ne ostavlja tragoveda
Otporan na korozijuda
ESD zaštitada

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • stainless steel plug-in stem and central kingpin bolted and secured
  • all parts including axle material are corrosion-resistant

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
