Šifra 848979
LRA-POA 75G-EV03

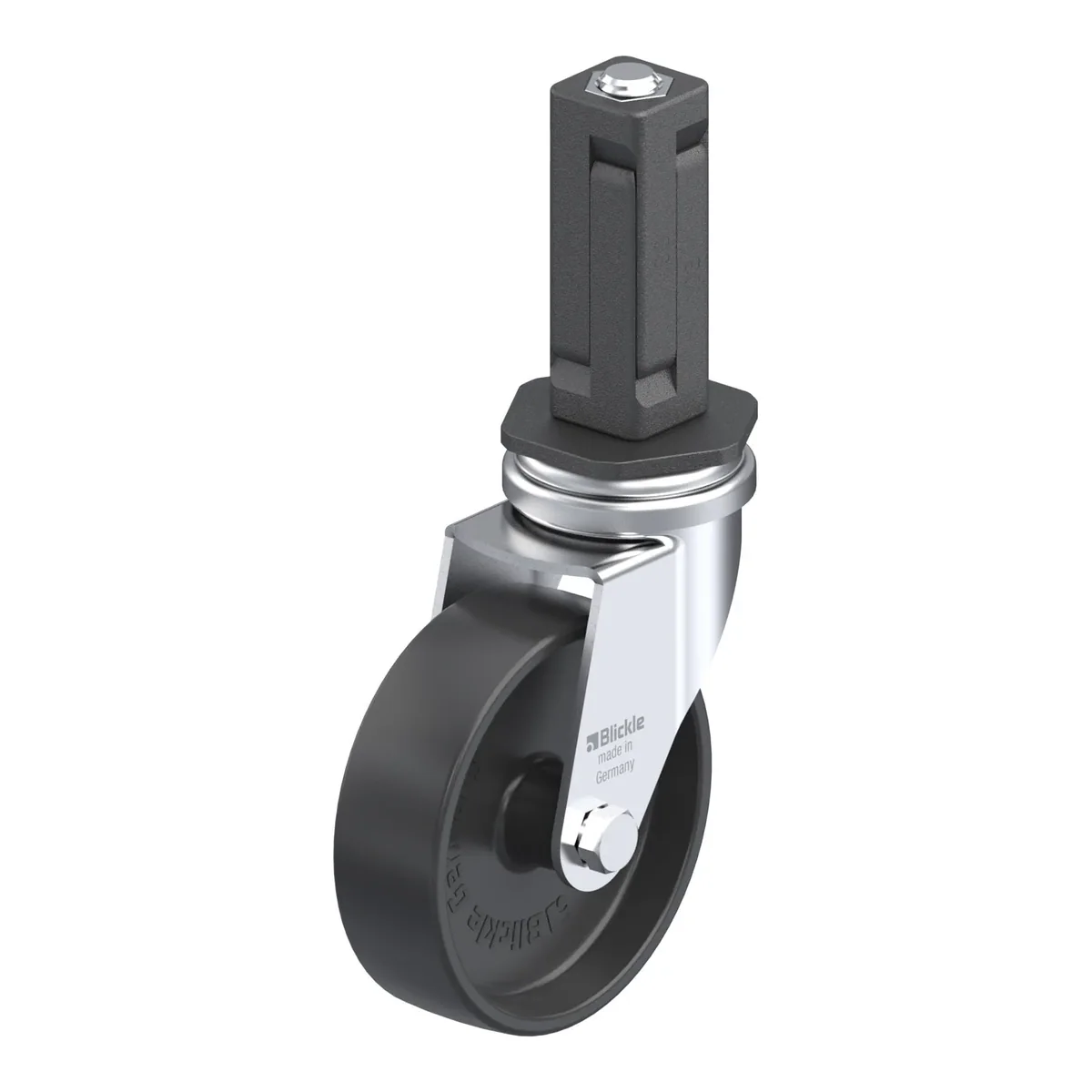

Okretni točkić, Blickle, Made in Germany
Ukratko: LRA-POA 75G-EV03 je okretni točkić Blickle promjera 75 mm, širine 23 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 101 mm. Cijena je 31.72 KM s PDV-om.
Light duty swivel castor, with bolt hole fitting, with synthetic expander, nylon wheel
31.72 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 848979 |
|---|---|
| EAN | 4047526146283 |
| Promjer točka | 75 mm |
| Širina točka | 23 mm |
| Ukupna visina | 101 mm |
| Nosivost pri 4 km/h | 75 kg |
| Statička nosivost | 187.5 kg |
| Offset | 29 mm |
| Ne ostavlja tragove | da |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
