LEXR-PATH 200G-FI – okretni točkić Blickle

Šifra 847109

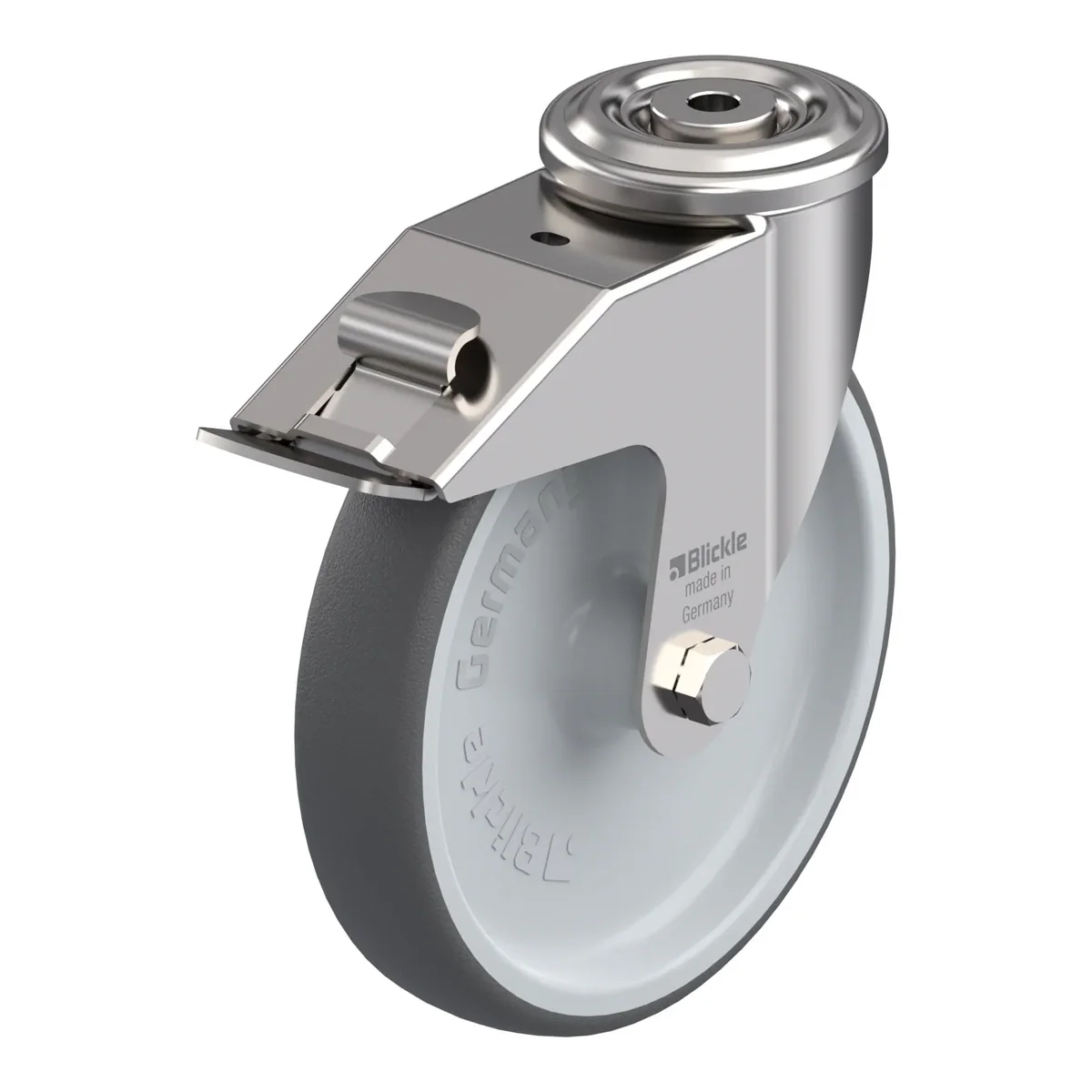

LEXR-PATH 200G-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LEXR-PATH 200G-FI je okretni točkić Blickle promjera 200 mm, širine 40 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 235 mm. Cijena je 268.56 KM s PDV-om.

Stainless steel swivel castor, with bolt hole fitting, with brake system 'stop-fix', wheel, with thermoplastic polyurethane tread, with nylon wheel centre

268.56 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla847109
EAN4047526127220
Promjer točka200 mm
Širina točka40 mm
Ukupna visina235 mm
Nosivost pri 4 km/h300 kg
Statička nosivost750 kg
Offset46 mm
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • all parts including axle material are corrosion-resistant

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
