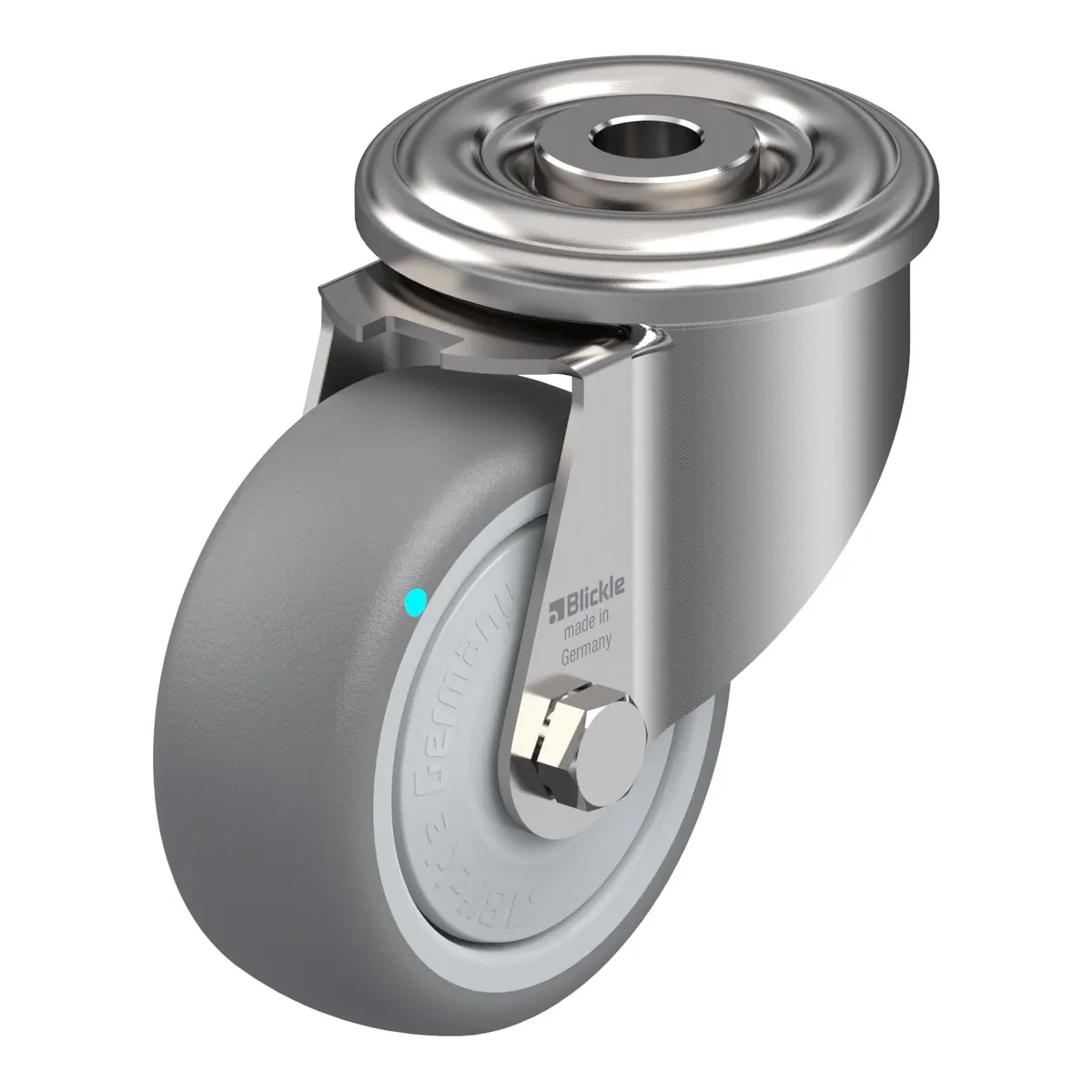

LEXR-TPA 80KFD – okretni točkić Blickle

Šifra 760872

LEXR-TPA 80KFD

Okretni točkić, Blickle, Made in Germany

Ukratko: LEXR-TPA 80KFD je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 102 mm. Cijena je 76.65 KM s PDV-om.

Stainless steel swivel castor, with bolt hole fitting, wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large, with additionals ball b earing seals

76.65 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla760872
EAN4047526099268
Promjer točka80 mm
Širina točka32 mm
Ukupna visina102 mm
Nosivost pri 4 km/h100 kg
Statička nosivost250 kg
Offset38 mm
Ne ostavlja tragoveda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • all parts including axle material are corrosion-resistant

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
