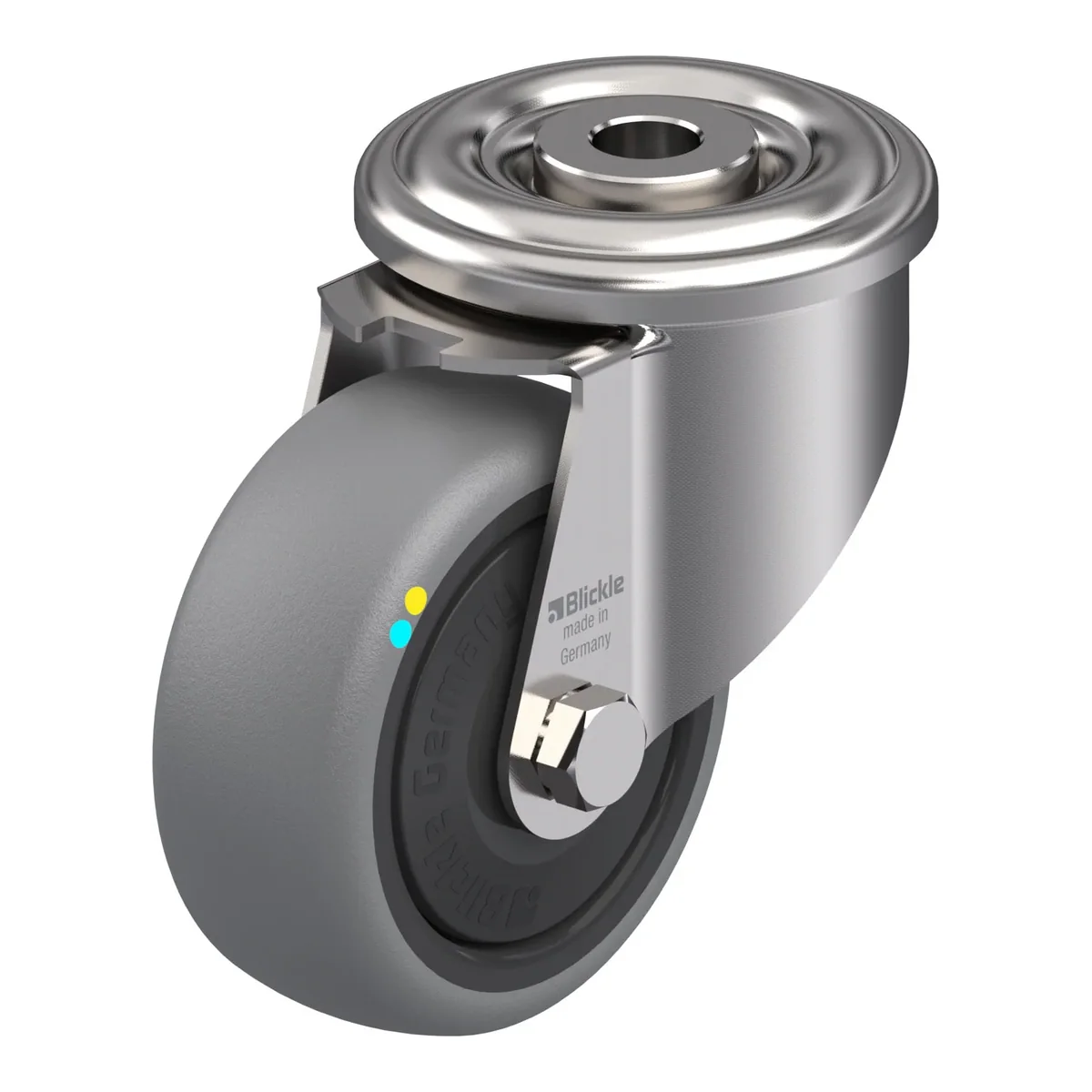

LEXR-TPA 80KFD-ELS – okretni točkić Blickle

Šifra 853608

LEXR-TPA 80KFD-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LEXR-TPA 80KFD-ELS je okretni točkić Blickle promjera 80 mm, širine 32 mm, nosivosti 65 kg pri 4 km/h (statički 162.5 kg). Ukupna visina je 102 mm. Cijena je 82.43 KM s PDV-om.

Stainless steel swivel castor, with bolt hole fitting, wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large, with additionals ball b earing seals, electrically conductive, non-marking

82.43 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853608
EAN4047526208653
Promjer točka80 mm
Širina točka32 mm
Ukupna visina102 mm
Nosivost pri 4 km/h65 kg
Statička nosivost162.5 kg
Offset38 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • all parts including axle material are corrosion-resistant

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour black

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, PATH
  • electrical conductivity (ohmic resistance) ≤ 104Ω
