Šifra 885236
LEXR-PO 100G-ELS

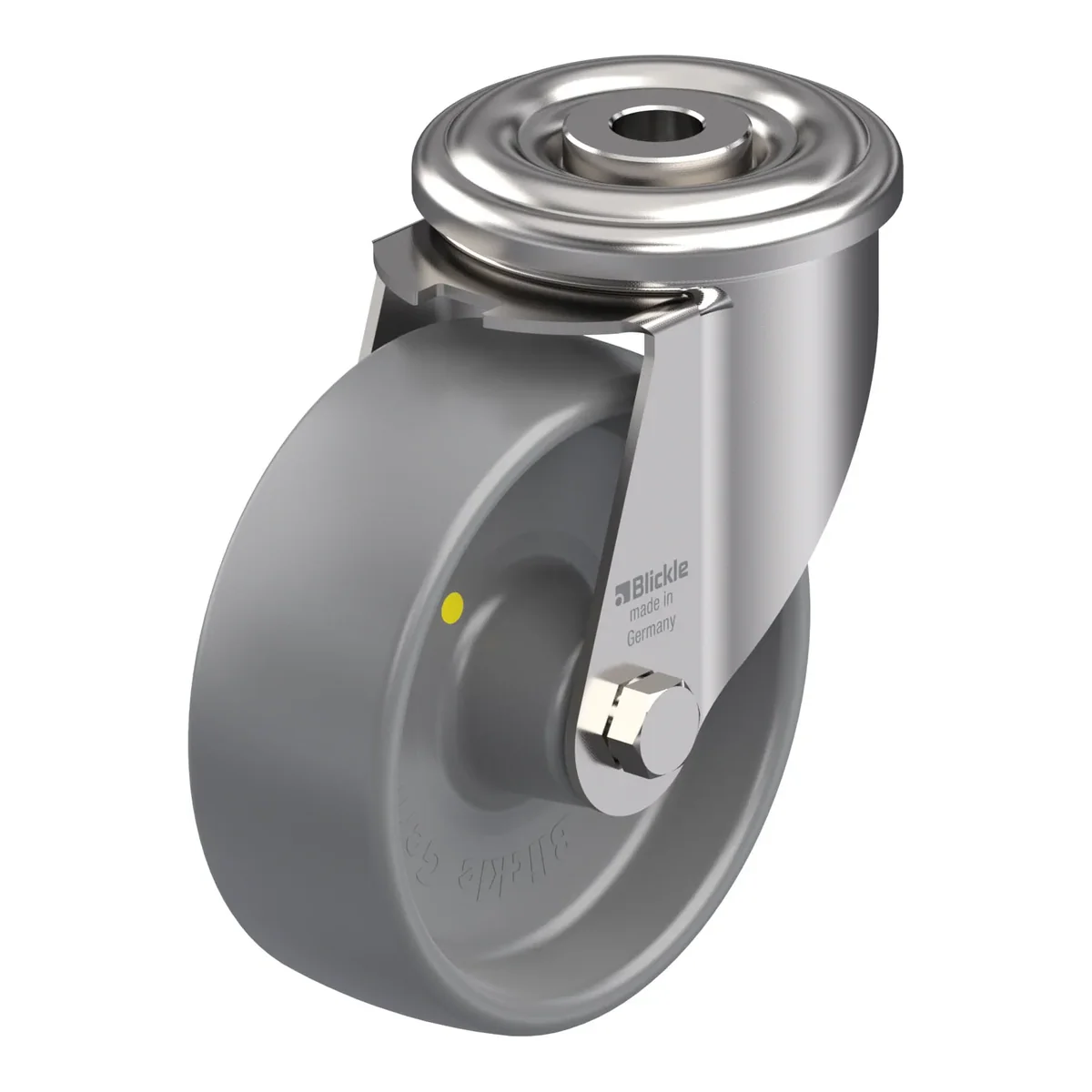

Okretni točkić, Blickle, Made in Germany
Ukratko: LEXR-PO 100G-ELS je okretni točkić Blickle promjera 100 mm, širine 37 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 125 mm. Cijena je 100.30 KM s PDV-om.
Stainless steel swivel castor, with bolt hole fitting, nylon wheel, electrically conductive, non-marking
100.30 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 885236 |
|---|---|
| EAN | 4047526296780 |
| Promjer točka | 100 mm |
| Širina točka | 37 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 150 kg |
| Statička nosivost | 375 kg |
| Offset | 36 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
| ESD zaštita | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
- all parts including axle material are corrosion-resistant
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour grey, non-marking
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
- electrical conductivity (ohmic resistance) ≤ 104Ω
