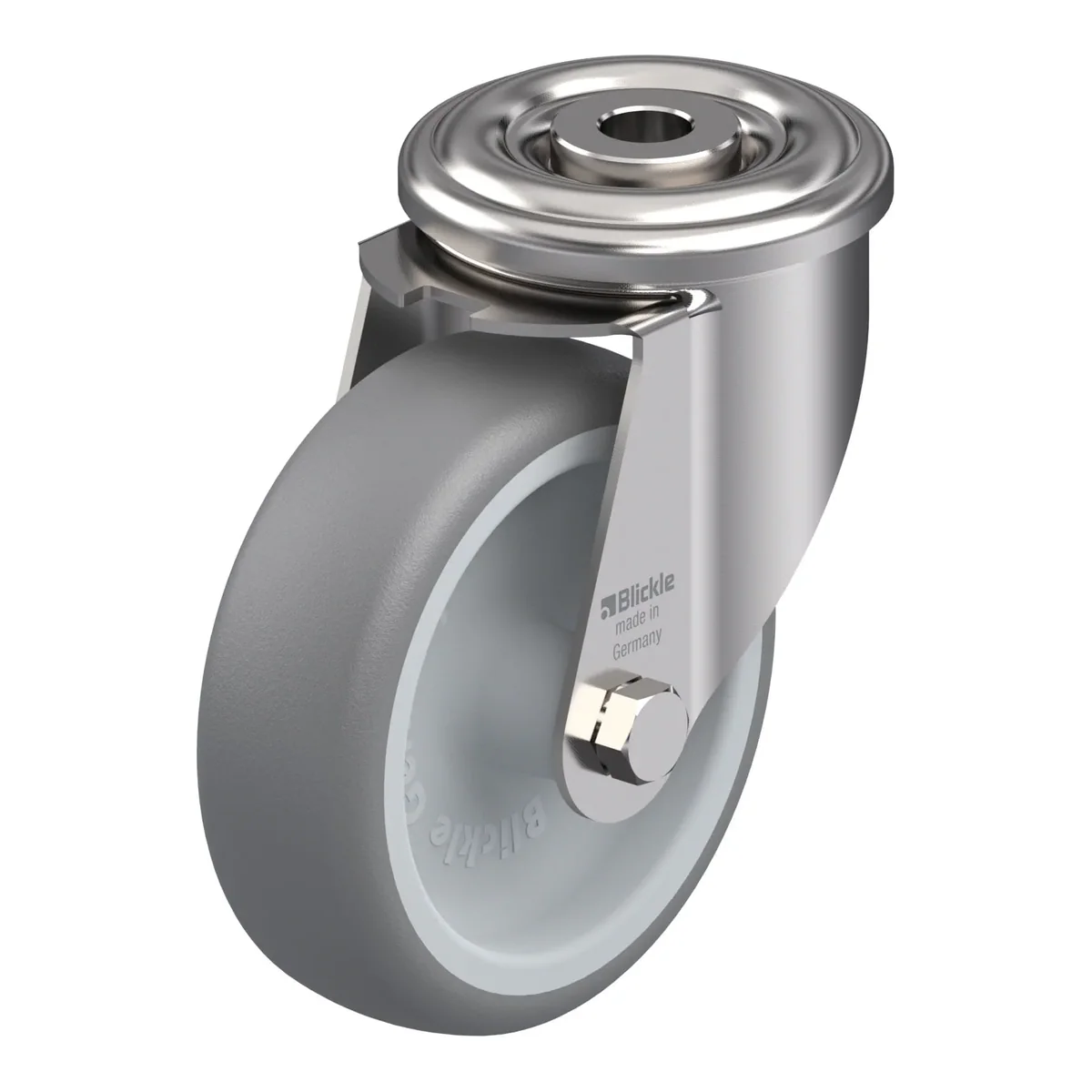

LEXR-TPA 102G – okretni točkić Blickle

Šifra 621185

LEXR-TPA 102G

Okretni točkić, Blickle, Made in Germany

Ukratko: LEXR-TPA 102G je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 110 kg pri 4 km/h (statički 275 kg). Ukupna visina je 125 mm. Cijena je 72.54 KM s PDV-om.

Stainless steel swivel castor, with bolt hole fitting, wheel, with thermoplastic rubber tread, with polypropylene wheel centre

72.54 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla621185
EAN4047526621186
Promjer točka100 mm
Širina točka32 mm
Ukupna visina125 mm
Nosivost pri 4 km/h110 kg
Statička nosivost275 kg
Offset36 mm
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
  • all parts including axle material are corrosion-resistant

Točak

  • tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
  • wheel centre: high-quality polypropylene, impact resistant, colour silver grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
