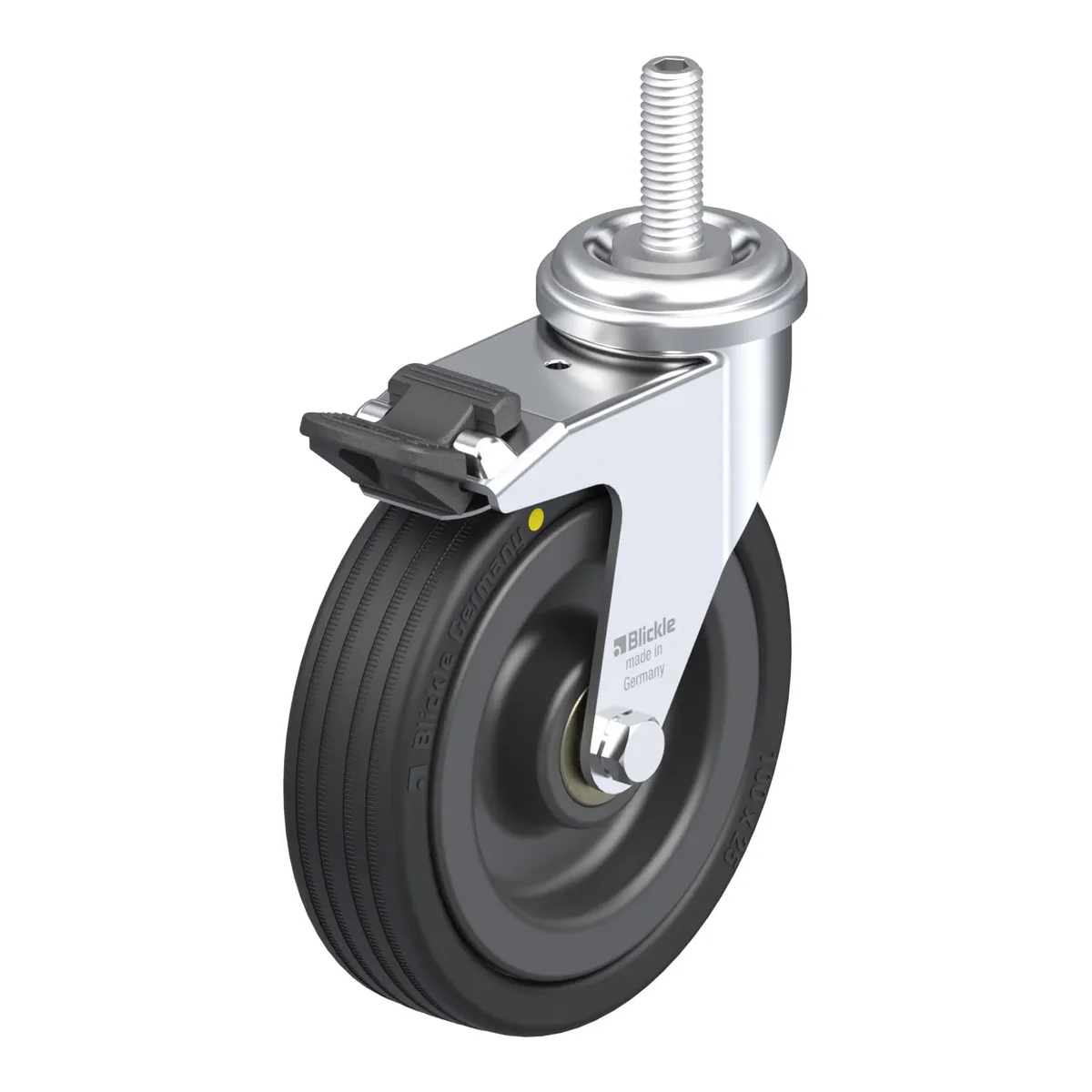

LRA-VPA 100K-FI-EL-GS10 – okretni točkić Blickle

Šifra 621805

LRA-VPA 100K-FI-EL-GS10

Okretni točkić, Blickle, Made in Germany

Ukratko: LRA-VPA 100K-FI-EL-GS10 je okretni točkić Blickle promjera 100 mm, širine 25 mm, nosivosti 70 kg pri 4 km/h (statički 175 kg). Ukupna visina je 121 mm. Cijena je 36.81 KM s PDV-om.

Light duty swivel castor, with bolt hole fitting, with threaded pin, with brake system 'stop-fix', wheel, with solid rubber tyres, with synthetic rim, electrically conductive

36.81 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla621805
EAN4047526621803
Promjer točka100 mm
Širina točka25 mm
Ukupna visina121 mm
Nosivost pri 4 km/h70 kg
Statička nosivost175 kg
Offset33 mm
ESD zaštitada

Nosač

  • pressed steel, zinc-plated, blue-passivated, Cr6-free
  • double ball bearing in the swivel head
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tyre: high-quality solid rubber, hardness 80 Shore A, colour black
  • rim: high-quality polypropylene, impact resistant, colour black, Electrically conductive, colour black, marking

Dodatne karakteristike

  • high chemical resistance to many aggressive substances, except oils
  • operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
