MHC Tradetočkići.ba

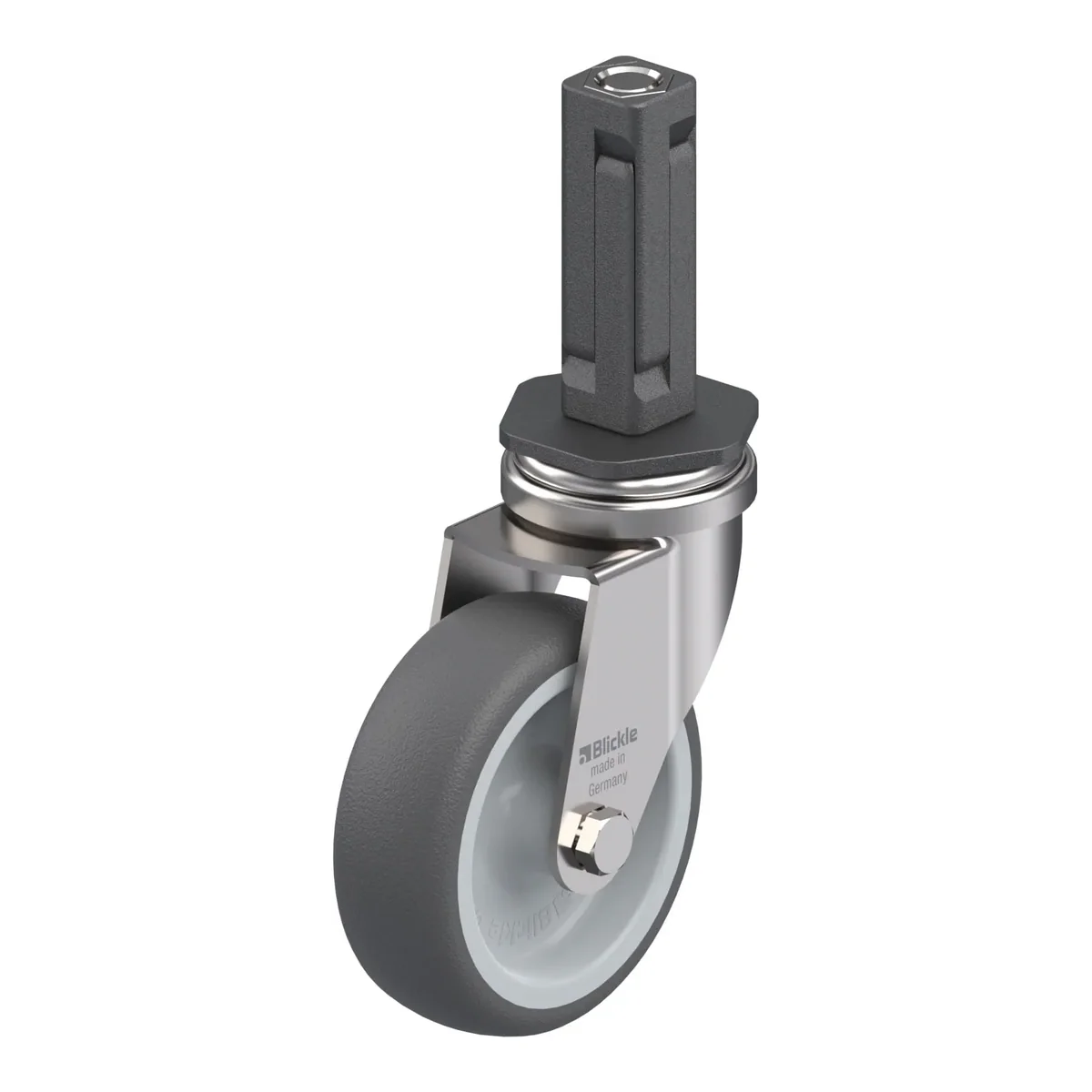

LRXA-PATH 75G-EXV02 – okretni točkić Blickle

Šifra 853361

LRXA-PATH 75G-EXV02

Okretni točkić, Blickle, Made in Germany

Ukratko: LRXA-PATH 75G-EXV02 je okretni točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 101 mm. Cijena je 79.83 KM s PDV-om.

Stainless steel light duty swivel castor, with bolt hole, with synthetic expander, wheel, with thermoplastic polyurethane tread, with nylon wheel centre

79.83 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853361
EAN4047526204945
Promjer točka75 mm
Širina točka25 mm
Ukupna visina101 mm
Nosivost pri 4 km/h75 kg
Statička nosivost187.5 kg
Offset29 mm
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
