Šifra 856482
LRXA-PO 76G-EXV04

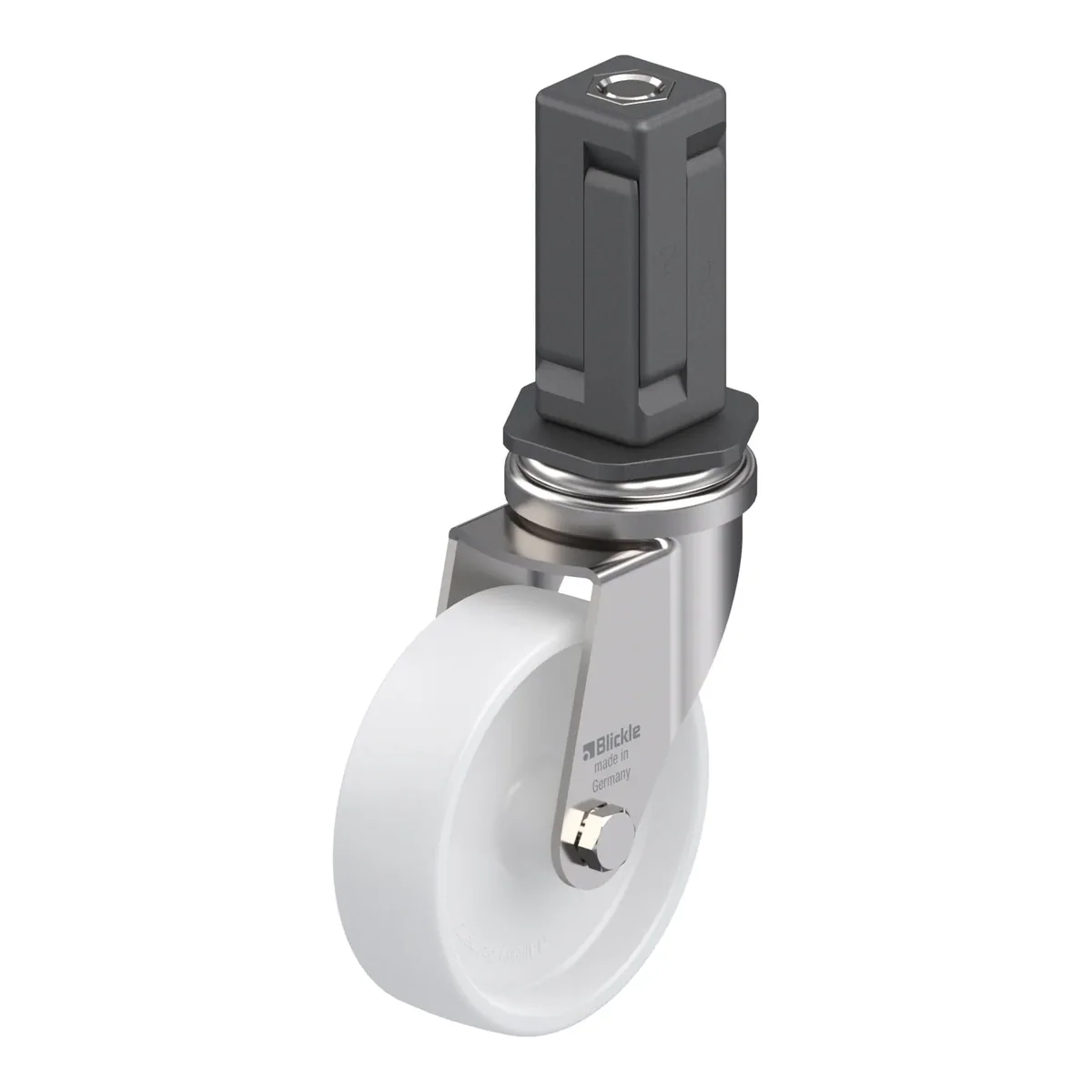

Okretni točkić, Blickle, Made in Germany
Ukratko: LRXA-PO 76G-EXV04 je okretni točkić Blickle promjera 75 mm, širine 23 mm, nosivosti 75 kg pri 4 km/h (statički 190 kg). Ukupna visina je 101 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 74.72 KM s PDV-om.
Stainless steel light duty swivel castor, with bolt hole, with synthetic expander, nylon wheel
74.72 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 856482 |
|---|---|
| EAN | 4047526213275 |
| Promjer točka | 75 mm |
| Širina točka | 23 mm |
| Ukupna visina | 101 mm |
| Nosivost pri 4 km/h | 75 kg |
| Statička nosivost | 190 kg |
| Offset | 29 mm |
| Tvrdoća gazišta | 70 Shore A |
| Radna temperatura | -25 °C do 80 °C |
| Težina | 0.3 kg |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
