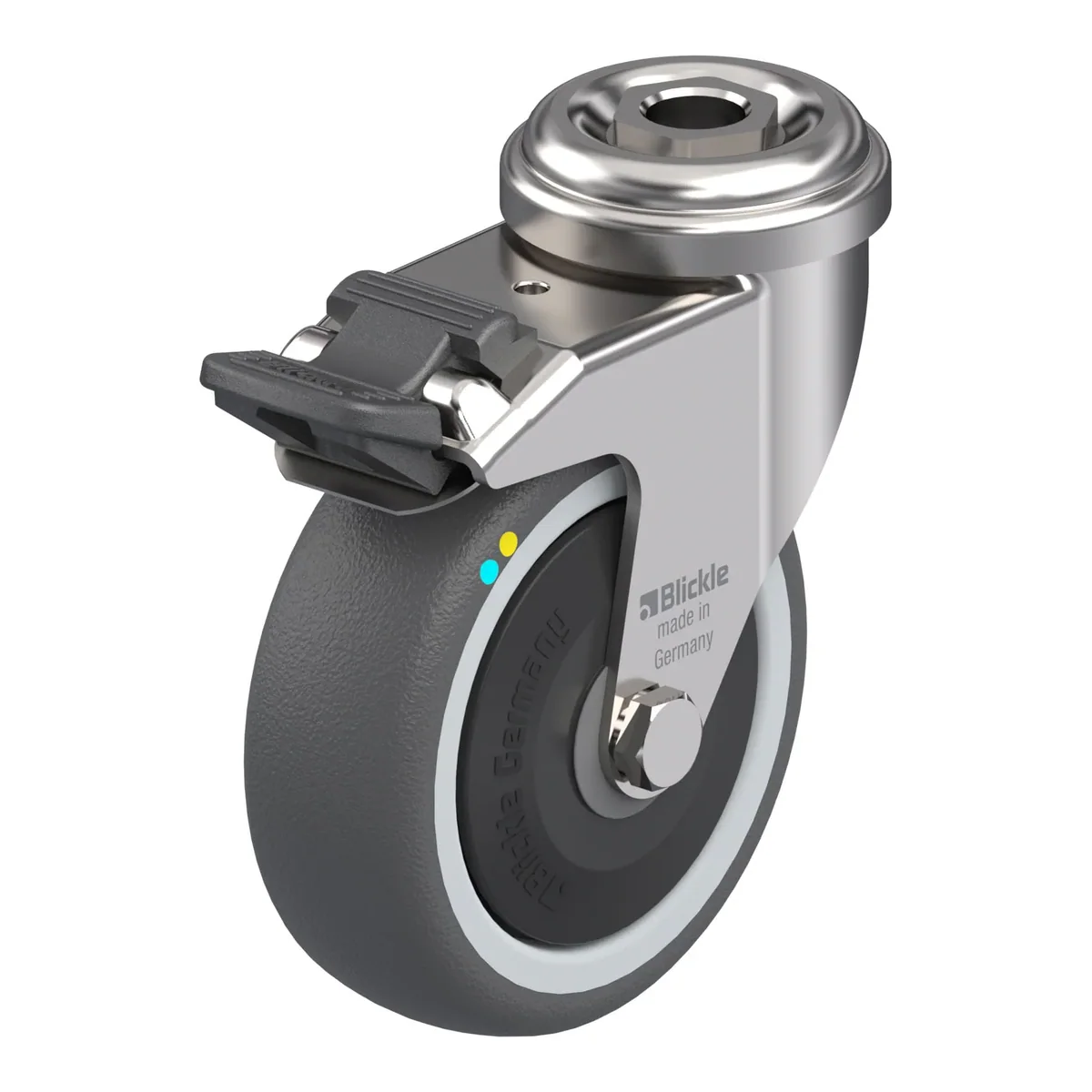

LRXA-PATH 75KFD-FI-ELS – okretni točkić Blickle

Šifra 853366

LRXA-PATH 75KFD-FI-ELS

Okretni točkić, Blickle, Made in Germany

Ukratko: LRXA-PATH 75KFD-FI-ELS je okretni točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 65 kg pri 4 km/h (statički 165 kg). Ukupna visina je 98 mm. Radi na temperaturi od -20 °C do 70 °C. Cijena je 102.39 KM s PDV-om.

Stainless steel light duty swivel castor, with bolt hole, with brake system 'stop-fix', wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals, electrically conductive, non-marking

102.39 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853366
EAN4047526205003
Promjer točka75 mm
Širina točka25 mm
Ukupna visina98 mm
Nosivost pri 4 km/h65 kg
Statička nosivost165 kg
Offset28 mm
Tvrdoća gazišta94 Shore A
Radna temperatura-20 °C do 70 °C
Težina0.3 kg
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
  • electrical conductivity (ohmic resistance) ≤ 104Ω
