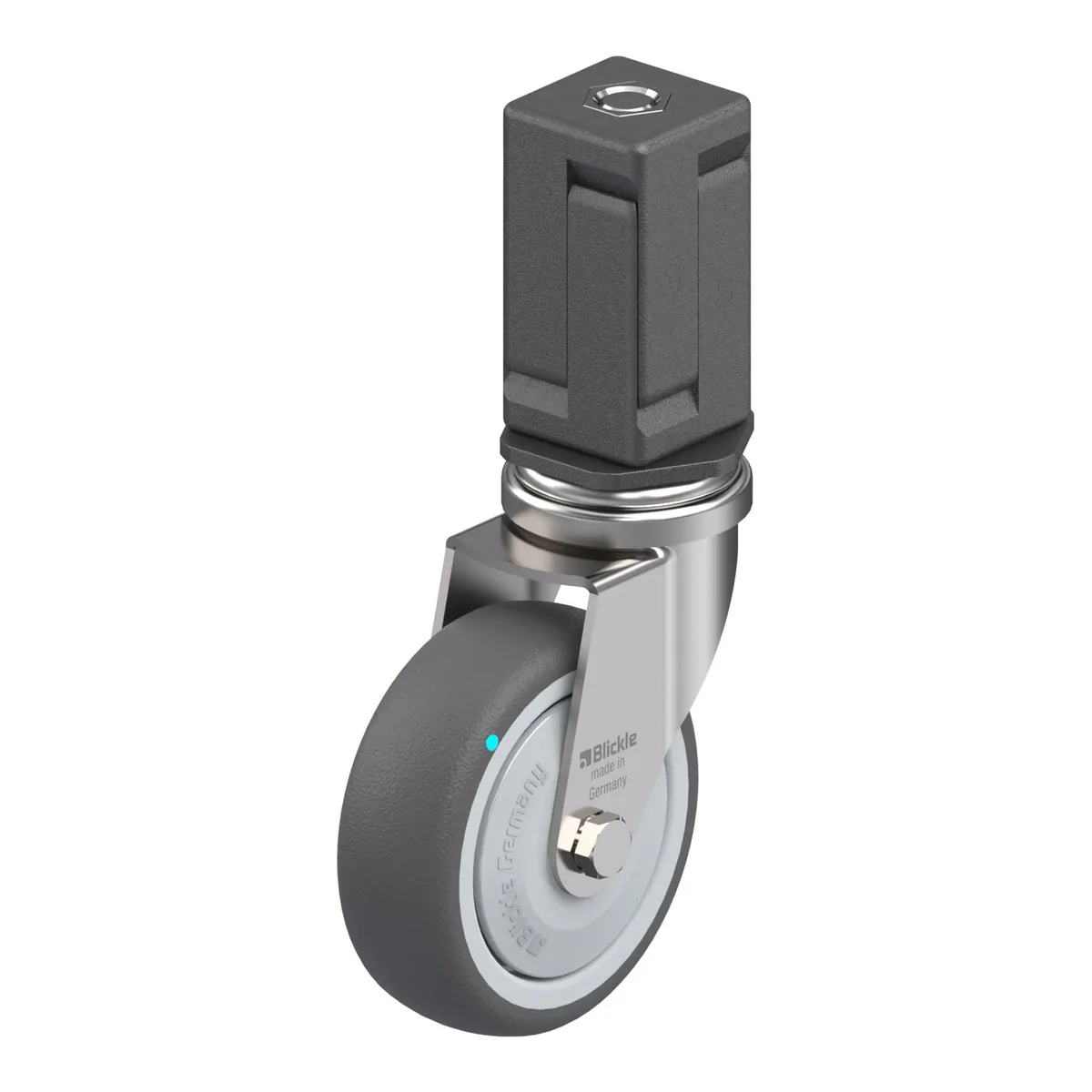

LRXA-PATH 75KFD-EXV07 – okretni točkić Blickle

Šifra 853385

LRXA-PATH 75KFD-EXV07

Okretni točkić, Blickle, Made in Germany

Ukratko: LRXA-PATH 75KFD-EXV07 je okretni točkić Blickle promjera 75 mm, širine 25 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 101 mm. Cijena je 87.05 KM s PDV-om.

Stainless steel light duty swivel castor, with bolt hole, with synthetic expander, wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard, large, with additionals ball bea ring seals

87.05 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla853385
EAN4047526205270
Promjer točka75 mm
Širina točka25 mm
Ukupna visina101 mm
Nosivost pri 4 km/h75 kg
Statička nosivost187.5 kg
Offset29 mm
Ne ostavlja tragoveda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Točak

  • tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
  • wheel centre: high-quality nylon 6, impact resistant, colour silver grey

Dodatne karakteristike

  • large thread guard, with additional, ball bearing seals
  • very high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
