Šifra 744769
LWGX-TPA 101XKF-11

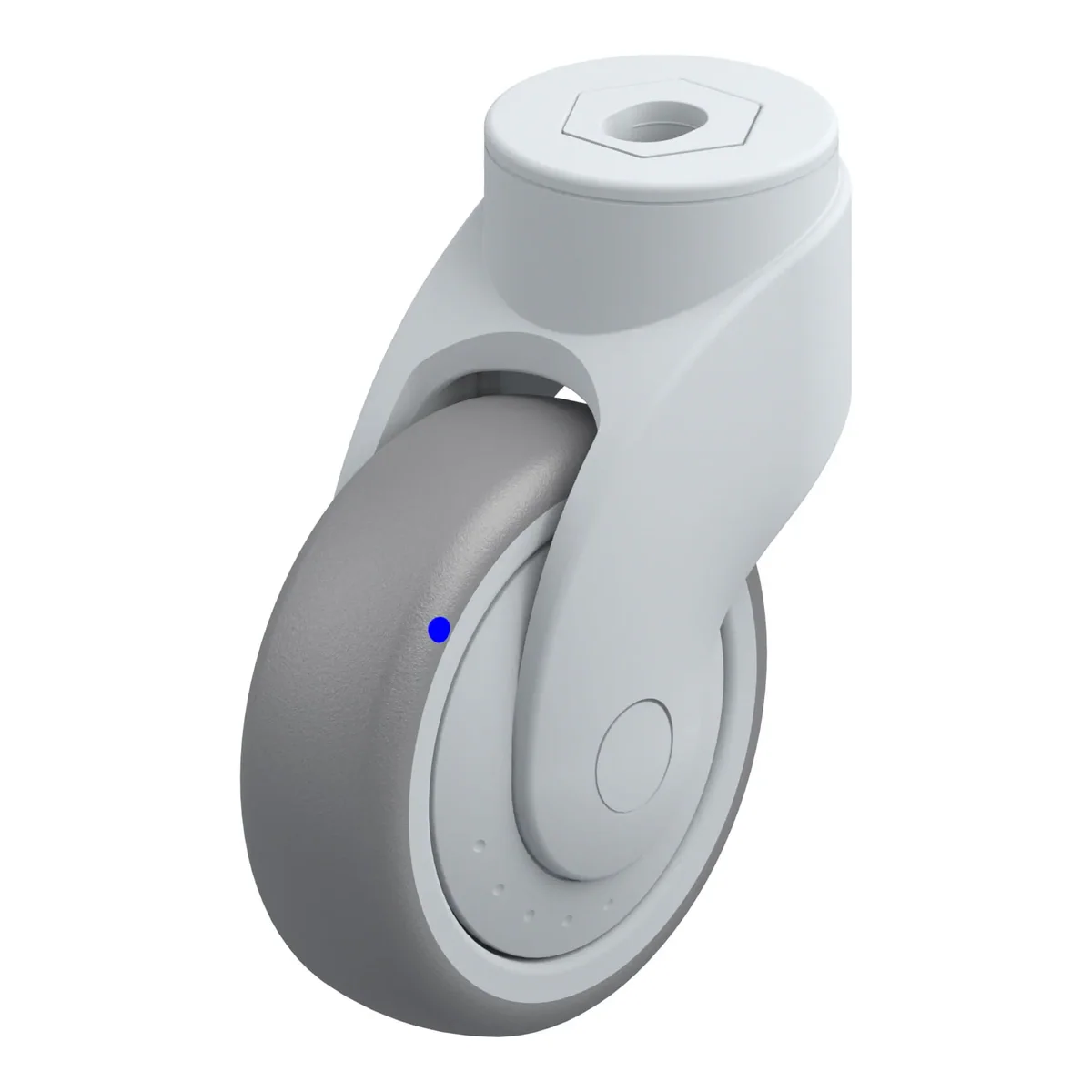

Okretni točkić, Blickle, Made in Germany
Ukratko: LWGX-TPA 101XKF-11 je okretni točkić Blickle promjera 100 mm, širine 32 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 135 mm. Radi na temperaturi od -20 °C do 60 °C. Cijena je 66.98 KM s PDV-om.
Blickle synthetic swivel castor WAVE, corrosion-resistant, colour grey white, wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard, large
66.98 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 744769 |
|---|---|
| EAN | 4047526055875 |
| Promjer točka | 100 mm |
| Širina točka | 32 mm |
| Ukupna visina | 135 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Offset | 38 mm |
| Tvrdoća gazišta | 85 Shore A |
| Radna temperatura | -20 °C do 60 °C |
| Težina | 0.4 kg |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality nylon 6, impact resistant
- moulded corrosion-resistant grooved ball bearing in the swivel head sealed on both sides
- bolt hole
- colour silver grey RAL 7001
- all parts including axle material are corrosion-resistant
- modern, appealing design
Točak
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour silver grey RAL 7001
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces
