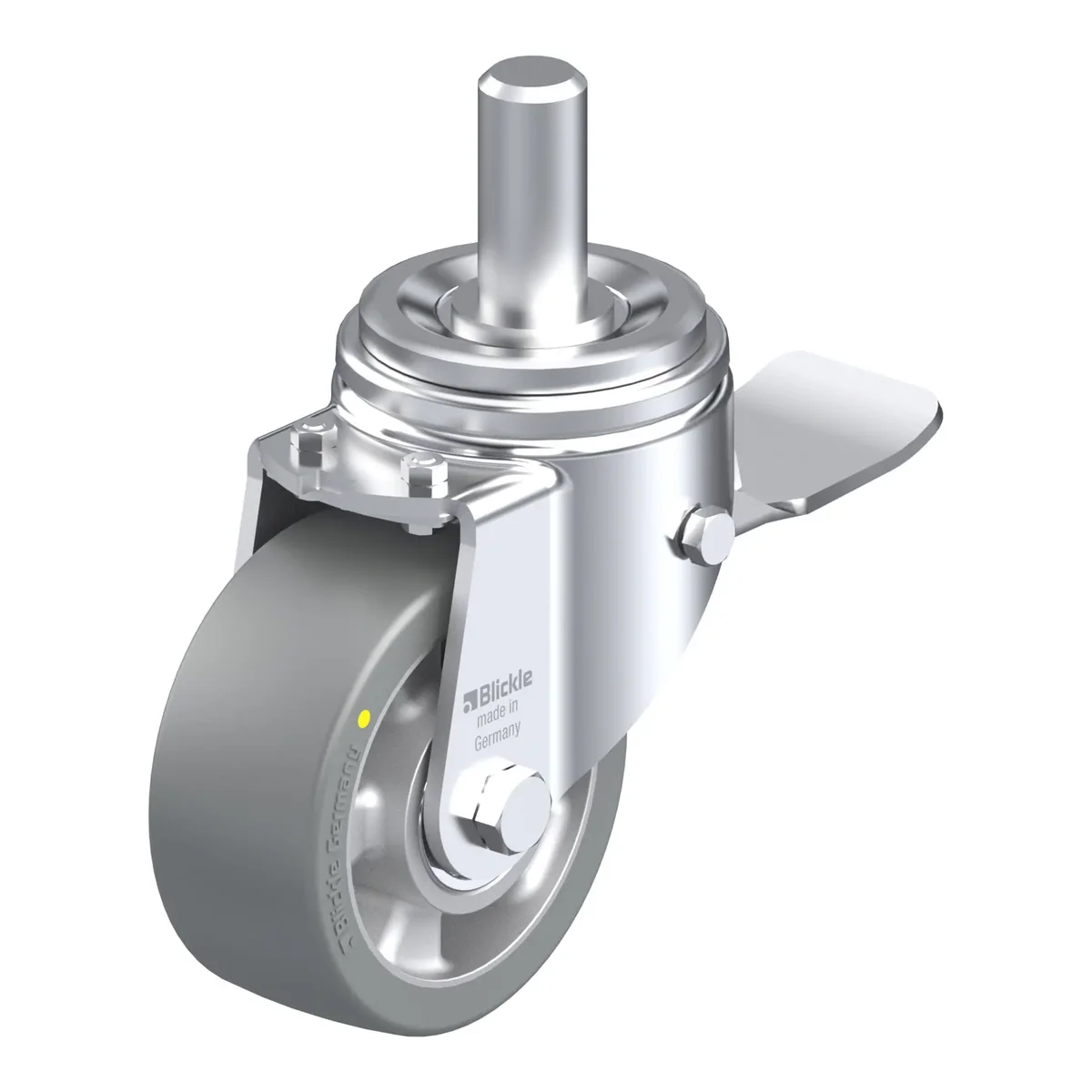

LHZ-ALTH 127K-ST-AS – okretni točkić Blickle

Šifra 852527

LHZ-ALTH 127K-ST-AS

Okretni točkić, Blickle, Made in Germany

Ukratko: LHZ-ALTH 127K-ST-AS je okretni točkić Blickle promjera 125 mm, širine 54 mm, nosivosti 750 kg pri 4 km/h (statički 1875 kg). Ukupna visina je 170 mm. Cijena je 326.73 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with stem fitting, with brake system 'stop-top', heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre, antistatic

326.73 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla852527
EAN4047526193768
Promjer točka125 mm
Širina točka54 mm
Ukupna visina170 mm
Nosivost pri 4 km/h750 kg
Statička nosivost1875 kg
Offset57 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • very strong, welded steel plug-in stem, bolted and secured
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour grey, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
  • electrical conductivity (ohmic resistance) ≤ 107Ω
