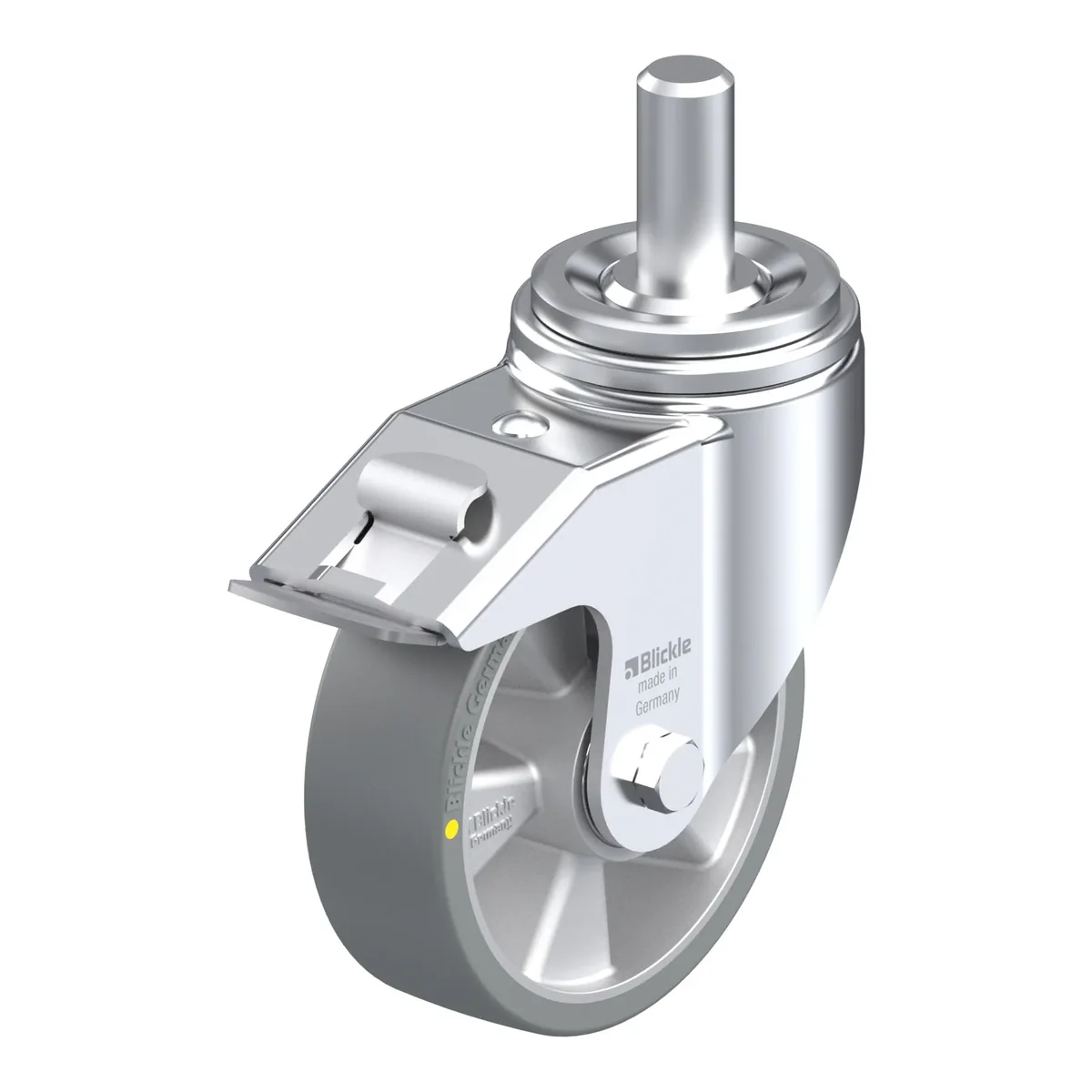

LHZ-ALTH 160K-FI-AS – okretni točkić Blickle

Šifra 852529

LHZ-ALTH 160K-FI-AS

Okretni točkić, Blickle, Made in Germany

Ukratko: LHZ-ALTH 160K-FI-AS je okretni točkić Blickle promjera 160 mm, širine 50 mm, nosivosti 750 kg pri 4 km/h (statički 1875 kg). Ukupna visina je 202 mm. Cijena je 329.65 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with stem fitting, with brake system 'stop-fix', heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre, antistatic

329.65 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla852529
EAN4047526193799
Promjer točka160 mm
Širina točka50 mm
Ukupna visina202 mm
Nosivost pri 4 km/h750 kg
Statička nosivost1875 kg
Offset56 mm
Ne ostavlja tragoveda
ESD zaštitada

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • very strong, welded steel plug-in stem, bolted and secured
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour grey, non-marking, non-staining
  • wheel centre: die-cast aluminium, colour silver grey

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
  • electrical conductivity (ohmic resistance) ≤ 107Ω
