Šifra 603316
LIR-VKHT 100G

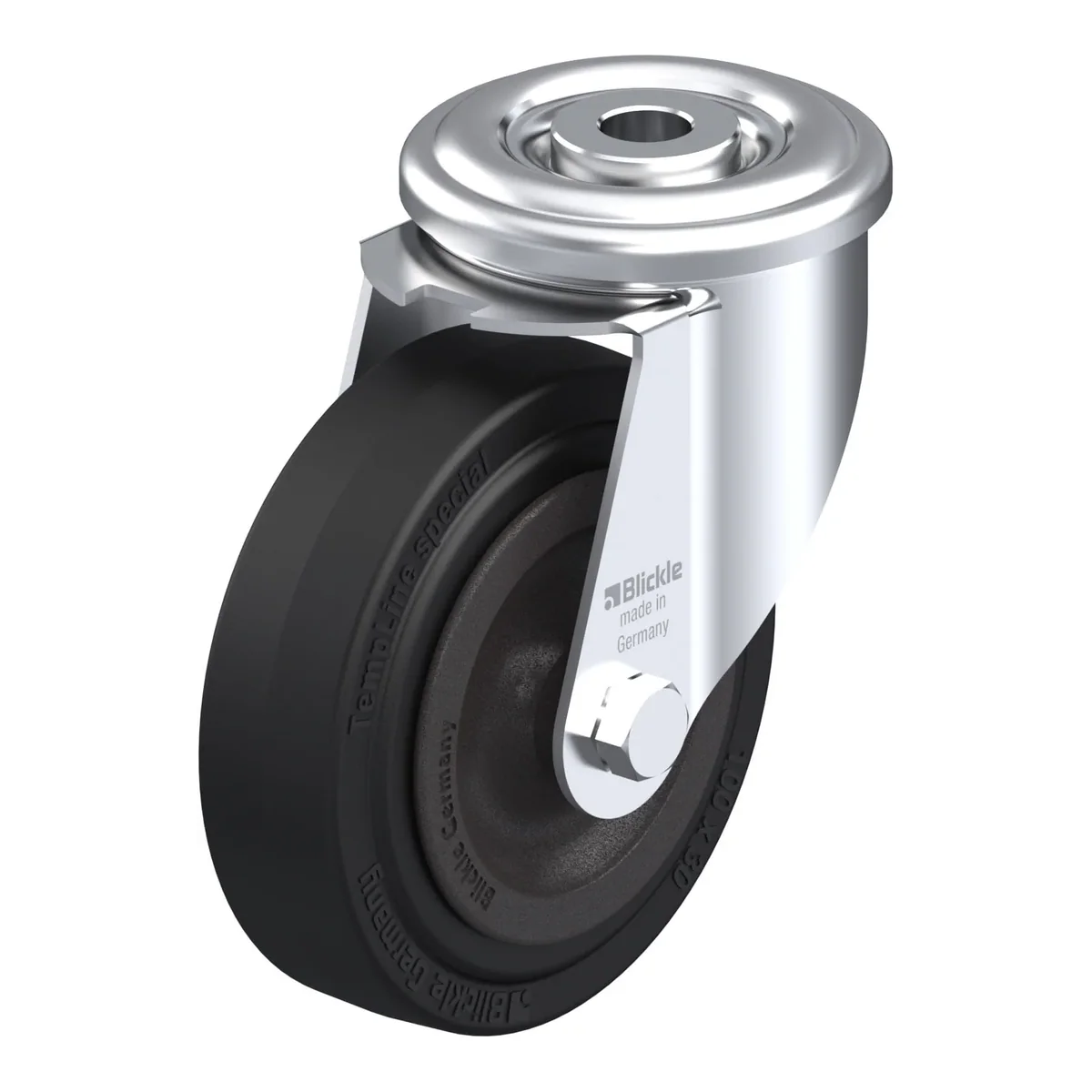

Okretni točkić, Blickle, Made in Germany
Ukratko: LIR-VKHT 100G je okretni točkić Blickle promjera 100 mm, širine 30 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 125 mm. Cijena je 113.93 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, heat-resistant, Blickle TempLine® wheel Special, with solid rubber tyres, with synthetic rim, heat-resistant
113.93 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 603316 |
|---|---|
| EAN | 4047526603311 |
| Promjer točka | 100 mm |
| Širina točka | 30 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 100 kg |
| Statička nosivost | 250 kg |
| Offset | 36 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
- double ball bearing in the swivel head
- strong central kingpin
- smooth rolling characteristic and low wear, increased service life
- swivel head play is set specifically for high-temperature applications
- highly heat-resistant grease
Točak
- tyre: highly heat-resistant solid rubber, hardness 85 Shore A, colour black
- rim: highly heat-resistant nylon 6, impact resistant, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -30 °C to +260 °C
- oven temperature temporarily up to +300 °C, wheel temperature must not exceed +260 °C
- tyre flattening recovers when in motion under load
