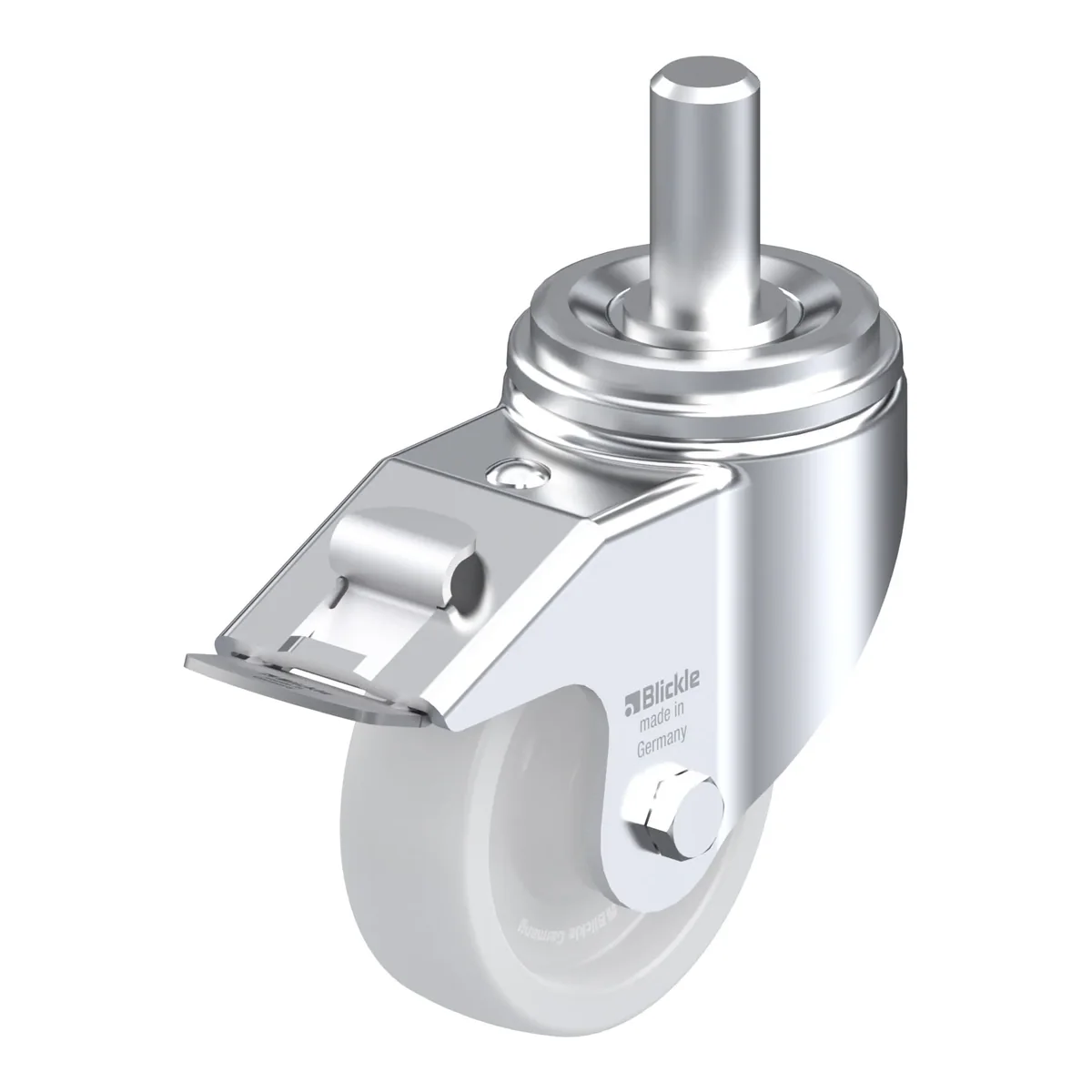

LHZ-SPO 127G-FI – okretni točkić Blickle

Šifra 754662

LHZ-SPO 127G-FI

Okretni točkić, Blickle, Made in Germany

Ukratko: LHZ-SPO 127G-FI je okretni točkić Blickle promjera 125 mm, širine 50 mm, nosivosti 750 kg pri 4 km/h (statički 1875 kg). Ukupna visina je 170 mm. Radi na temperaturi od -25 °C do 80 °C. Cijena je 254.11 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with stem fitting, with brake system 'stop-fix', nylon heavy duty wheel

254.11 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla754662
EAN4047526083168
Promjer točka125 mm
Širina točka50 mm
Ukupna visina170 mm
Nosivost pri 4 km/h750 kg
Statička nosivost1875 kg
Offset58 mm
Tvrdoća gazišta70 Shore A
Radna temperatura-25 °C do 80 °C
Težina3.4 kg
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • very strong, welded steel plug-in stem, bolted and secured
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
