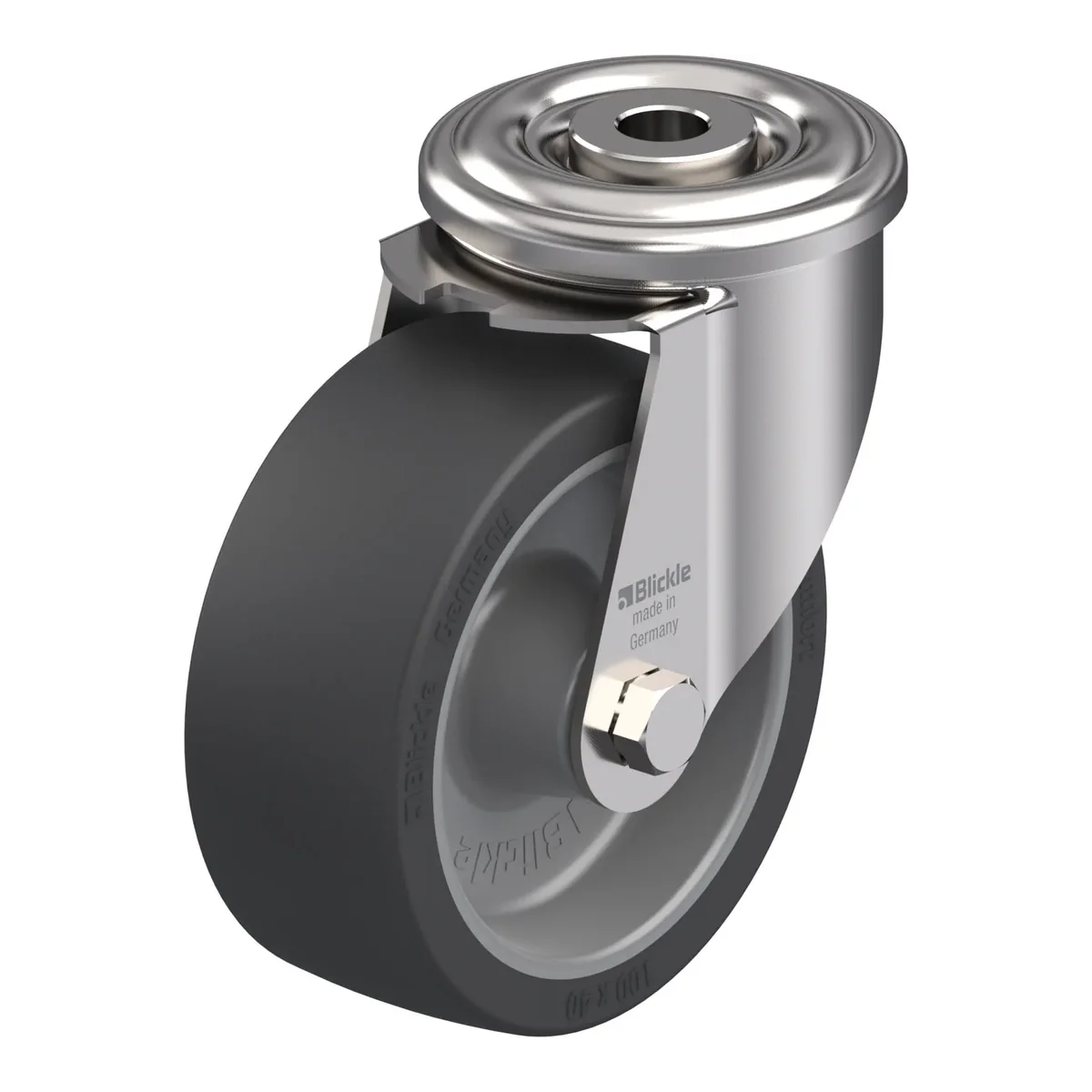

LIXR-POSI 100G-OF – okretni točkić Blickle

Šifra 746542

LIXR-POSI 100G-OF

Okretni točkić, Blickle, Made in Germany

Ukratko: LIXR-POSI 100G-OF je okretni točkić Blickle promjera 100 mm, širine 40 mm, nosivosti 100 kg pri 4 km/h (statički 250 kg). Ukupna visina je 125 mm. Radi na temperaturi od -25 °C do 250 °C. Cijena je 128.66 KM s PDV-om.

Stainless steel swivel castor, with bolt hole fitting, heat-resistant, Blickle TempLine® Comfort wheel, with silicone rubber tread, with synthetic wheel centre, heat-resistant

128.66 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla746542
EAN4047526110697
Promjer točka100 mm
Širina točka40 mm
Ukupna visina125 mm
Nosivost pri 4 km/h100 kg
Statička nosivost250 kg
Offset36 mm
Tvrdoća gazišta75 Shore A
Radna temperatura-25 °C do 250 °C
Težina0.7 kg
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • strong central kingpin
  • smooth rolling characteristic and low wear, increased service life
  • swivel head play is set specifically for high-temperature applications
  • grease-free as standard (“-OF”)
  • all parts including axle material are corrosion-resistant

Točak

  • tread: highly heat-resistant silicone rubber, hardness 75 Shore A, colour black
  • wheel centre: highly heat-resistant thermoplastic, impact resistant, colour dark grey

Dodatne karakteristike

  • very high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +250 °C
  • oven temperature temporarily up to +300 °C, wheel temperature must not exceed +250 °C
  • suitable for autoclaves
