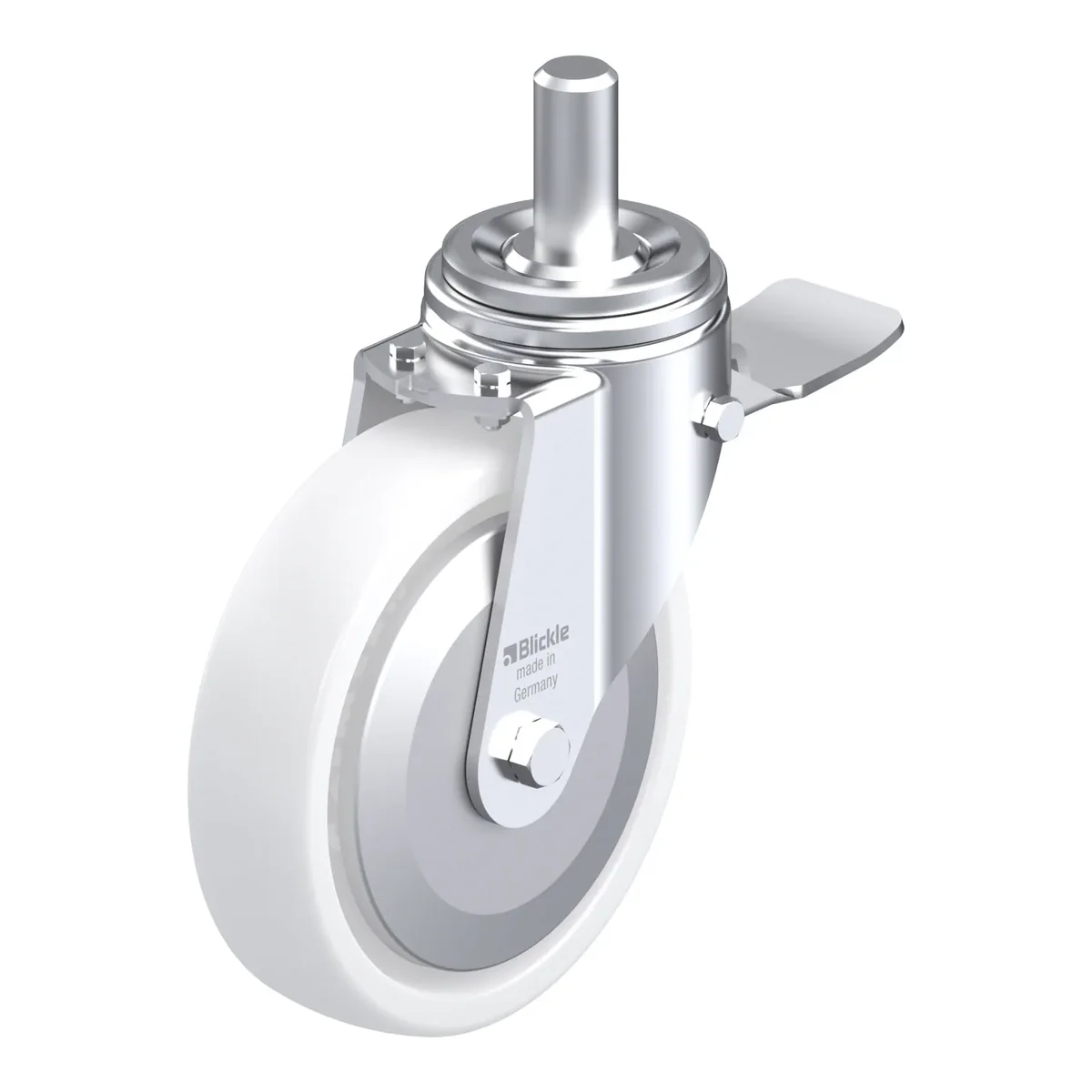

LHZ-SPO 201G-ST-FA – okretni točkić Blickle

Šifra 852966

LHZ-SPO 201G-ST-FA

Okretni točkić, Blickle, Made in Germany

Ukratko: LHZ-SPO 201G-ST-FA je okretni točkić Blickle promjera 200 mm, širine 50 mm, nosivosti 900 kg pri 4 km/h (statički 2250 kg). Ukupna visina je 245 mm. Cijena je 304.90 KM s PDV-om.

Pressed steel swivel castor, heavy duty design, with stem fitting, with brake system 'stop-top', nylon heavy duty wheel, with steel thread guard

304.90 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla852966
EAN4047526199463
Promjer točka200 mm
Širina točka50 mm
Ukupna visina245 mm
Nosivost pri 4 km/h900 kg
Statička nosivost2250 kg
Offset67 mm
Ne ostavlja tragoveda

Nosač

  • strong pressed steel, zinc-plated, blue-passivated, Cr6-free
  • heavy fork and top plate
  • double ball bearing in the swivel head
  • very strong, welded steel plug-in stem, bolted and secured
  • particularly resistant to shocks and impact due tofour specially-shaped, hardened bearing seats

Točak

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
