Šifra 615724
LIR-PHN 125IK

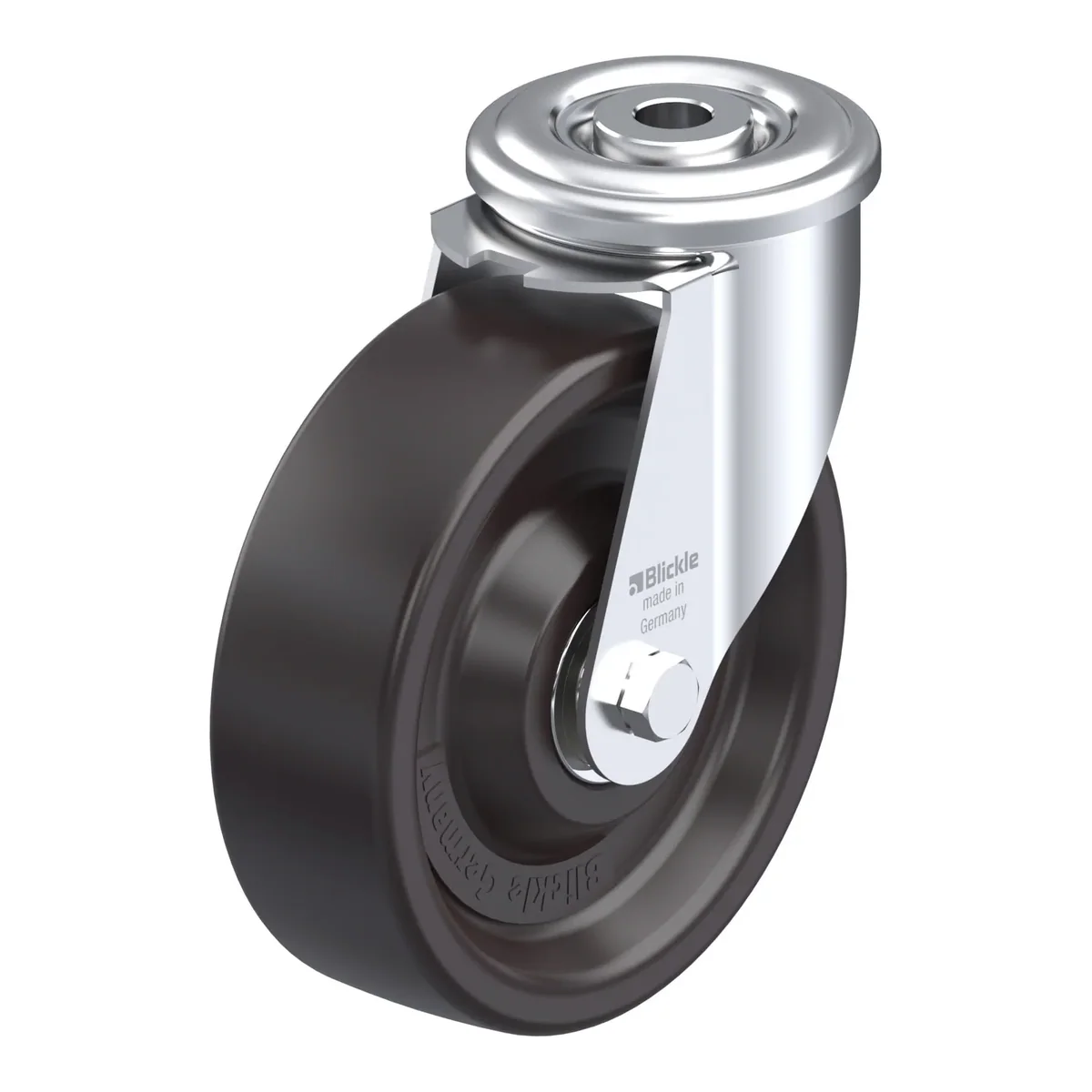

Okretni točkić, Blickle, Made in Germany
Ukratko: LIR-PHN 125IK je okretni točkić Blickle promjera 125 mm, širine 40 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 150 mm. Cijena je 204.61 KM s PDV-om.
Pressed steel swivel castor, with bolt hole, heat-resistant, Blickle TempLine® Classic thermoset wheel, heat-resistant
204.61 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 615724 |
|---|---|
| EAN | 4047526615727 |
| Promjer točka | 125 mm |
| Širina točka | 40 mm |
| Ukupna visina | 150 mm |
| Nosivost pri 4 km/h | 150 kg |
| Statička nosivost | 375 kg |
| Offset | 38 mm |
Nosač
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- passivation may be altered slightly in high temperatures, corrosion protection will remain unaffected
- double ball bearing in the swivel head
- strong central kingpin
- smooth rolling characteristic and low wear, increased service life
- swivel head play is set specifically for high-temperature applications
- highly heat-resistant grease
Točak
- phenolic resin, hardness 90 Shore D, colour black
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -30 °C to +260 °C
- wheels are only conditionally suitable for uneven floors and crossing thresholds
