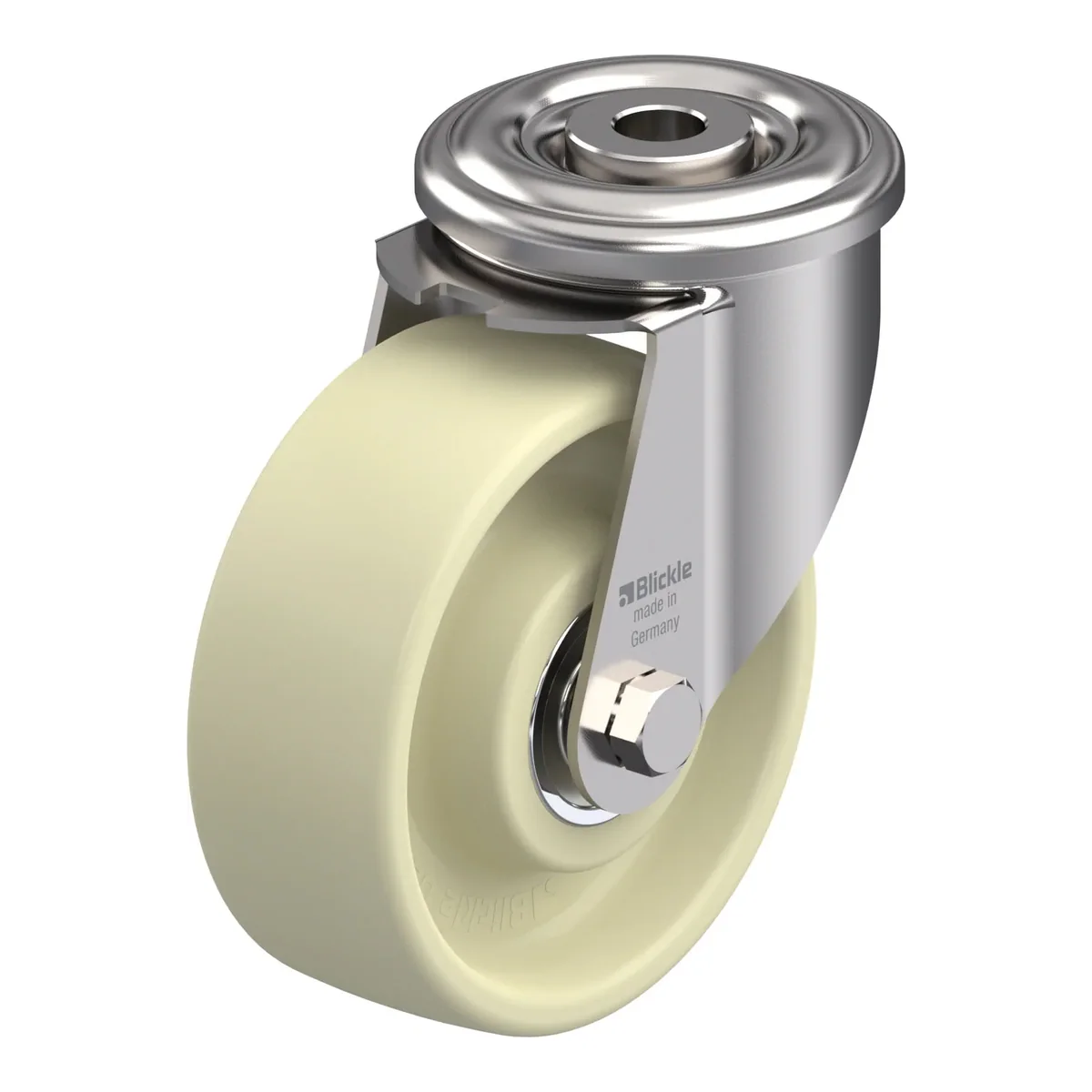

LIXR-POH 102HXK – okretni točkić Blickle

Šifra 940392

LIXR-POH 102HXK

Okretni točkić, Blickle, Made in Germany

Ukratko: LIXR-POH 102HXK je okretni točkić Blickle promjera 100 mm, širine 38 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 125 mm. Cijena je 146.84 KM s PDV-om.

Stainless steel swivel castor, with bolt hole fitting, heat-resistant, nylon wheel

146.84 KM

Cijena s PDV-om. Dostava širom Bosne i Hercegovine.

Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.

Tehnički podaci

Šifra artikla940392
EAN4047526412401
Promjer točka100 mm
Širina točka38 mm
Ukupna visina125 mm
Nosivost pri 4 km/h150 kg
Statička nosivost375 kg
Offset36 mm
Ne ostavlja tragoveda
Otporan na korozijuda

Nosač

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • double ball bearing in the swivel head
  • strong central kingpin
  • smooth rolling characteristic and low wear, increased service life
  • swivel head play is set specifically for high-temperature applications
  • highly heat-resistant grease
  • all parts including axle material are corrosion-resistant

Točak

  • highly heat-resistant nylon, impact resistant, hardness 85 Shore D, colour natural

Dodatne karakteristike

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +170 °C
  • oven temperature temporarily up to +200 °C, wheel temperature must not exceed +170 °C
  • long-term use in high temperatures may cause the colour to change, but will not affect load capacity
