Šifra 922843
LIXR-POH 100G-FI-OF

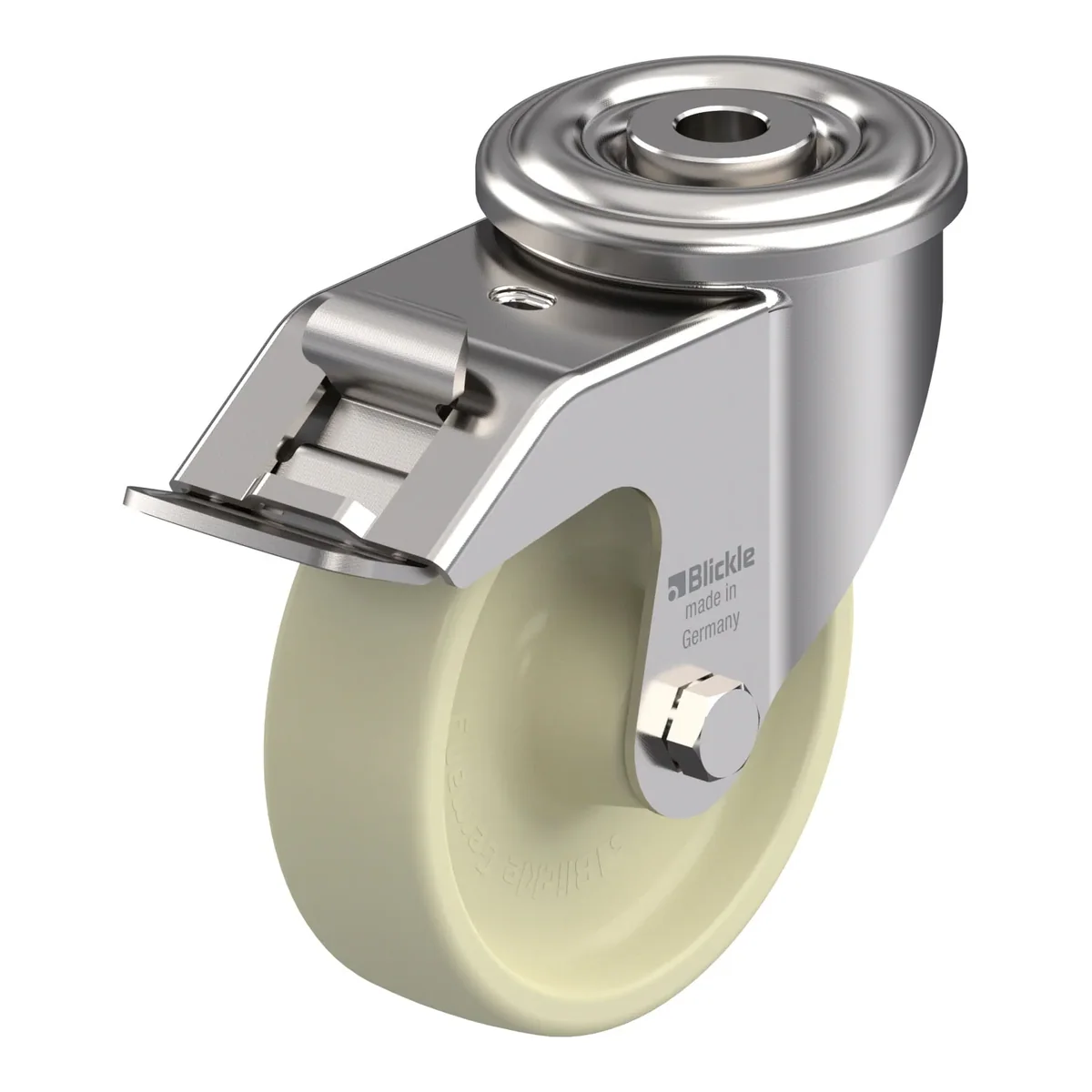

Okretni točkić, Blickle, Made in Germany
Ukratko: LIXR-POH 100G-FI-OF je okretni točkić Blickle promjera 100 mm, širine 30 mm, nosivosti 150 kg pri 4 km/h (statički 375 kg). Ukupna visina je 125 mm. Cijena je 130.93 KM s PDV-om.
Stainless steel swivel castor, with bolt hole fitting, heat-resistant, with brake system 'stop-fix', nylon wheel
130.93 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 922843 |
|---|---|
| EAN | 4047526381462 |
| Promjer točka | 100 mm |
| Širina točka | 30 mm |
| Ukupna visina | 125 mm |
| Nosivost pri 4 km/h | 150 kg |
| Statička nosivost | 375 kg |
| Offset | 35 mm |
| Ne ostavlja tragove | da |
| Otporan na koroziju | da |
Nosač
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- double ball bearing in the swivel head
- strong central kingpin
- smooth rolling characteristic and low wear, increased service life
- swivel head play is set specifically for high-temperature applications
- grease-free as standard (“-OF”)
- all parts including axle material are corrosion-resistant
Točak
- highly heat-resistant nylon, impact resistant, hardness 85 Shore D, colour natural
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +170 °C
- oven temperature temporarily up to +200 °C, wheel temperature must not exceed +170 °C
- long-term use in high temperatures may cause the colour to change, but will not affect load capacity
