Šifra 856391

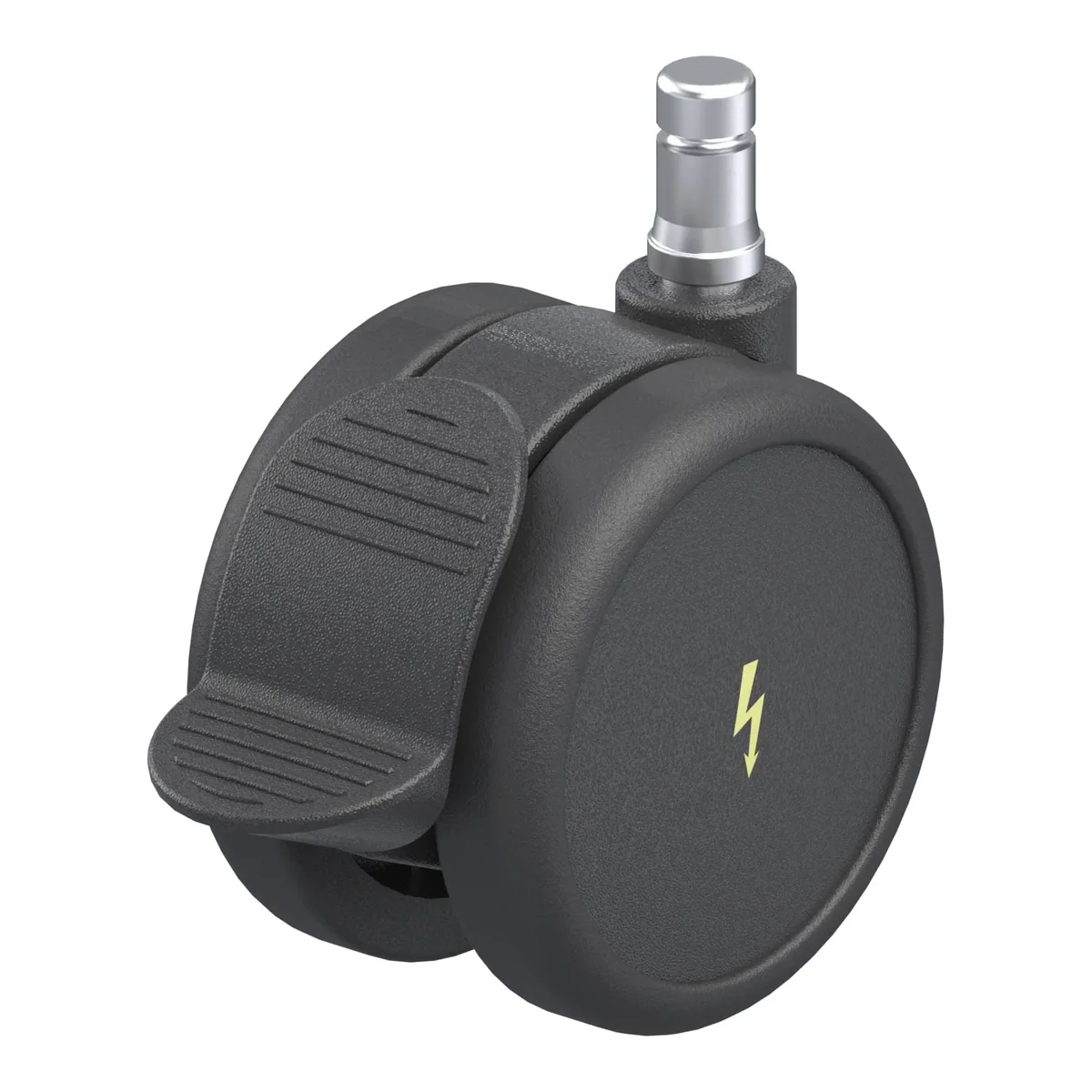

LKDB-PUA 75G-RA-ELS-ES
Dvostruki točkić, Blickle, Made in Germany
Ukratko: LKDB-PUA 75G-RA-ELS-ES je dvostruki točkić Blickle promjera 75 mm, širine 15 mm, nosivosti 75 kg pri 4 km/h (statički 187.5 kg). Ukupna visina je 80 mm. Cijena je 53.20 KM s PDV-om.
Synthetic twin wheel swivel castor, with plug-in pin, with brake system 'Radstop', wheel, with thermoplastic polyurethane tread, with nylon wheel centre, electrically conductive, non-marking
53.20 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 856391 |
|---|---|
| EAN | 4047526212162 |
| Promjer točka | 75 mm |
| Širina točka | 15 mm |
| Ukupna visina | 80 mm |
| Nosivost pri 4 km/h | 75 kg |
| Statička nosivost | 187.5 kg |
| Offset | 24 mm |
| Ne ostavlja tragove | da |
Nosač
- high-quality nylon 6, impact resistant
- high-quality synthetic plain bore in the swivel head
- colour black RAL 9005
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 98 Shore A, colour black, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour black RAL 9005
Dodatne karakteristike
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +80 °C, reduced load capacity over +30 °C
