Šifra 617761

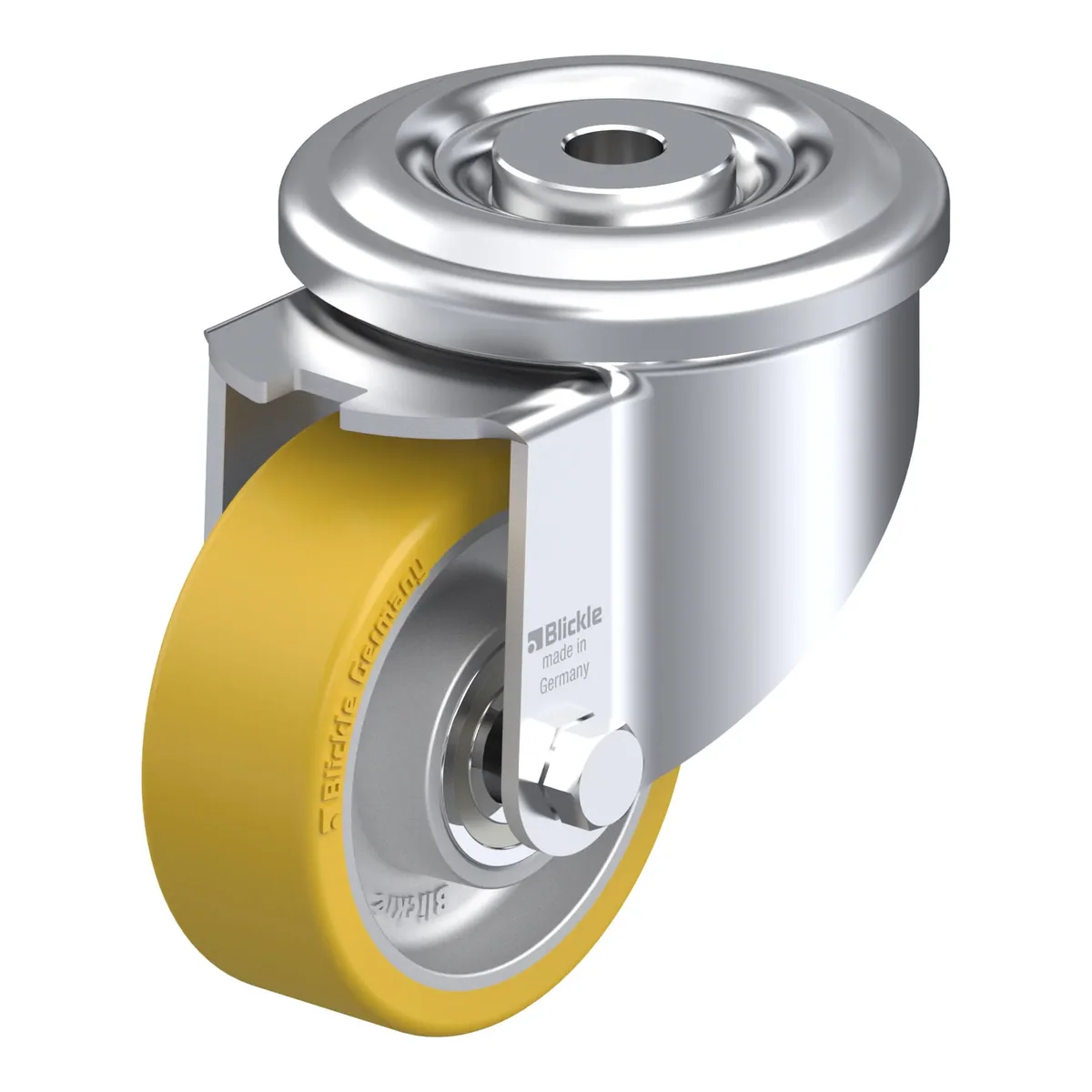

LKR-ALTH 80K
Okretni točkić, Blickle, Made in Germany
Ukratko: LKR-ALTH 80K je okretni točkić Blickle promjera 80 mm, širine 30 mm, nosivosti 200 kg pri 4 km/h (statički 500 kg). Ukupna visina je 110 mm. Cijena je 101.52 KM s PDV-om.
Pressed steel swivel castor, medium heavy duty brackets, with bolt hole fitting, heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre
101.52 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 617761 |
|---|---|
| EAN | 4047526617769 |
| Promjer točka | 80 mm |
| Širina točka | 30 mm |
| Ukupna visina | 110 mm |
| Nosivost pri 4 km/h | 200 kg |
| Statička nosivost | 500 kg |
| Offset | 40 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour yellow, non-marking, non-staining
- wheel centre: die-cast aluminium, colour silver grey
Dodatne karakteristike
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
