Šifra 738343
LKR-POTH 100KA-FA

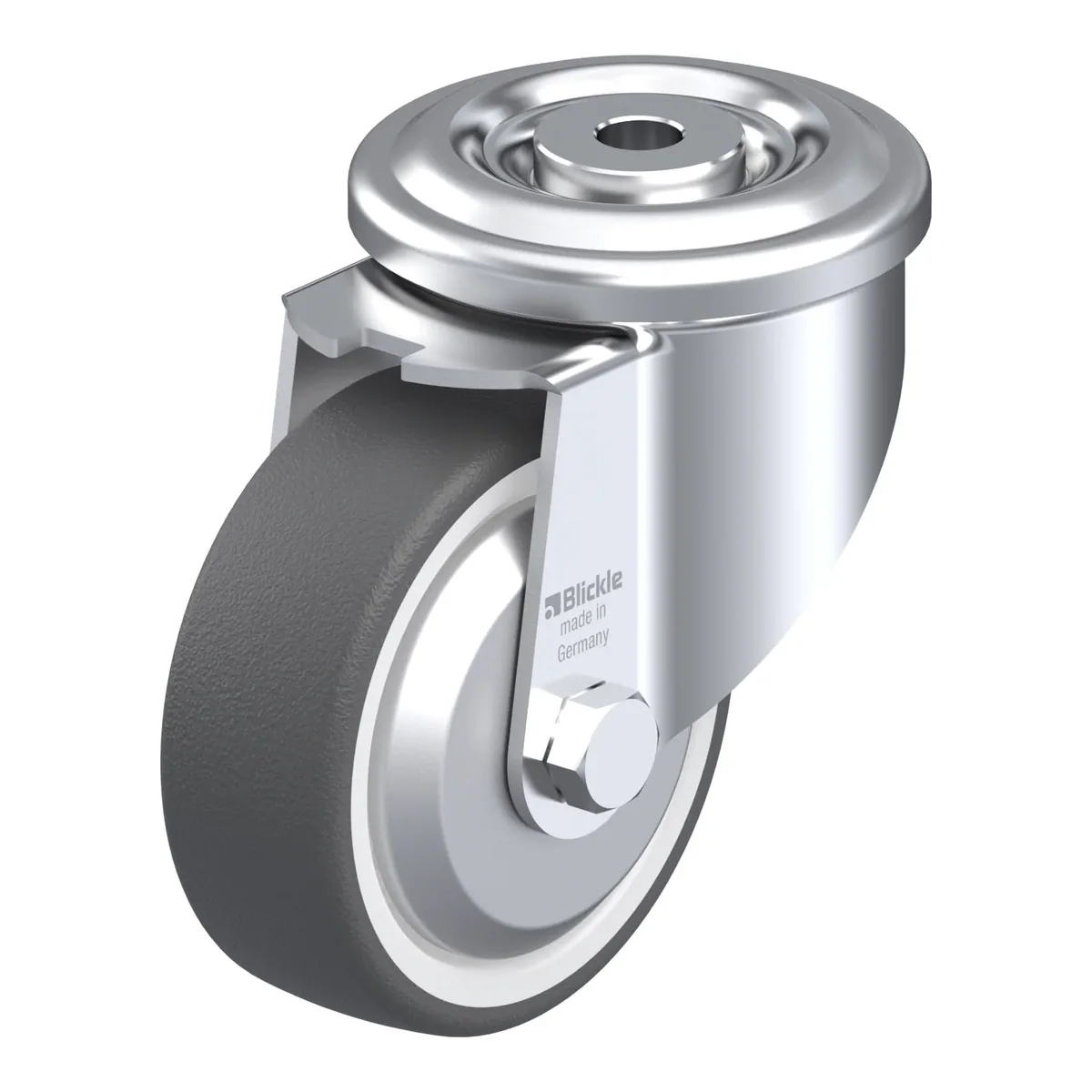

Okretni točkić, Blickle, Made in Germany
Ukratko: LKR-POTH 100KA-FA je okretni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 130 mm. Cijena je 86.83 KM s PDV-om.
Pressed steel swivel castor, medium heavy duty brackets, with bolt hole fitting, wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with synthetic thread guard, small, with steel thr ead guard
86.83 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 738343 |
|---|---|
| EAN | 4047526030803 |
| Promjer točka | 100 mm |
| Širina točka | 35 mm |
| Ukupna visina | 130 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Offset | 45 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
Dodatne karakteristike
- with synthetic thread guard, small
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
