Šifra 603217
LKR-POTH 100KA-FI

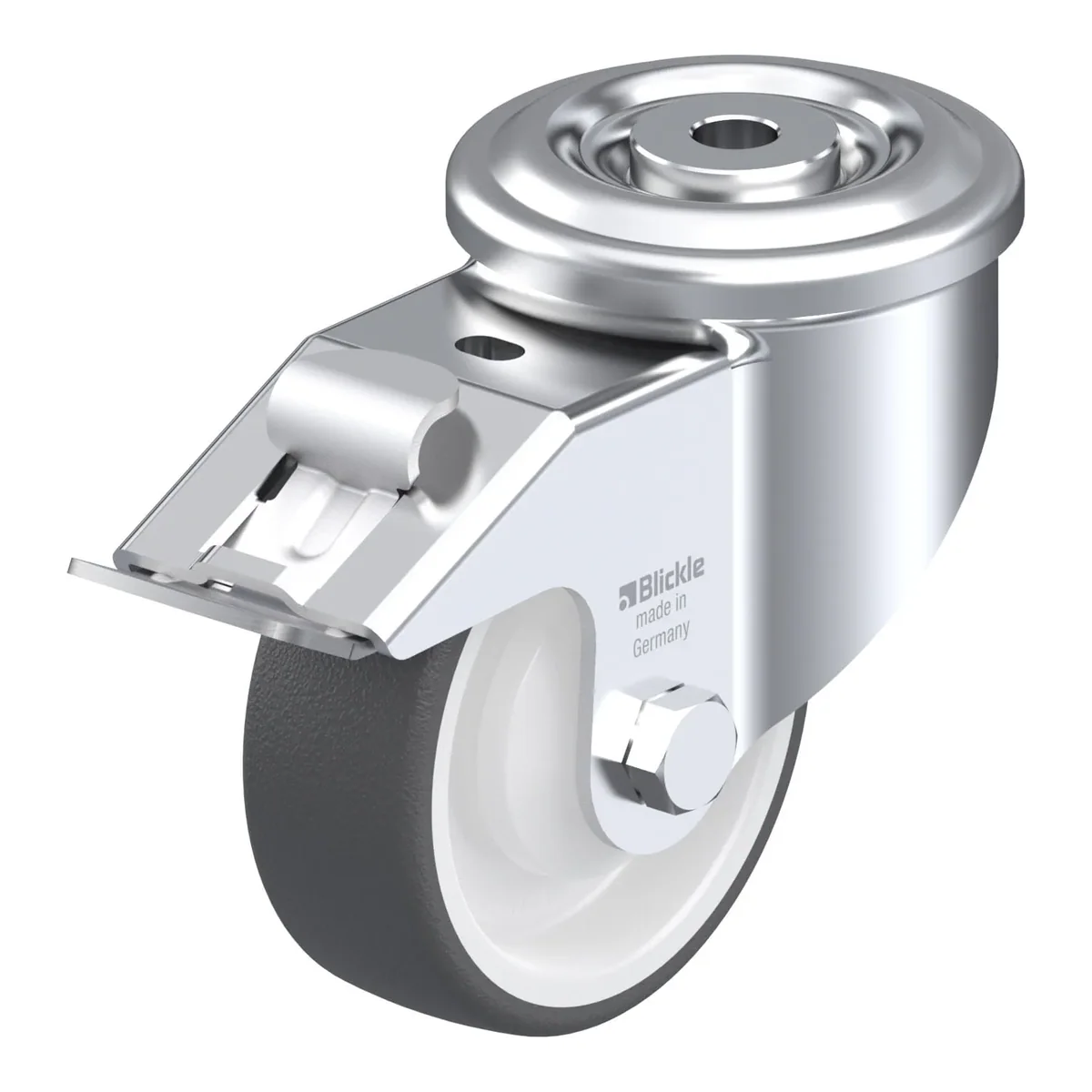

Okretni točkić, Blickle, Made in Germany
Ukratko: LKR-POTH 100KA-FI je okretni točkić Blickle promjera 100 mm, širine 35 mm, nosivosti 300 kg pri 4 km/h (statički 750 kg). Ukupna visina je 130 mm. Cijena je 90.82 KM s PDV-om.
Pressed steel swivel castor, medium heavy duty brackets, with bolt hole fitting, with brake system 'stop-fix', wheel, with thermoplastic polyurethane tread, with heavy duty nylon wheel centre, with synthetic thread guard, small
90.82 KM
Cijena s PDV-om. Dostava širom Bosne i Hercegovine.
Veće količine: posebna ponuda na upit, +387 62 924 140, info@mhtrade.co.ba.
Tehnički podaci
| Šifra artikla | 603217 |
|---|---|
| EAN | 4047526603212 |
| Promjer točka | 100 mm |
| Širina točka | 35 mm |
| Ukupna visina | 130 mm |
| Nosivost pri 4 km/h | 300 kg |
| Statička nosivost | 750 kg |
| Offset | 47 mm |
| Ne ostavlja tragove | da |
Nosač
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Točak
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
Dodatne karakteristike
- with synthetic thread guard, small
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
